LD-MT-18 AC 220V Adjustable Microwave Radar Motion Sensor

LD-MT-18 AC 220V Adjustable Microwave Radar Motion Sensor

The LD-MT-18 AC 220V Adjustable Microwave Radar Motion Sensor detects human movement with high precision and automatically controls the lighting systems connected to the system.

Detection distance, light intensity, and delay time are adjustable.

Features

• Operating Voltage: 220-240VAC
• Load: Lamp 1200W / LED 500W
• Light Intensity: 10 - 2000 LUX
• Installation Height: 2.5-3.5m
• Detection Distance: 8m
• Detection Angle: 360°
• Delay Time: 8 seconds - 12 minutes

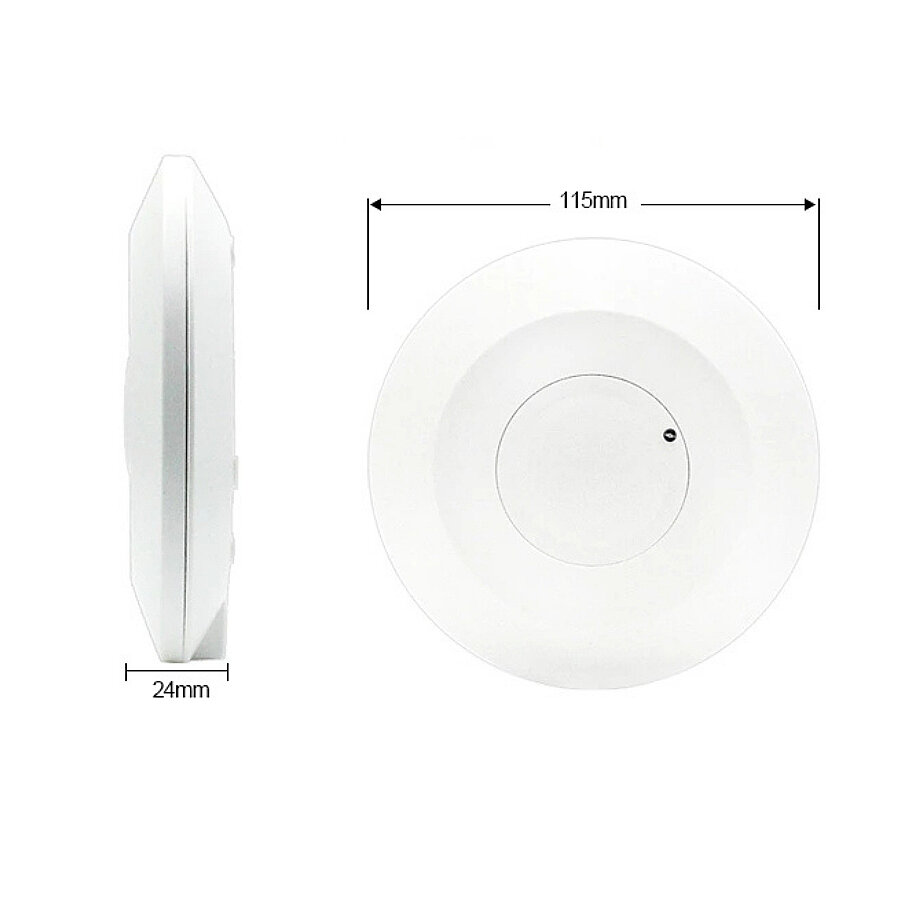

• Dimensions: 115x115x24mm

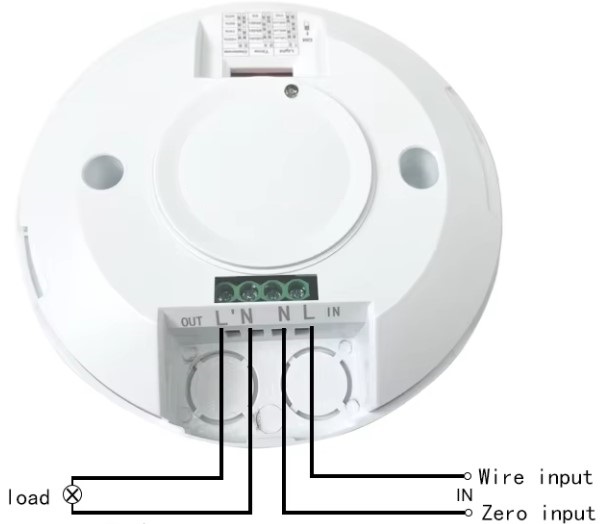

Connection Schematic

Installation Example

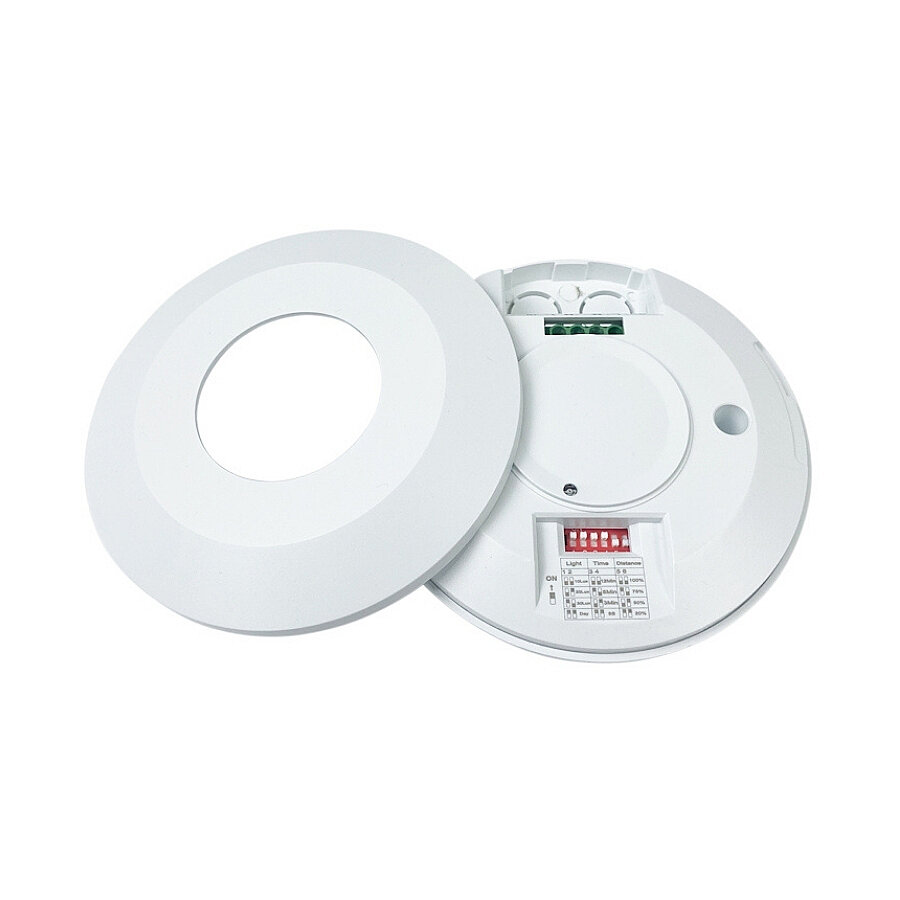

Adjustment Section

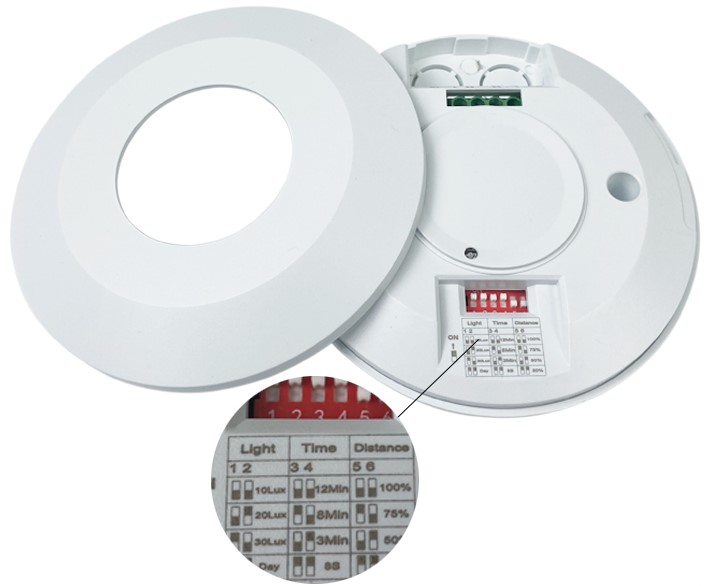

The product has a 6-position dip switch for adjusting light, time, and distance. Dip switches 1-2 adjust the light, 3-4 adjust the time, and 5-6 adjust the distance.

• Light Adjustment;
  • 10 LUX (1 ON - 2 ON)
  • 20 LUX (1 ON - 2 OFF)
  • 30 LUX (1 OFF - 2 ON)
  • Day (1 OFF - 2 OFF)
• Time Adjustment;
  • 12 Minutes (1 ON - 2 ON)
  • 8 Minutes (1 OFF - 2 ON)
  • 3 Minutes (1 ON - 2 OFF)
  • 8 Seconds (1 OFF - 2 OFF)
• Distance Setting;
  • 100% (1 ON - 2 ON)
  • 75% (1 OFF - 2 ON)
  • 50% (1 ON - 2 OFF)
  • 30% (1 OFF - 2 OFF)
