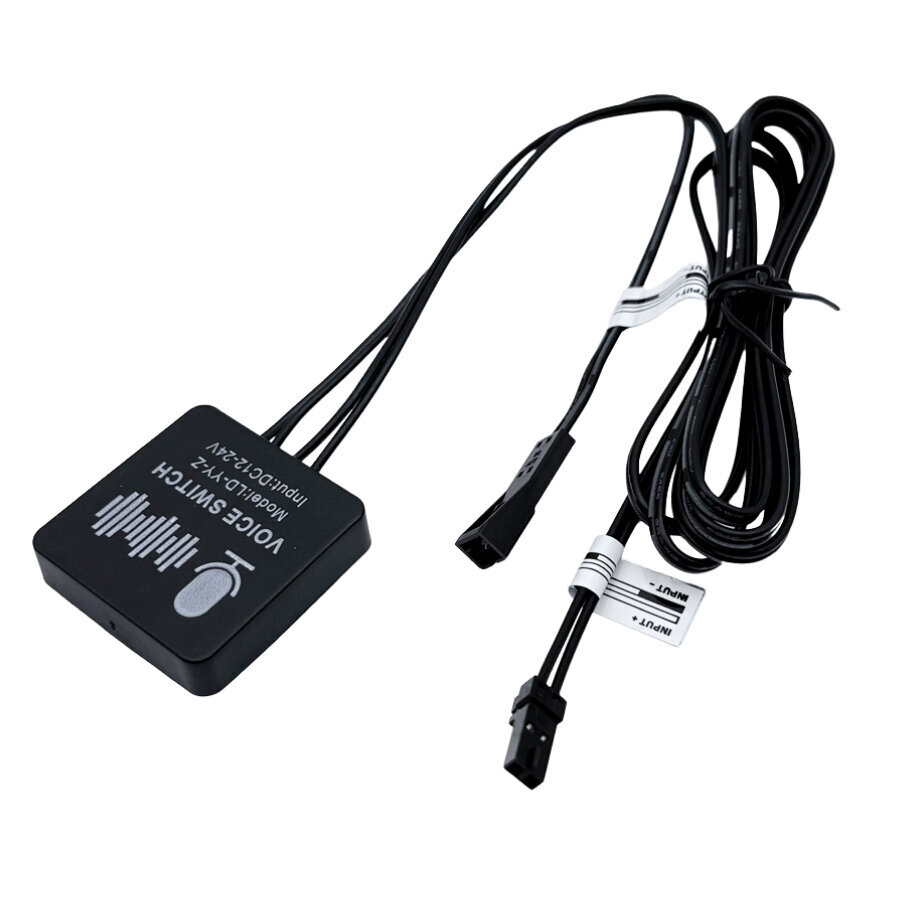

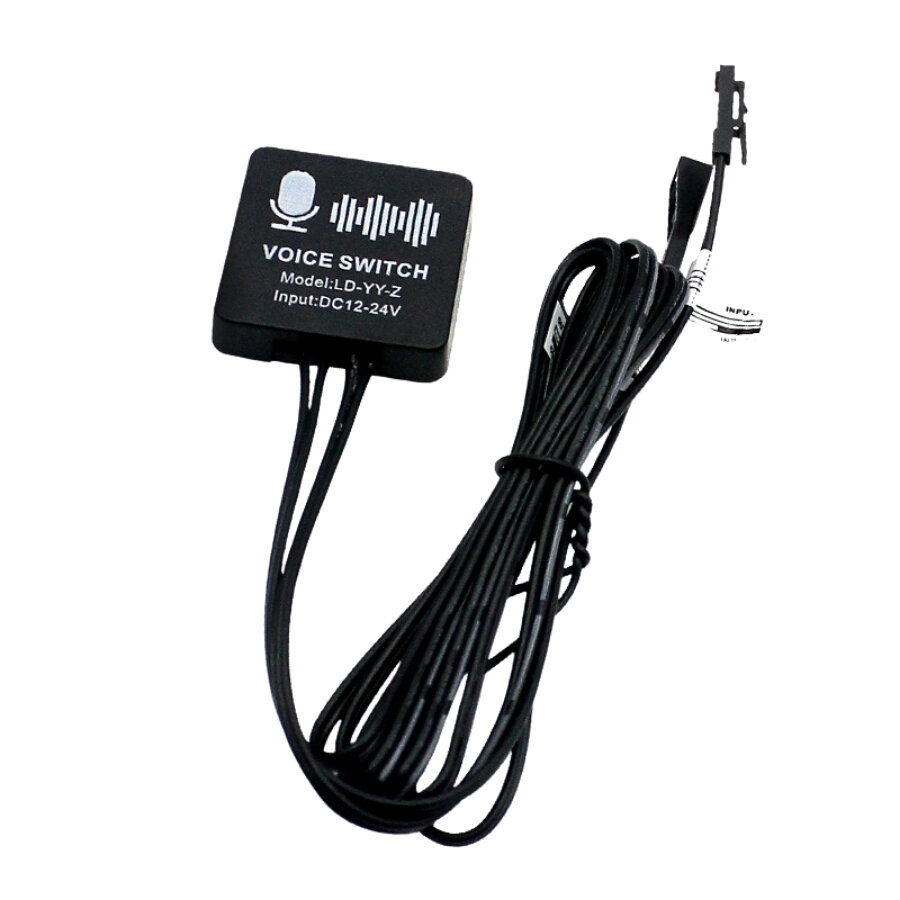

LD-YY-Z 12-24V Single Color Voice Controlled Cabinet Lighting Sensor
LD-YY-Z 12-24V Single Color Voice Controlled Cabinet Lighting Sensor
The LD-YY-Z 12-24V Single Color Voice Controlled Cabinet Lighting Sensor, designed for 12-24VDC LED lighting, allows you to turn the lights on and off with its sensor. It offers a practical and energy-saving solution for lighting inside wardrobes, kitchen cabinets, drawers, and furniture.
The light can be controlled with words learned from the voice detection sensor. To enter learning mode, the wake-up word must be spoken. The voice control language is English.
The wake-up word for the device is "Hi Light". When this word is spoken, the device turns its light on and off once. To enter learning mode, the "Learn command word" must be spoken. When in learning mode, the lights flash (continuously blink). During this time, you can teach the commands. You can teach commands such as "Turn on light, turn off light, fast flash mode" while in learning mode. When learning is complete, it stops flashing. Note: This product operates with 12-24VDC. It is absolutely not suitable for use with a direct connection to the mains (220V). If it is to be used with a mains connection, a special power conversion module must be purchased.
Technical Specifications
- Operating Voltage: 12-24VDC
- Suitable LED Voltage: 12-24VDC
- Power: 12V 60W / 24V 100W

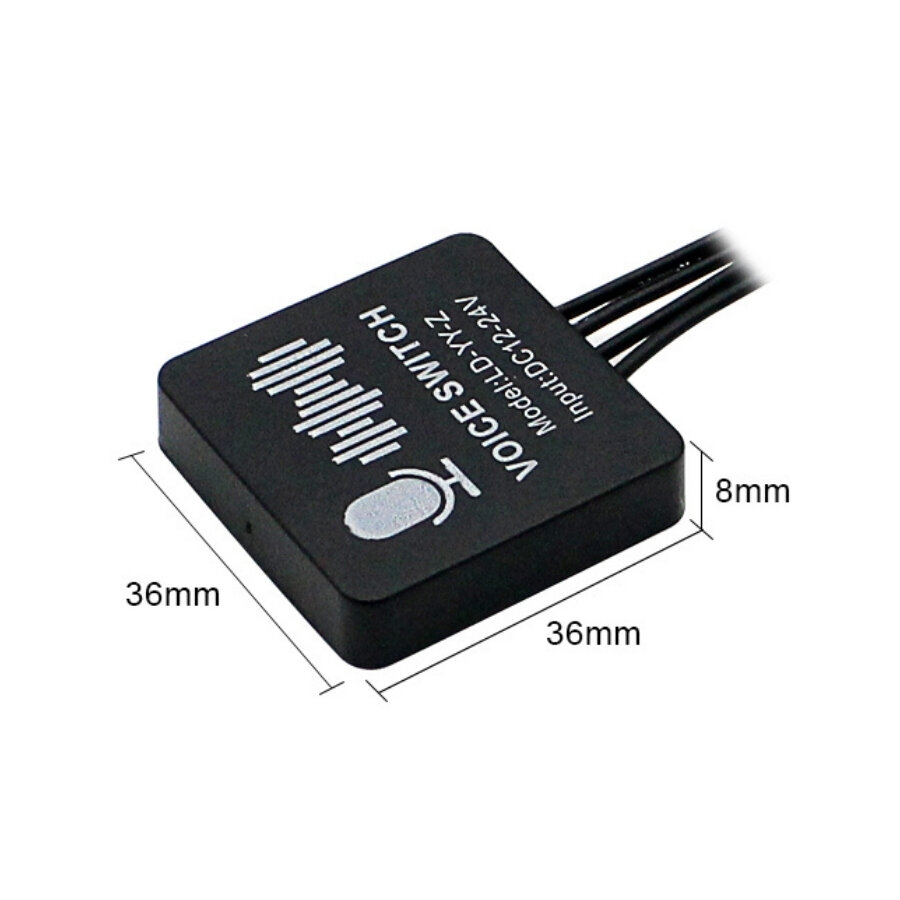

- Dimensions: 37x36x8mm
- Cable Length: 1.5m
- Sound Control Language: English
- Detection Mode: Sound Detection
- Detection Distance: Approximately 4 meters in a quiet environment
