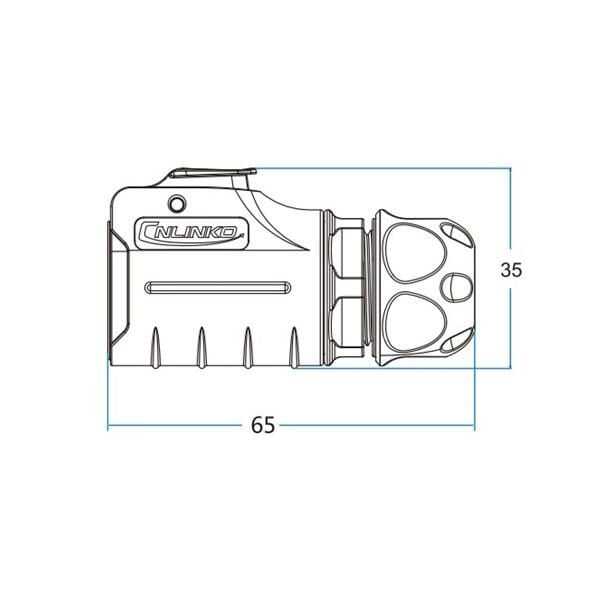

LP-20-C03PE-01-022 3-Pin Waterproof Connector - Male

It is a 3-pin male connector for power applications. Compatible with 12-14 AWG cable. The LP series is one of the best-selling series waterproof connectors made of high-performance plastics. Quick-plug plug design allows one-handed plugging/unplugging. The connection pins adopt gold plating technology, which can resist corrosion and is suitable for high-low temperatures. LP-20 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plugging and unplugging. Compact components, simple operation, fast and stable connection, meet the environmental protection requirements of international industrial equipment with IP67-rated outdoor waterproof performance.

Female connectors compatible with male connector:

Cable Connection Type Female Connector

Panel Type Female Connector

Flanged Panel Type Female Connector

Technical Specifications

Gold plated contacts for increased corrosion protection
PBT shell
High temperature and pressure resistance
IP65/67 rating when connected
Number of Pins: 3
Pin Diameter - 2.7 mm
Cable Connection - 12-14 AWG
Rated Current - 20 Amps
Operating Voltage - 500V AC
Contact Resistance - <1mOhm
Withstand Voltage - 2500V
Ingress Protection - IP65/67
Operating Temperature - -40 C - 80 C

Body Material - High Performance Plastic

Contact Material - Gold Plated Copper Alloy
Flammability Rating - UL94 -V0

LP-20 Waterproof Connector Datasheet
