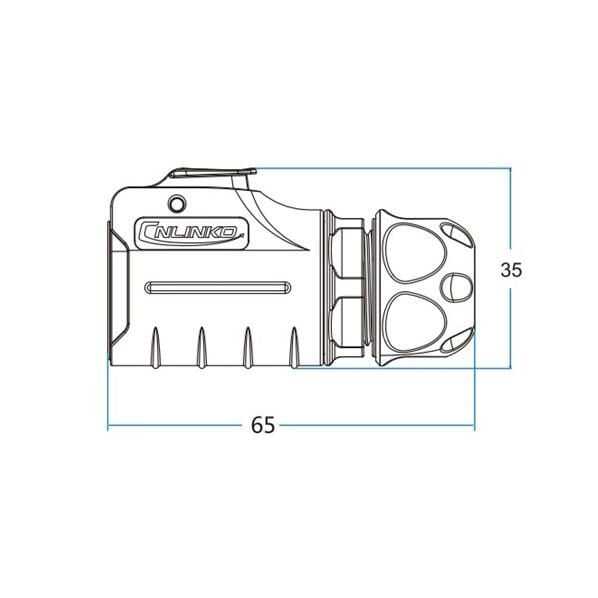

LP-20-C04PE-01-022 4-Pin Waterproof Connector - Male

LP-20-C04PE-01-022 4-Pin Waterproof Connector - Male

It is a 4-pin male connector for power applications. Compatible with 12-14 AWG cable. The LP series is one of the best-selling series waterproof connectors made of high-performance plastics. Quick-plug plug design allows one-handed plugging/unplugging. The connection pins adopt gold plating technology, which can resist corrosion and is suitable for high-low temperatures. LP-20 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plugging and unplugging. Compact components, simple operation, fast and stable connection, meet the environmental protection requirements of international industrial equipment with IP67-rated outdoor waterproof performance.

Technical Specifications

• Gold plated contacts for increased corrosion protection
• PBT shell
• High temperature and pressure resistance
• IP65/67 rating when connected
• Number of Pins: 4
• Pin Diameter - 2.7 mm
• Cable Connection - 12-14 AWG
• Rated Current - 20 Amps
• Operating Voltage - 500V AC
• Contact Resistance - <1mOhm
• Withstand Voltage - 2500V
• Ingress Protection - IP65/67
• Operating Temperature - -40 C - 80 C

• Contact Material - Gold Plated Copper Alloy
• Flammability Rating - UL94 -V0

LP-20 Waterproof Connector Datasheet
