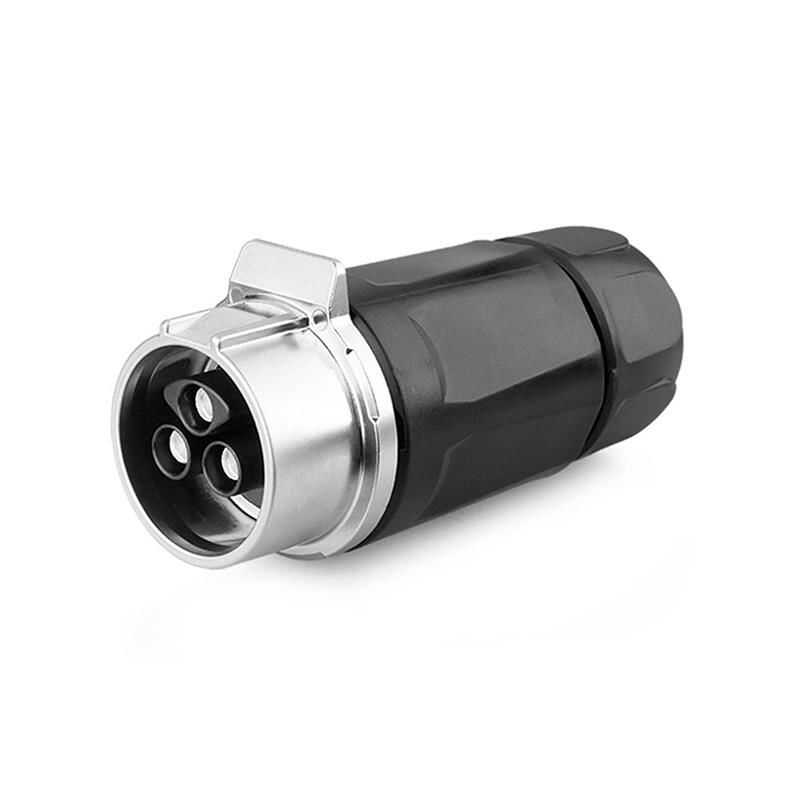

LP-28-J03PP-21-001 3-Pin Waterproof Connector - Female
LP series is the best selling waterproof made of high performance engineering plastics It is one of the connector series. Quick plug design allows one-handed plug/remove. It has gold plating technology that is resistant to corrosion and suitable for high and low temperatures. LP-28 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plug-in/disconnect. Compact components, simple operation, fast and stable connection, IP67-rated outdoor waterproof performance.
Technical Specifications
- Number of Pins: 3
- Rated Current: 35A
- Operating Voltage: 500V
- Cable Specification: 2.5mm~5mm/14-12AWG
- Line Diameter Range: 18mm~20mm
- Contact Resistance: < 5m Ohm
- Withstand Voltage (AC.V) 1 Minute: 2500 V
- Insulation Resistance: >500MOhm
- Protection Level: IP65/IP67
- Operating temperature:-40℃ ~80℃
