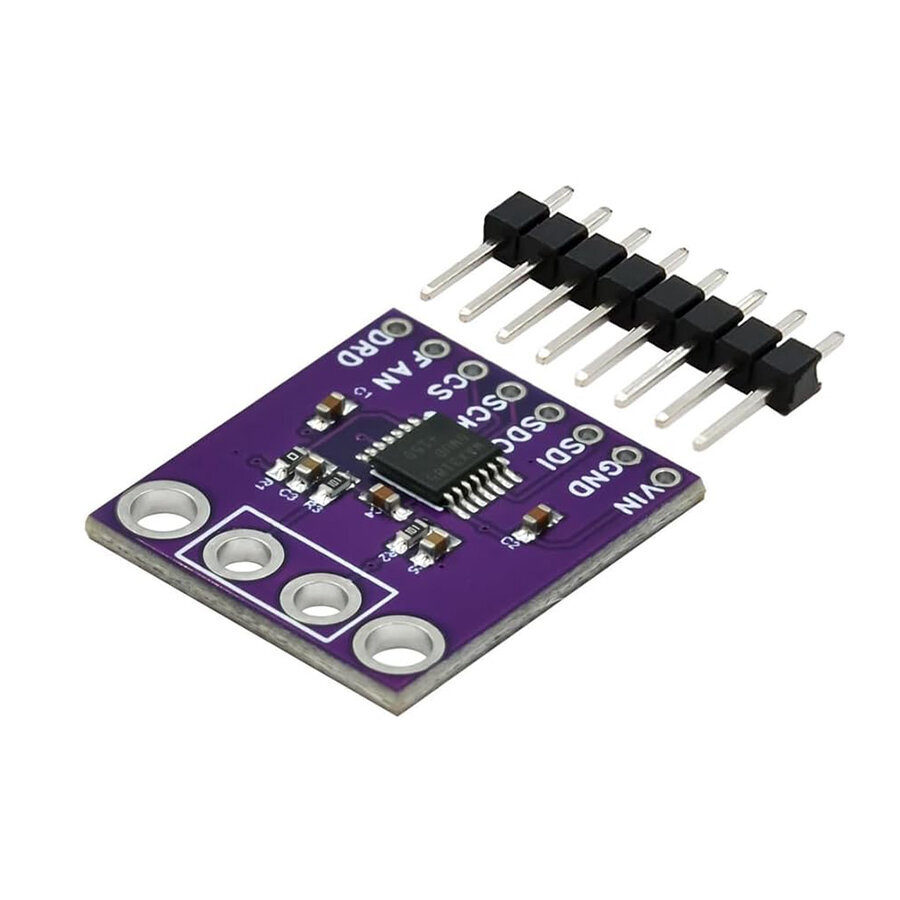

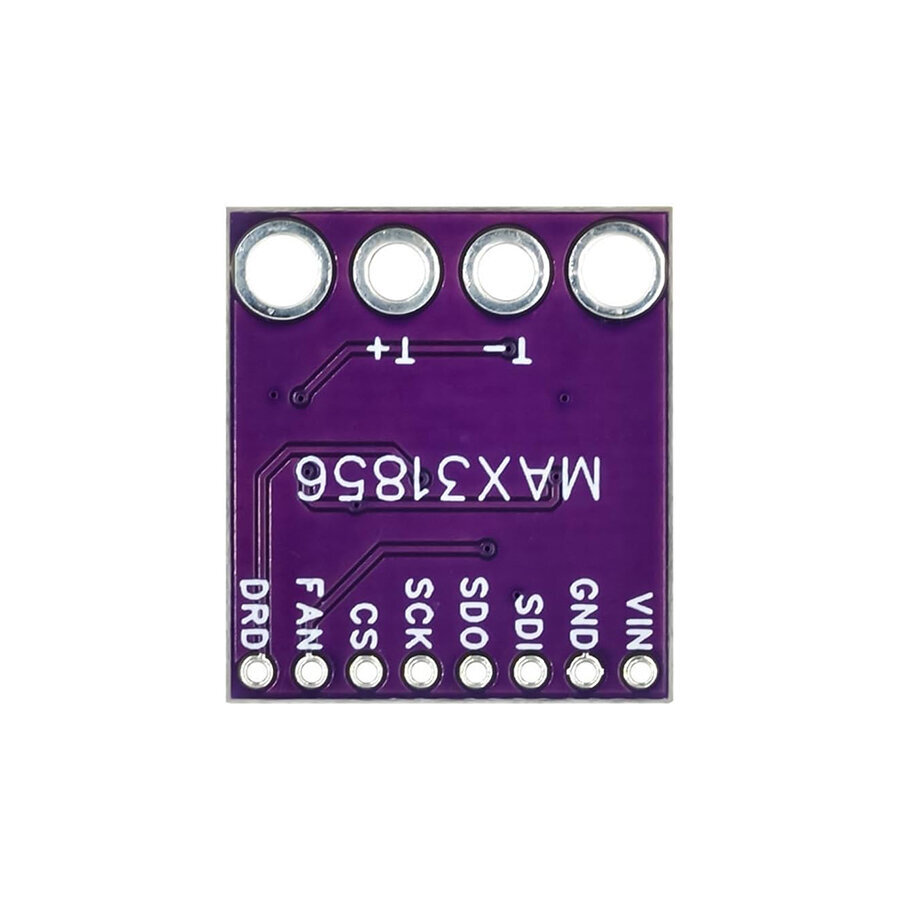

MAX31856 High Precision A/D Converter Thermocouple Module
The MAX31856 High Precision A/D Converter Thermocouple Module measures thermocouples with high precision and provides mV.Analog output and these signals cannot be detected by microcontrollers. This board converts the signals into high-precision digital data.
Compatible with all types of thermocouples (K, J, N, R, S, T, E, B).
It is compatible with development boards like Arduino and can be used within Raspberry Pi thanks to its SPI interface support.Features
- Supply Voltage: 3-3.6VDC
- Interface: SPI
- Resolution: 0.0078125°C (24-bit resolution)
- Thermocouple Compatibility: K, J, N, R, S, T, E, and B
- Provides High Accuracy Thermocouple Temperature Readings
- Automatic Linearity Correction for 8 Types of Thermocouples
- 0.15% (max, -20°C to +85°C) Full Scale and Linearity Error Thermocouple
- 19 Bit, 0.0078125 degree Thermocouple Temperature Resolution C
- Cold Junction Compensation Minimizes Internal Errors of System Components
- +0.7 degree C (max, -20°C to +85°C) Cold Junction Accuracy
- 45V Input Protection Ensures Robust System Performance
- Detects Open Thermocouples
- Low Temperature Fault Detection Over
- Noise Rejection Filtering Improves System Performance 50Hz/60Hz
- Size: 24x22mm
- TSSOP Package 14 Pin
