MAX6675 K-type Thermocouple Thermocouple Sensor

Thermocouple or thermocouple is a type of temperature sensor. It consists of two different conductive materials. If the two ends of these materials are joined (hot spot) and heated, tension is obtained at the other ends (cold spot). The value of this voltage depends on the type of material used and the amount of heating of the junction. Regardless of the hot spot and cold spot temperature distribution, the voltage produced is proportional to the temperature difference between the hot and cold spot.

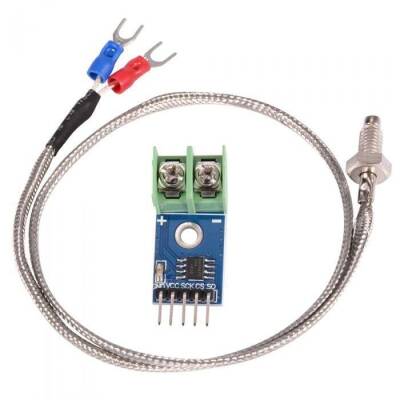

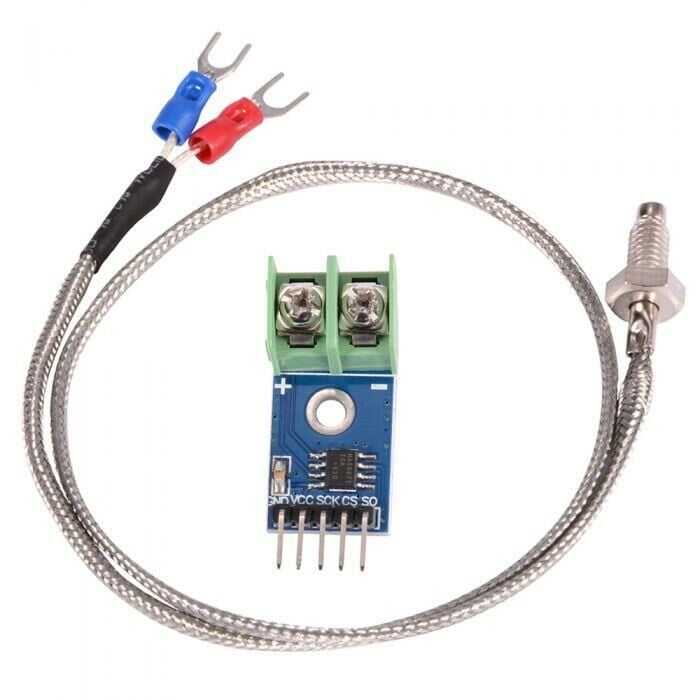

This product allows you to make very precise temperature measurements with your microcontroller cards. . It consists of MAX6675 thermocouple booster module and K-type thermocouple. It has cold point compensation (-20 ~ +80 °C) and 0.25 °C sensitivity.

Operating voltage: 3.0-5.5V

Built-in cold point compensation circuit

3-wire serial communication (SPI)

12-bit ADC resolution

K-type thermocouple (measurement between 0-800 °C)
