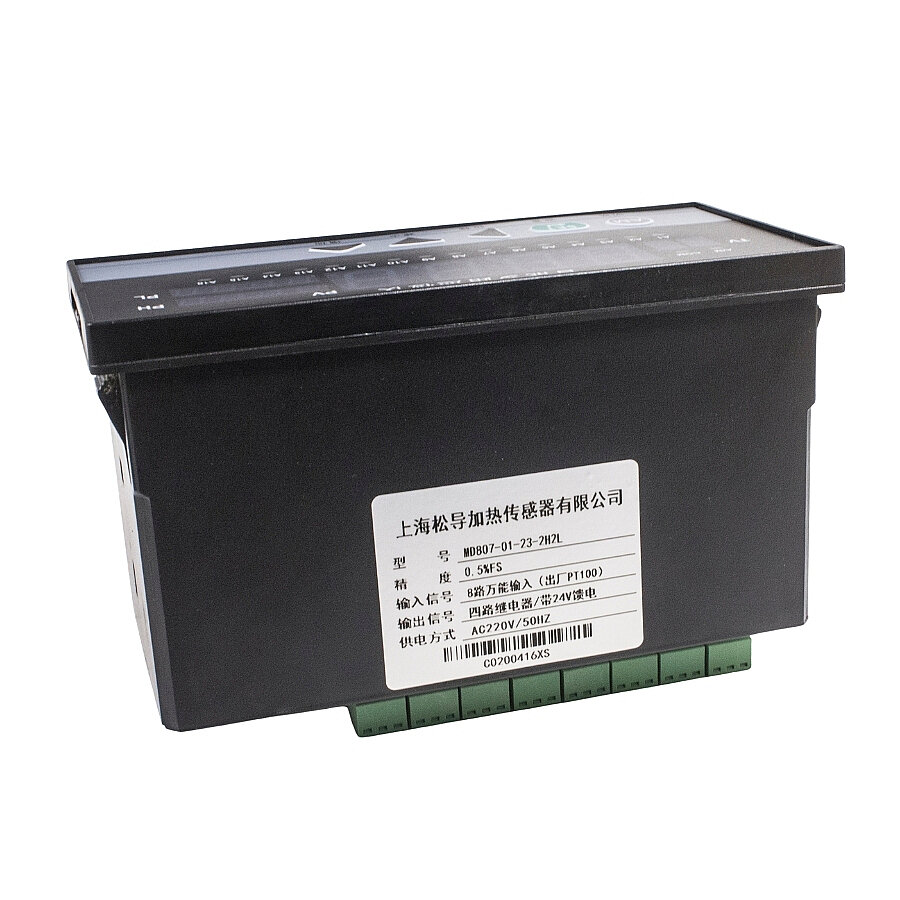

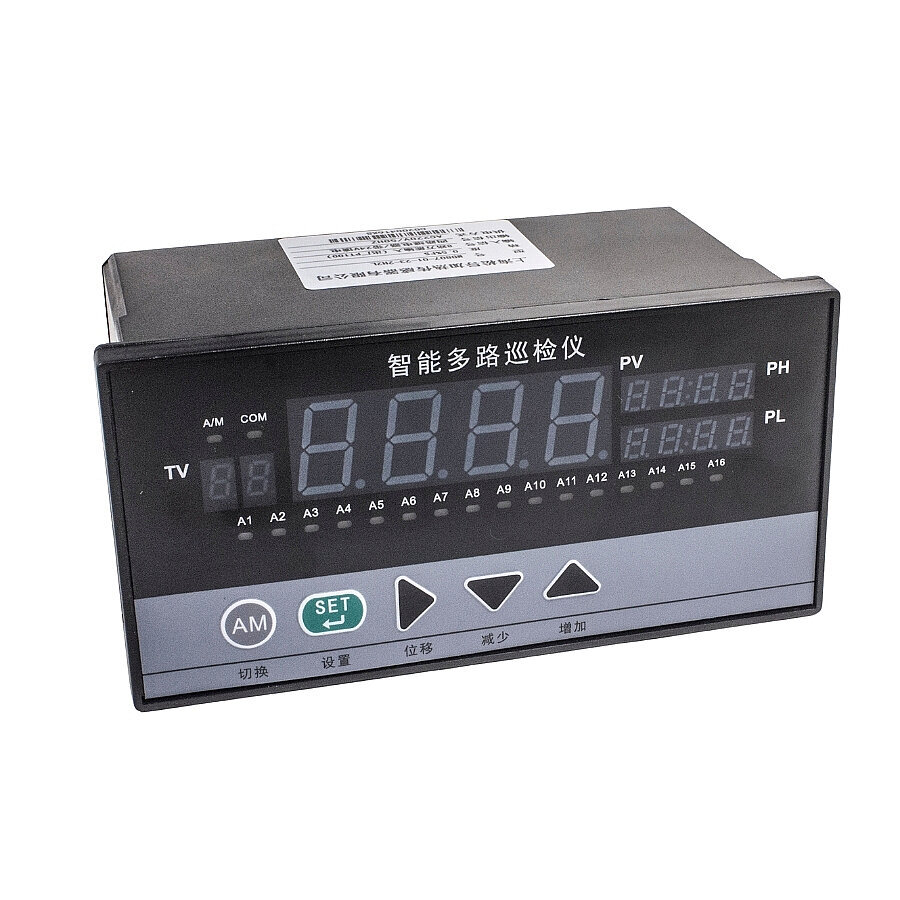

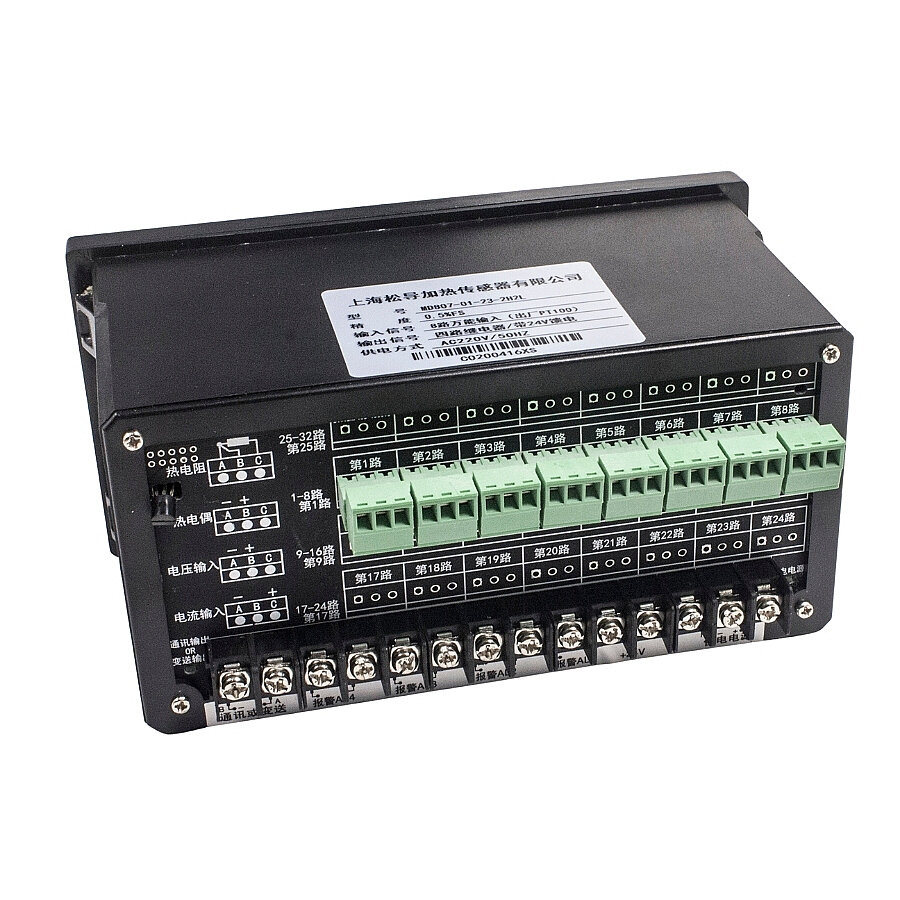

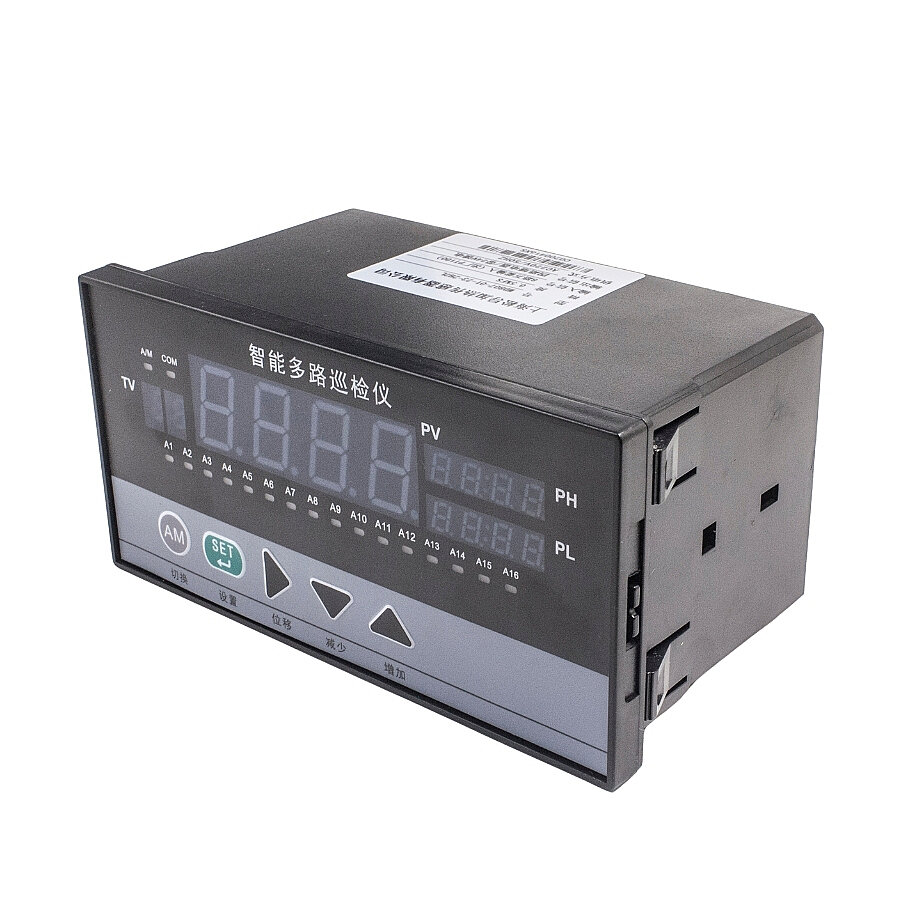

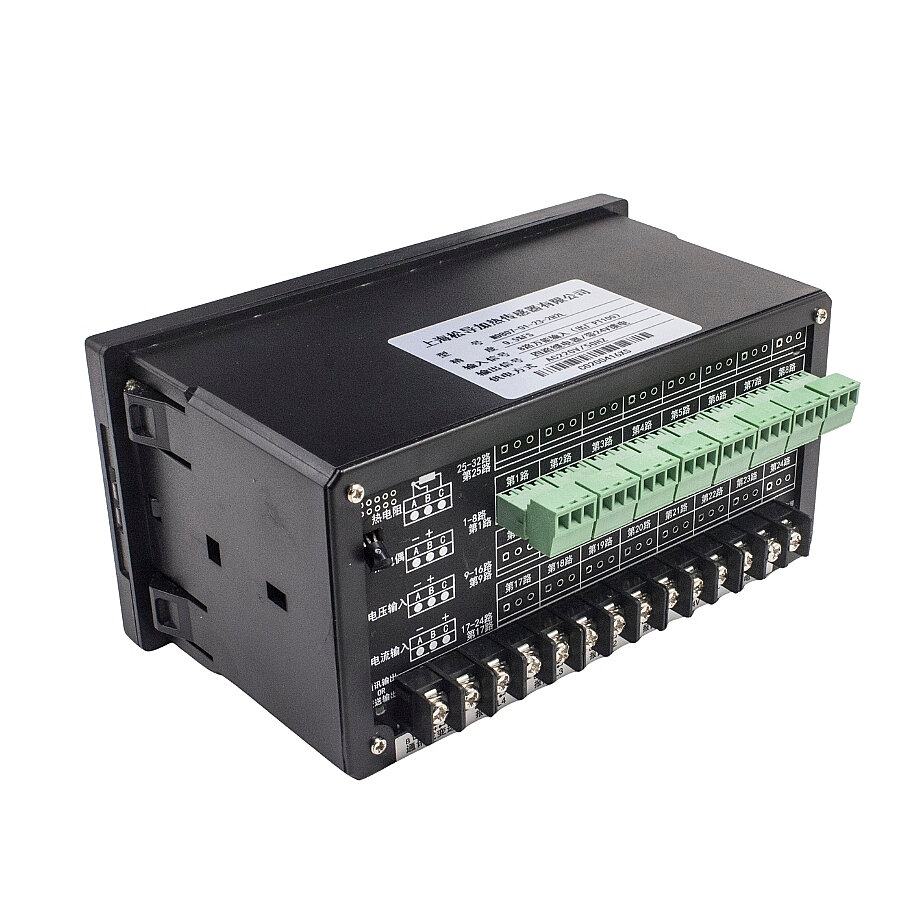

MD807-01-23-2H2L AC 220V 8-Channel 4 Relay Output Smart Temperature Controller

MD807-01-23-2H2L AC 220V 8-Channel 4 Relay Output Smart Temperature Controller

The MD807-01-23-2H2L AC 220V 8-Channel 4 Relay Output Smart Temperature Controller is a multifunctional panel measuring device designed for digitally monitoring measurement values ​​and transmitting them to control systems via communication in industrial automation and process control systems. Thanks to its RS485 communication interface and Modbus protocol, it can communicate with PLC, SCADA, HMI and other industrial control systems.

Thanks to its panel-type design, the product can be easily mounted on control panels and allows the user to monitor measurement values ​​directly from the panel. The 4-20mA analog signal support is useful for monitoring standard analog signals from industrial sensors and process equipment and transmitting them to automation systems.

The combined use of interfaces such as RS485 Modbus and 4-20mA facilitates the integration of measuring devices into modern automation infrastructures.

Detailed information about the product is included in the user manual in the box.

Features

• Input Signal

  • Input Impedance
    • Current: 150 Ohm
    • Voltage: 1M Ohm
  • Maximum Input Current Limit: 50mA
  • Maximum Input Voltage Limit: 5.3V
• Output Signal
  • Output Load Capacity
    • Current: 250 Ohm
    • Voltage: 250K Ohm
    • Relay: AC220V/3A, DC24V/3A
• Measurement Accuracy: 0.5% FS ± 1 digit
• Communication: RS485
• Communication Protocol: Modbus
• Analog Signal: 4-20mA
• Supply Voltage: AC 220V

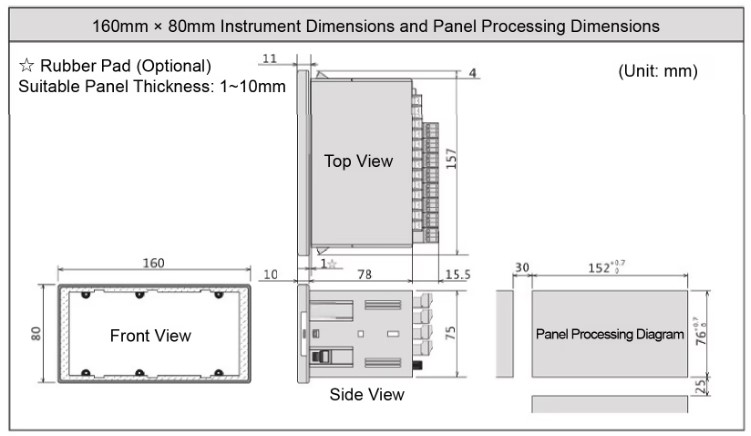

Dimensions
