MFQ100A 100A 1600V Single Phase Bridge Rectifier Diode - Chassis Type

MFQ100A 100A 1600V Single Phase Bridge Rectifier Diode - Chassis Type

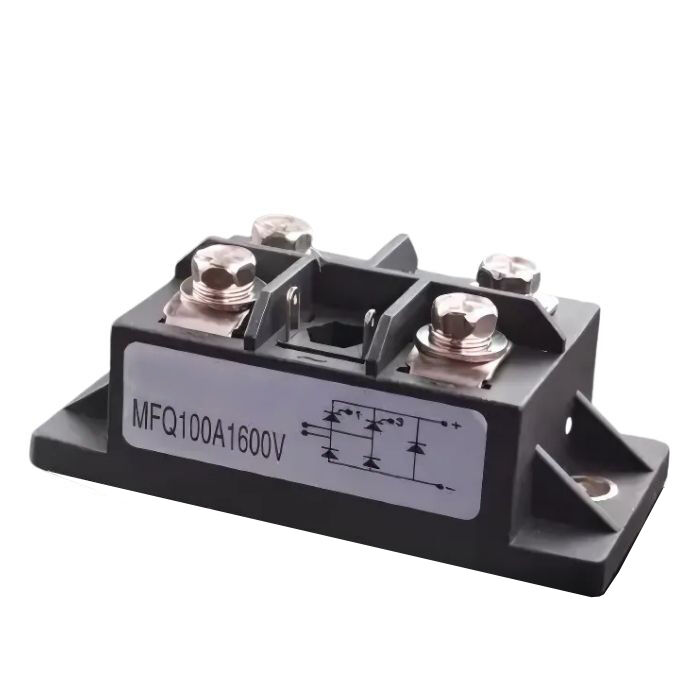

MFQ100A 100A 1600V Single Phase Bridge Rectifier Diode - Chassis Type is used in DC and AC circuits up to 100A load and 1600V. Diode bridges are housed in a standard industrial case that allows the device to be easily integrated into existing equipment. An alternating current is supplied to the "~" input of the circuit. It is 81.5x40x25mm in size.

Single Phase Bridge Diodes are generally used in power equipment as rectifiers for power supplies; input rectifiers for variable frequency drives; battery charging rectifiers.
