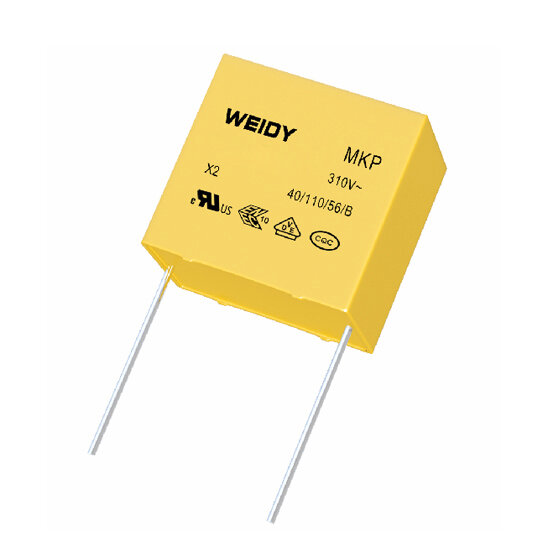

MKP-310VAC-104K-P10 100nF 0.1uF 310VAC X2 10mm Polyester Can Capacitor
Product code :
KOM.KND.03.000160
2,58
TL
+
VAT
3,10
TL
Notify Me When It Arrives
2,58
TL
+
VAT
3,10
TL
Add to Favorite
10+
RecommendCommentAlarm Price
MKP-310VAC-104K-P10 100nF 0.1uF 310VAC X2 10mm Polyester Can Capacitor
A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field. 310V 0.1uF 10% polyester capacitor.
Applications
Blocking, bypassing, filtering, and timing
High-frequency coupling and decoupling of fast digital circuits
Noise suppression in low-voltage applications
High-impact load
High-temperature operation
Technical Specifications
| Capacitor Type | Polyester Capacitor |
| Manufacturer Product Code | W42Q3104KK6L00A0W1 |
| Class | X2 |
| Climatic Category | 40/110/56/B |
| Value | 0.1uF (100nF) |
| Max. Operating Voltage | 310V |
| Leg Spacing | 10mm |
| Voltage Proof | 4.3UR (5s) |
| Dissipation Factor | <15x10⁻⁴(20°C, 1kHz) |
| Tolerance | 10% |
| Operating Temperature Range | -40°C ~ 110°C |
