MMKP82-1000V-333J-P15 33nF 0.033uF 1000V 15mm Polyester Can Capacitor
Product code :
KOM.KND.03.000166
12,47
TL
+
VAT
14,96
TL
Notify Me When It Arrives
12,47
TL
+
VAT
14,96
TL
Add to Favorite
10+
RecommendCommentAlarm Price

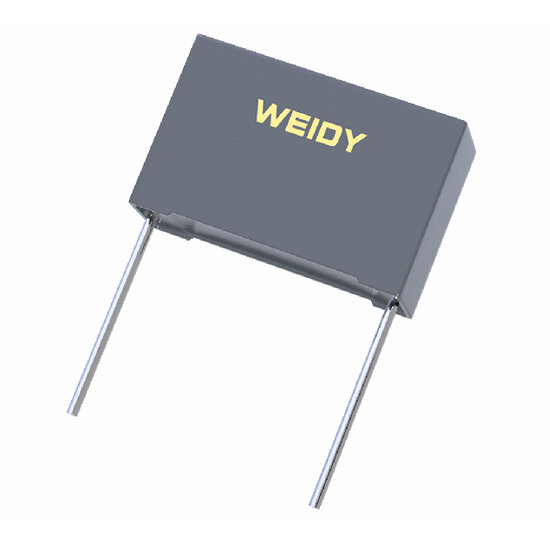

MMKP82-1000V-333J-P15 33nF 0.033uF 1000V 15mm Polyester Can Capacitor
A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field. 1000V 0.033uF 5% polyester capacitor.
Applications
Blocking, bypassing, filtering, and timing
High Frequency coupling and decoupling of fast digital circuits
Noise suppression in low voltage applications
High pulse load
High temperature operation
Technical Specifications
| Capacitor Type | Polyester Capacitor |
| Manufacturer Product Code | W823A333JM9L00BG0Q |
| Reference Standard | GB/T 10190 (IEC 60384-16) |
| Climatic Category | 40/105/56 |
| Value | 0.033uF (33nF) |
| Max. Operating Voltage | 1000V |
| Leg Spacing | 15mm |
| Voltage Proof | 1.6UR (5s) |
| Dissipation Factor | <10x10⁻⁴(20°C, 1kHz) |
| Tolerance | %5 |
| Operating Temperature Range | -40°C ~ 105°C |
