Name: N15 3-9V Mini DC Motor
Brand: Motorobit
SKU: MTR.RDZ.04.000053
Price: 46.98 TRY
Availability: InStock

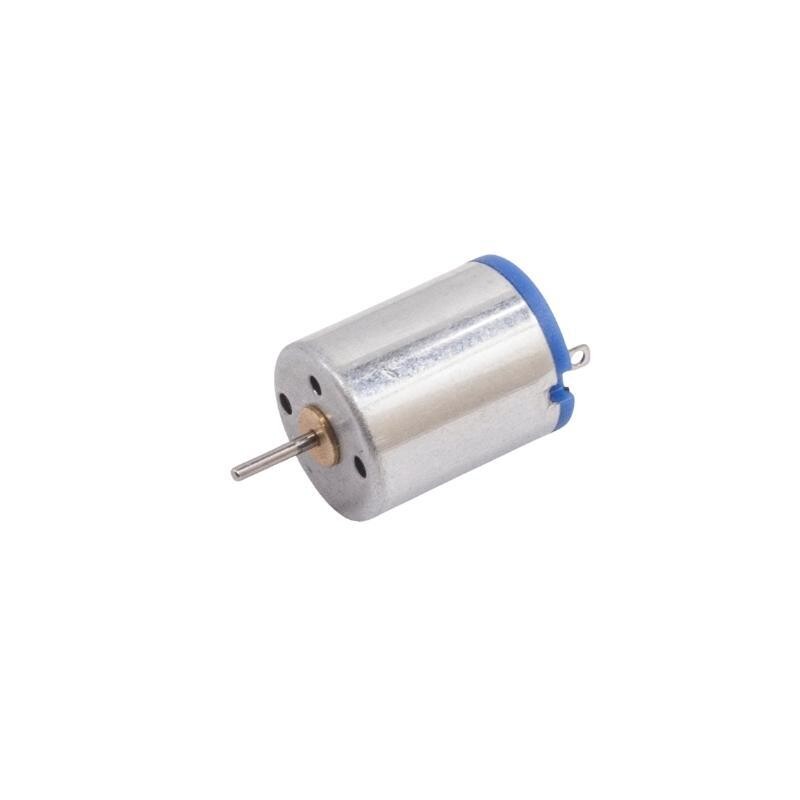

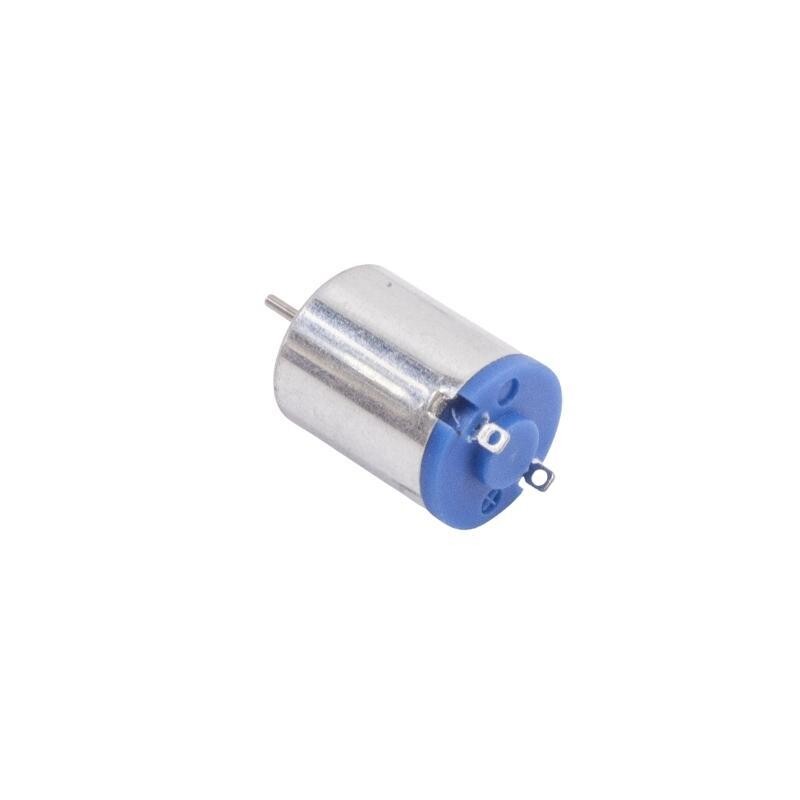

N15 3-9V Mini DC Motor

It is a hobby and toy motor that works with 3-9V. It is used in applications such as CD Player, VCR, digital camera and door lock. It is a dc motor with an operating voltage of 3-9v. It is also suitable for use in different projects.

Technical Specifications

Operating Voltage: 3-9V
Idle Current Drawn : 0.01A @3V | 0.01A @6V
Speed: 15000 r/min @6V
Current Drawn at Load: 0.06A @3V | 0.15A @6V
Body Diameter: 12mm
Body Length: 16mm
Shaft Diameter: 1mm
Shaft Length: 6mm
