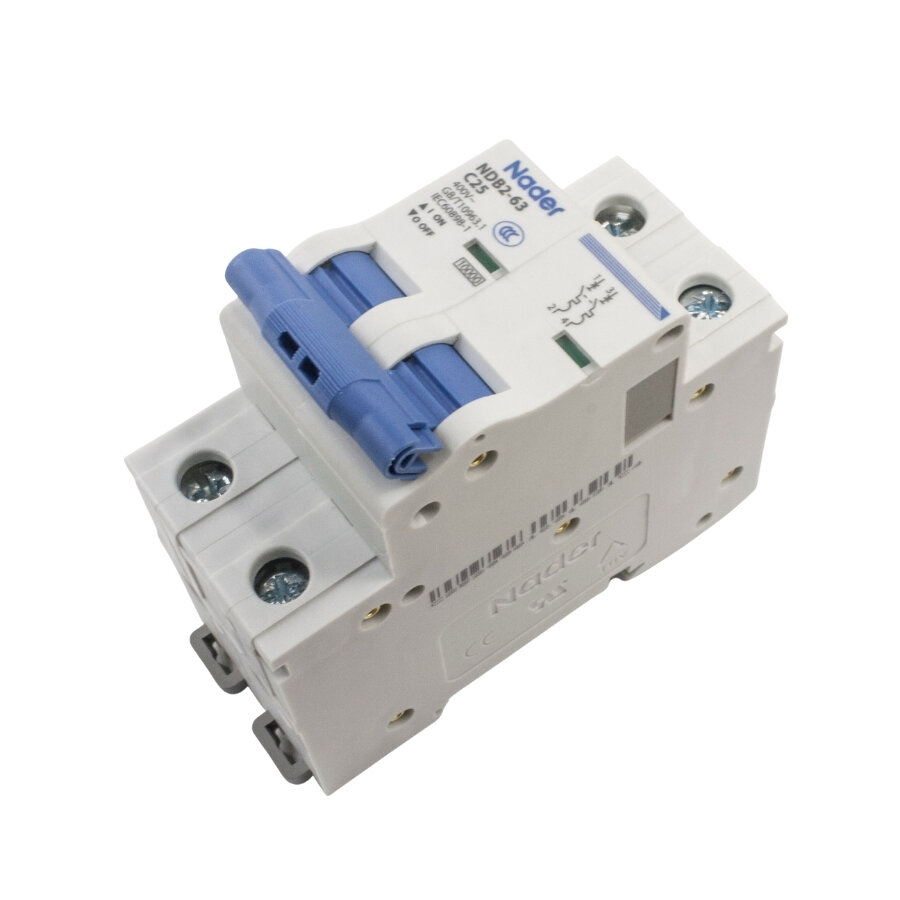

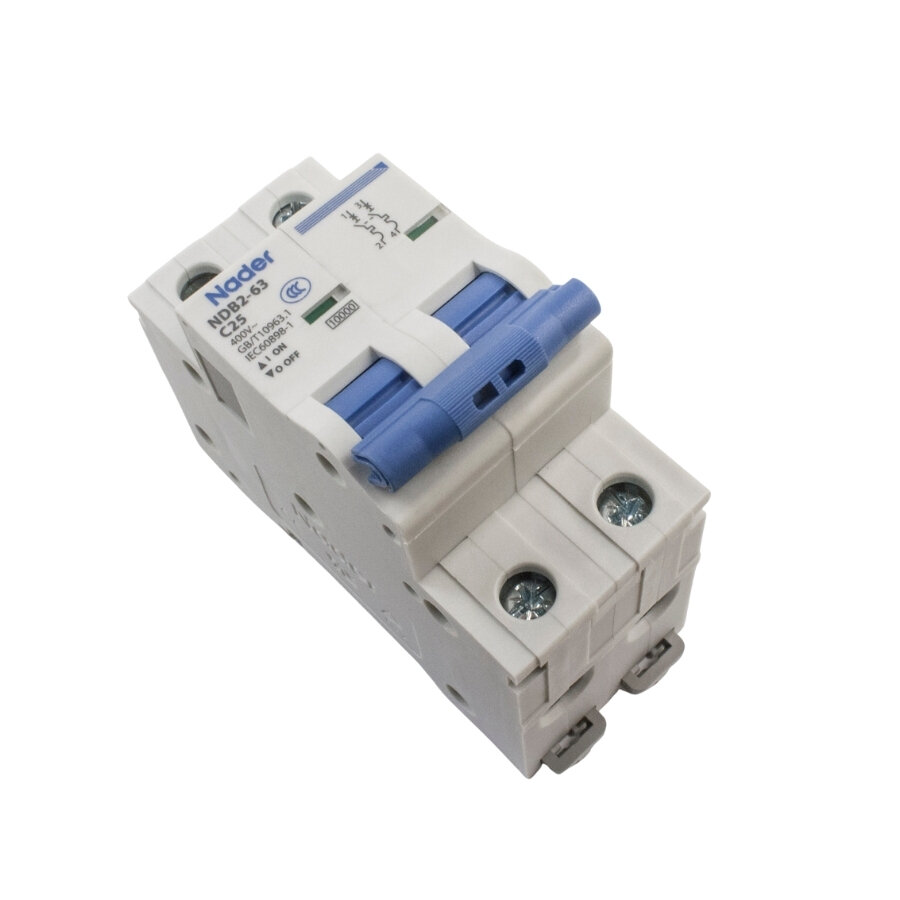

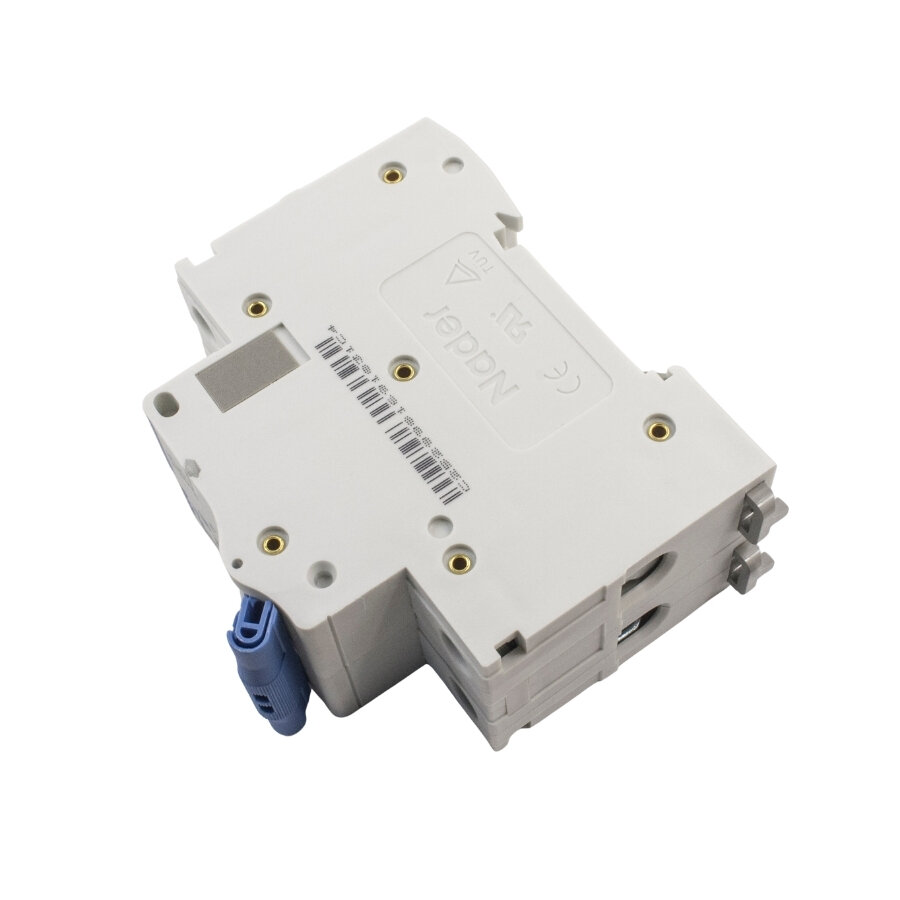

NDB2-63 2P 25A Circuit Breaker Fuse Switch
The NDB2-63 2P 25A Circuit Breaker Fuse Switch is mainly used for short circuit protection, overload protection, control, isolation, and direct current system protection of terminal power distribution systems with a rated operating voltage of 230V to 415V AC, a rated operating voltage of 60V to 125V DC, a rated frequency of 50Hz, a rated operating current of 1A to 63A, and a 2P pole count.
NDB2-63 Series Features
- Quick closing: To ensure reliable operation of impact loads and extend the life of the circuit breaker.
- The product structure increases the short-circuit breaking capacity by limiting short-circuit.
- The product structure can limit short-circuit, thus improving the short-circuit breaking capacity.
- Supports various accessories: Easy to expand functions.
- Modular: Any combination.
Technical Data of the NDB2-63 Series
| Rated Insulated Voltage | 500V |
| Altitude | ≤2000m |
| Ambient temperature | -40℃～+70℃ |
| Meet a criterion | IEC 60947-1, UL1077 |
| Instantaneous Triggering Characteristic | Type B, Type C, Type D |
| Mechanical Life | 20,000 cycles |
| Electrical Life | 20,000 times |
