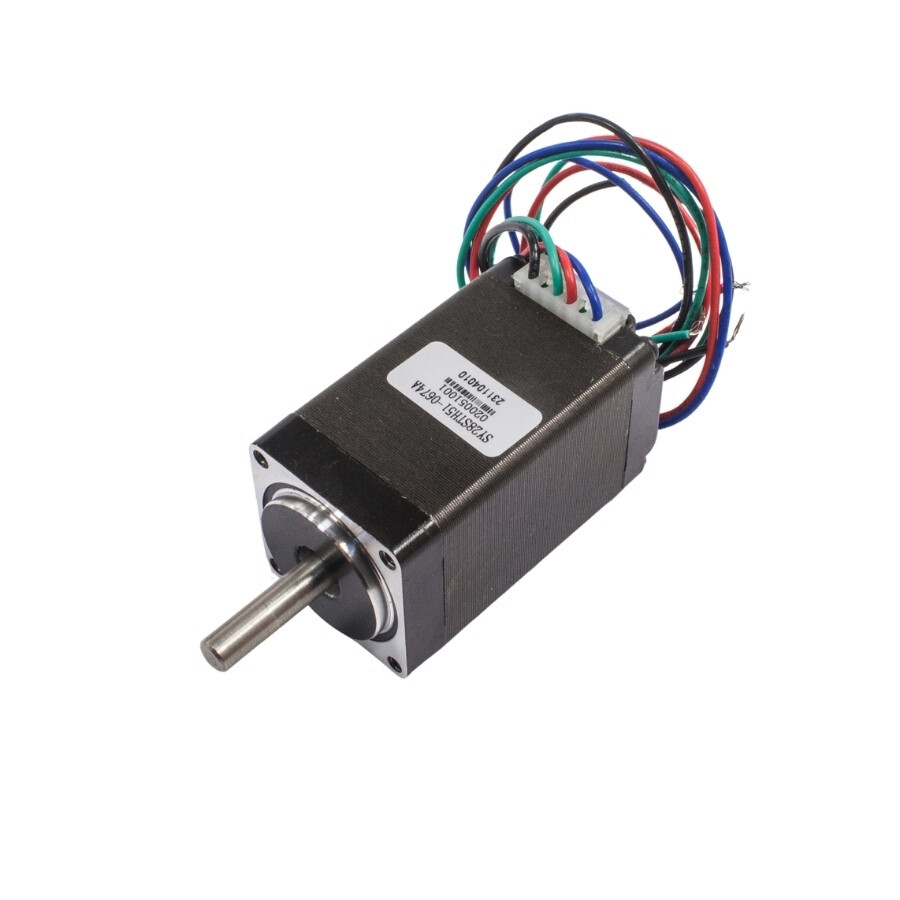

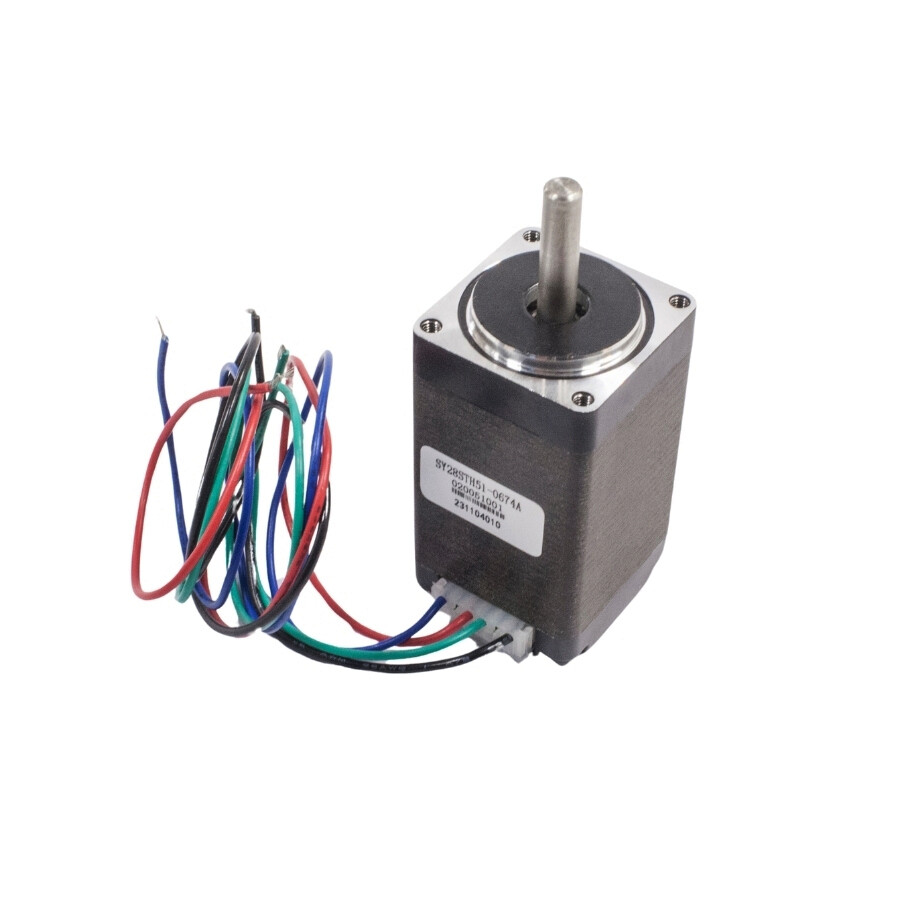

NEMA 11 Bipolar. 200 Steps. 28×51mm Stepper Motor - SY28STH51-0674A



NEMA 11 Bipolar, 200 Steps, 28×51mm Stepper Motor - SY28STH51-0674A, It is a type of engine that you can use in various machines that you produce, especially in your projects that require precise positioning, in machine manufacturing.

< ul>

Model: Nema 11 SY28STH51-0674A

Shaft length: 18mm

Shaft diameter: 5mm

Step angle: 1.8°

Current consumption: 670mA per coil

Max. radial force: 28N (20mm from flange)
Max. axial force: 10N

Dimension: 28x28x51mm
