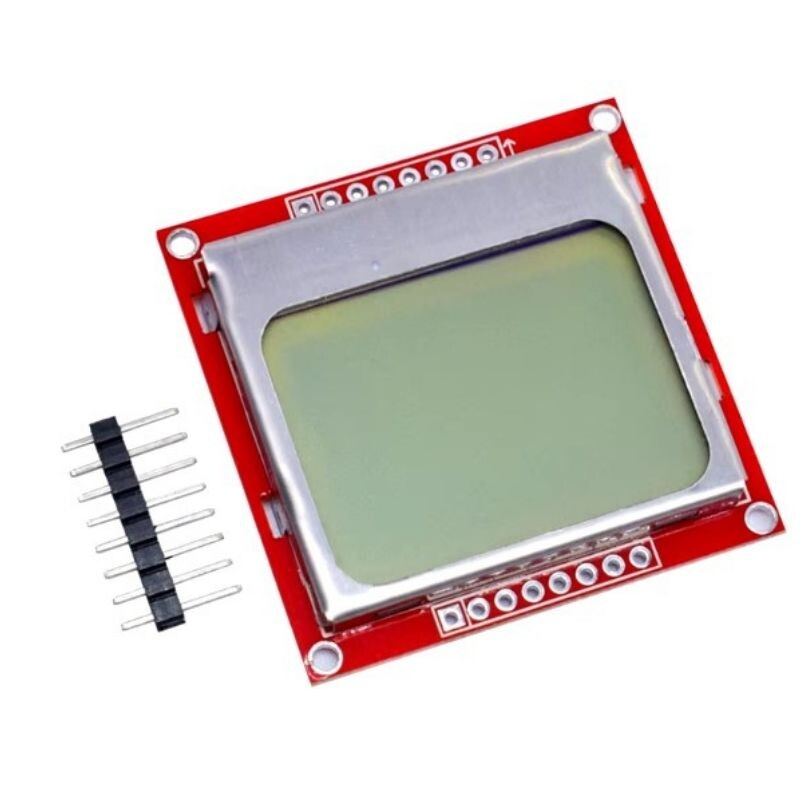

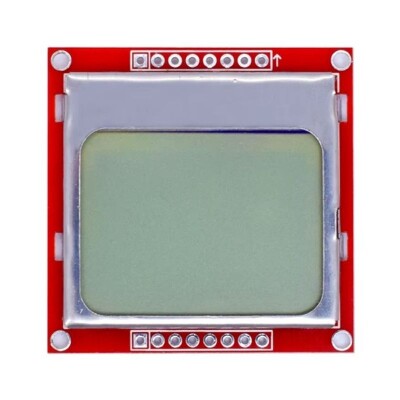

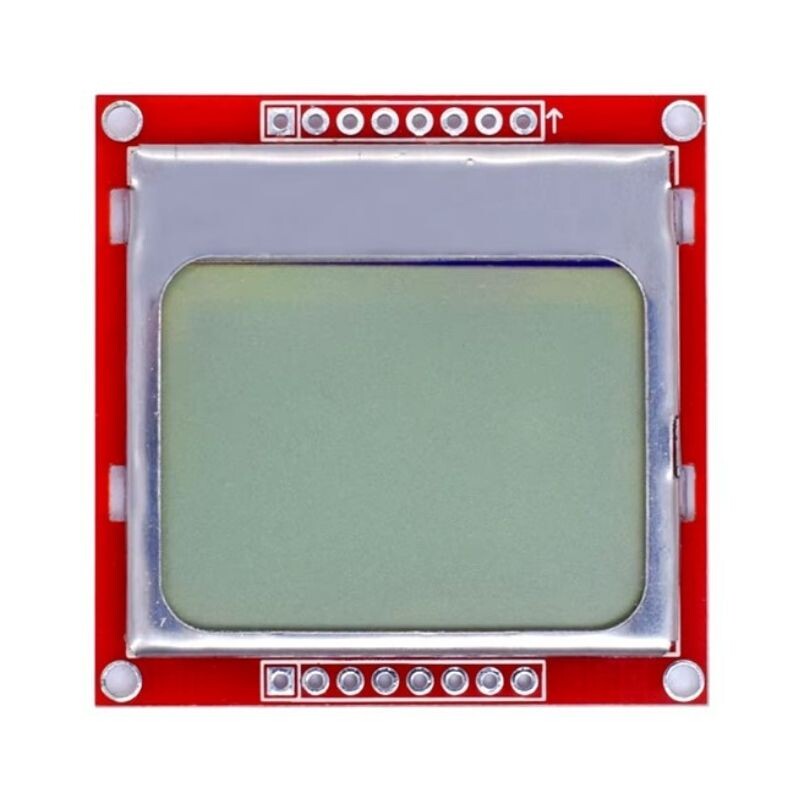

Nokia 5110 LCD Screen - Red PCB
It is the new version of Nokia 5110 LCD Screen. You need to use HX1230 library. You can download the library from the links below and examine the sample code with Arduino and RTC module.
You can easily use it with Arduino and different microcontrollers. Its pins are outside so it can be used with breadboard.

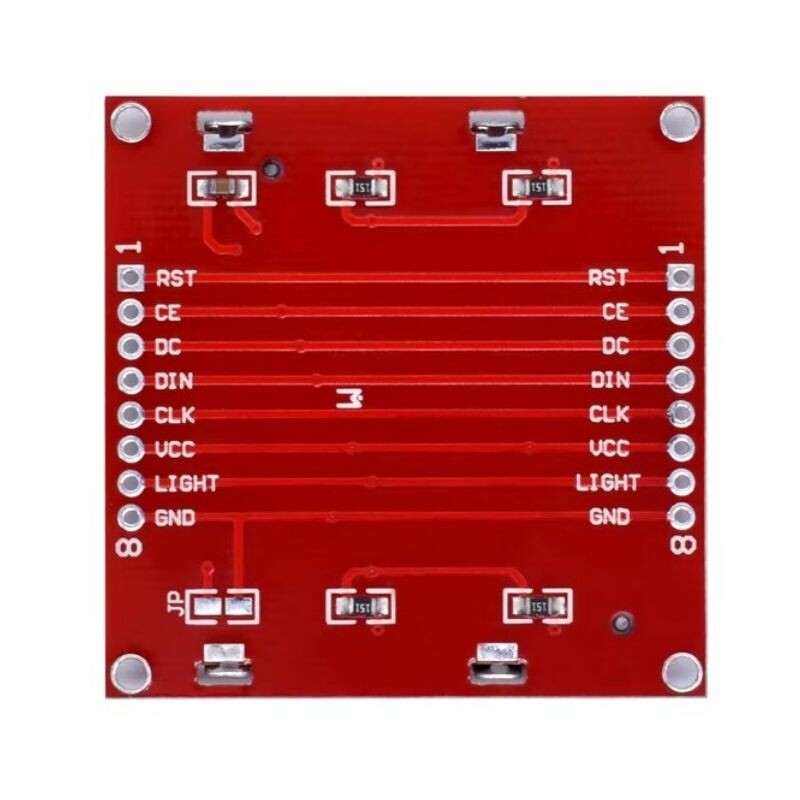

Pinout
RST – Reset
CE – Chip Enable
DC – Data/Command Selection
DIN – Data Input
CLK – Clock Input
VCC – Power Supply 3.3V
LIGHT – Backlight Control
GND – Ground
CE – Chip Enable
DC – Data/Command Selection
DIN – Data Input
CLK – Clock Input
VCC – Power Supply 3.3V
LIGHT – Backlight Control
GND – Ground
Technical Specifications:
Resolution: 84x48
Controller: PCD8544
Single LED backlight for low power consumption
4.0Mbit/s speed
External RST (reset) input pin
Voltage range: 2.7V ∼ 5.0V
Low power consumption for battery-powered systems
Operating Temperature: -25∼70 °C
PCB Size: 45x45mm
Screen Size: 26x34mm
