Overcurrent Protection Circuit 5A

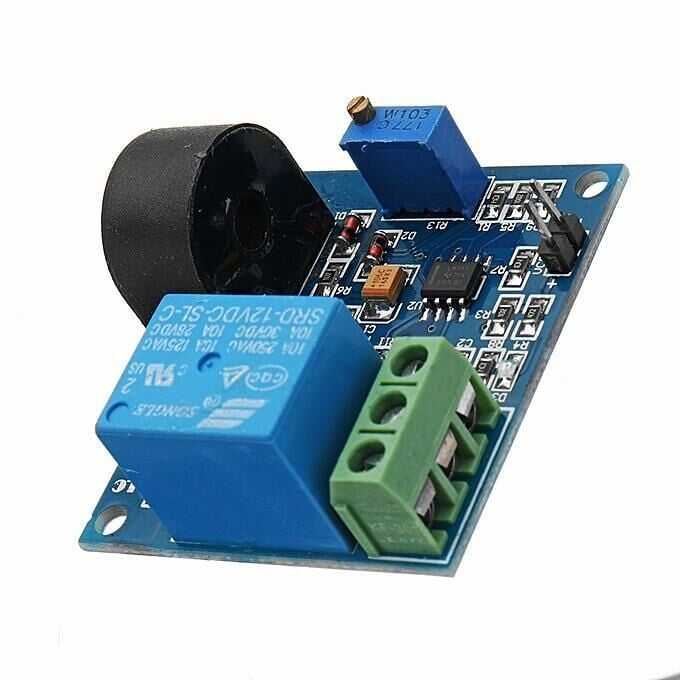

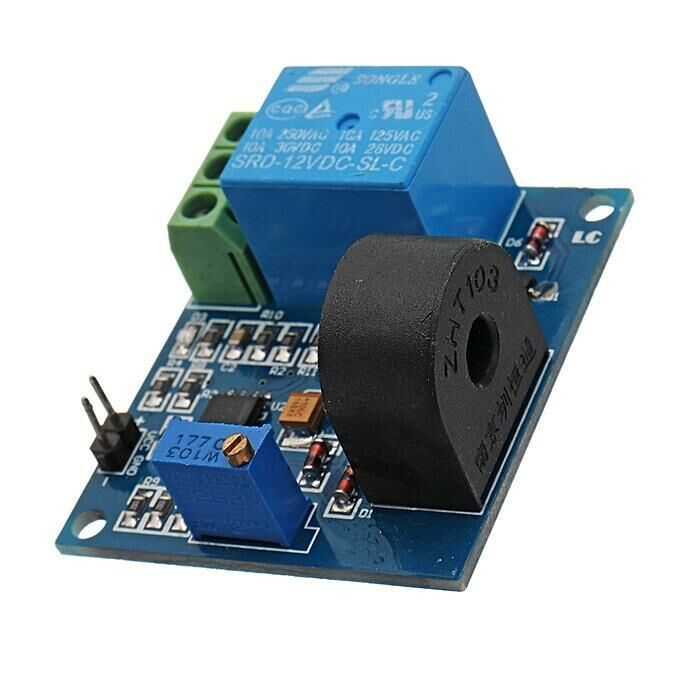

5A Overcurrent protection module is used to protect against overcurrent in the range of 0-5A. It can be opened or closed as a result of overcurrent by using the NO or NC terminals on the relay. The overcurrent point can be adjusted with the trimpot on it. The module It is operated by applying 12v Dc voltage from VCC and GND terminals.

AC 5A Overcurrent Protection module Features:

Operating voltage: DC12V
Operating current: <20ma
Operating frequency range: 20Hz ~ 400Hz
Output mode: switch signal output
Maximum detection wire diameter: 5.2mm
Mounting hole: hole diameter 3mm , hole distance 52.5mm
Working environment: -40℃ ~ +85℃
Current detection range: AC0.3A-5A

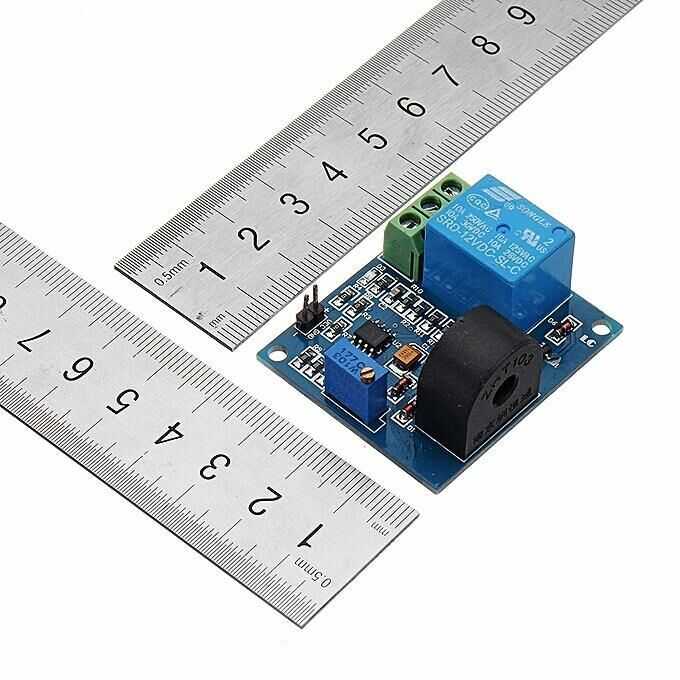

Module size: 38* 44mm

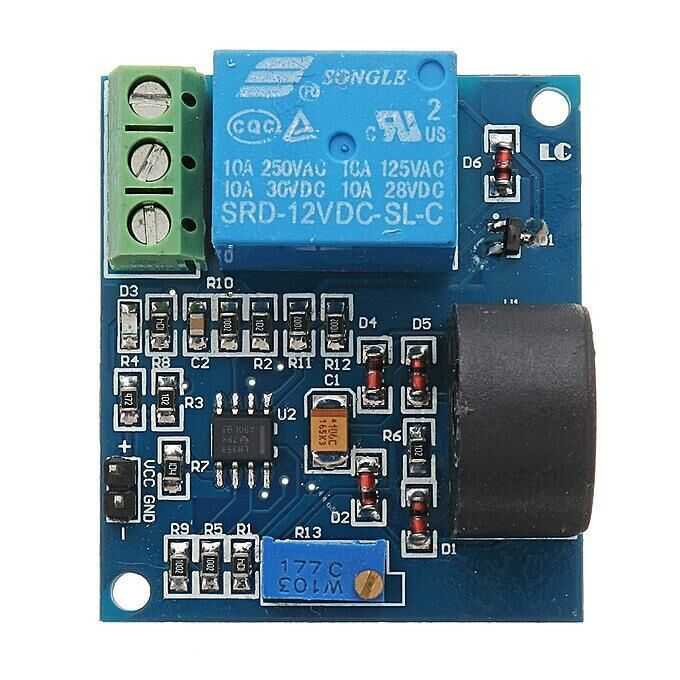

Connections:

VCC: Operating voltage positive;
GND: Operating voltage negative;
NO: Normally open circuit
COM: common, relay common interface;
NC: Normally closed
By adjusting the potentiometer clockwise to set the overcurrent protection point adjustment reduces the detection current.
