PIC12F683-I/P DIP-8 20MHz Microcontroller
141,38
TL
+
VAT
169,65
TL
Notify Me When It Arrives
141,38
TL
+
VAT
169,65
TL
Add to Favorite
RecommendCommentAlarm Price

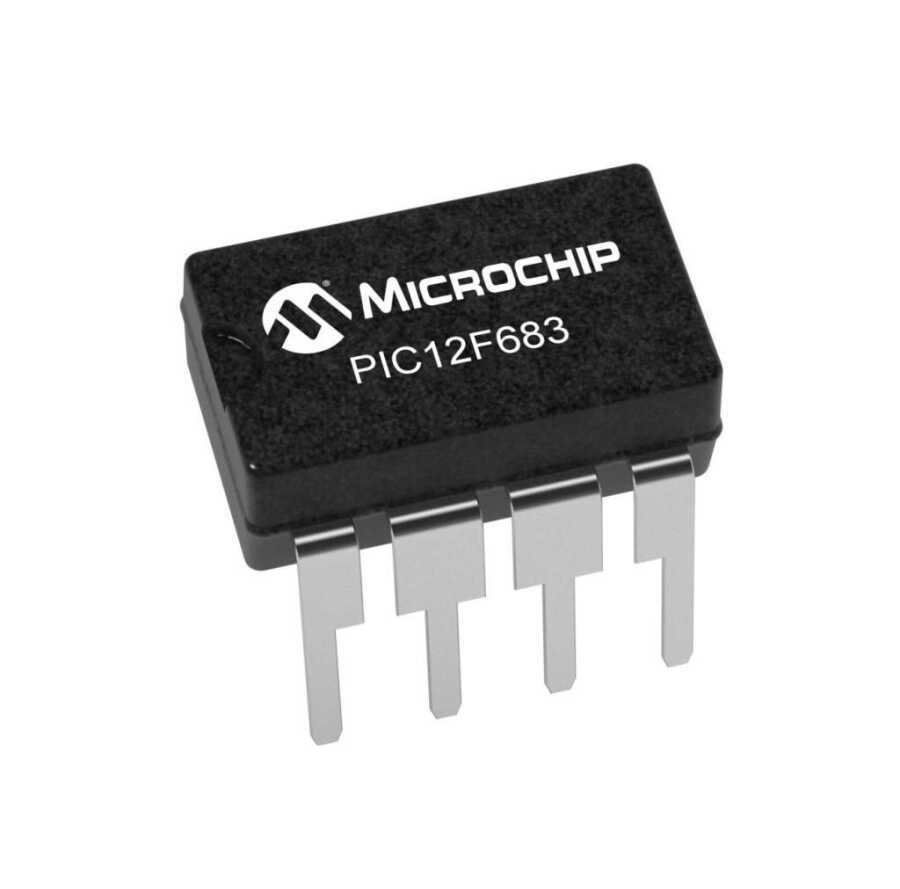

PIC12F683-I/P DIP-8 20MHz Microcontroller
Low Pin Count (8) PIC® Flash microcontroller products It offers all the advantages of the well-known mid-range x14 architecture with a wide operating voltage of 2.0-5.5 volts, onboard EEPROM Data Memory and standardized features including nanoWatt. technology. Standard analog peripherals include up to 4 10-bit A/D channels, an analog comparator module with a single comparator, on-chip programmable voltage reference, and a Standard Capture/Comparison/PWM (CCP) module.
Technical Specifications
| Product Code | PIC12F683 |
| Program Memory Type | Flash |
| Program Memory Size | 3.5 kB |
| Bus Width | 8-Bit |
| Max Clock Frequency | 20 MHz |
| Data RAM Size | 128 B |
| I/O Count | 6 |
| Number of Timers | 8 |
| Operating Voltage Range (V) | 4.5 - 5.5V |
| Number of Pins | 8 |
