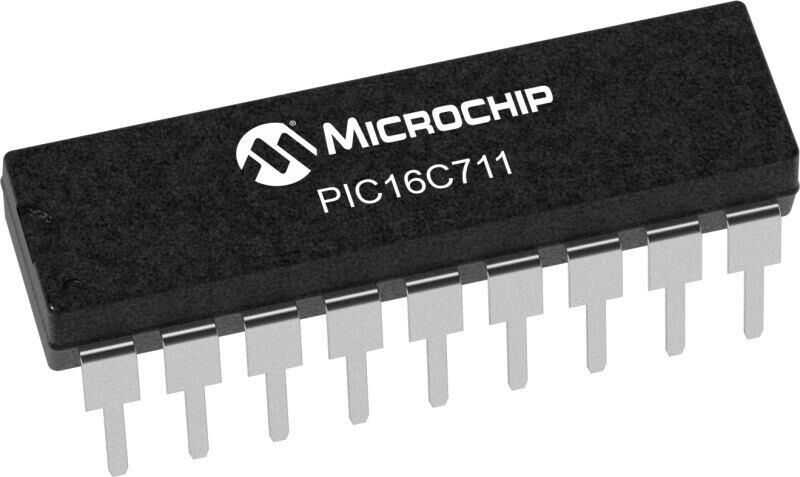

PIC16C711-04/P DIP-18 4MHz Microcontroller

PIC16C711-04I/P, 8-bit strong (200 nanosecond instruction execution) and easy to program (only 35 single-word instructions). CMOS one-time programmable (OTP) based Microcontroller with powerful PIC®(RISC) architecture. This product offers all the benefits of the well-known mid-range x14 architecture with standardized features including 1.75 kB addressable program memory size, 68 byte data memory size, 13 general-purpose I/O pins, and 4-channel 8-bit analog. -digital (A/D) converter. This device operates at a maximum frequency of 4 MHz with a wide operating voltage of 2.5 to 5.5V.

Specifications

Product Code	PIC16C711
Program Memory Type	Flash
Program Memory Size	1 kB
Bus Width	8-Bit
Max Clock Frequency	4 MHz
Data RAM Size	68 B
I/O Count	13
Number of Timers	1
Operating Voltage Range (V)	2.5 - 6V

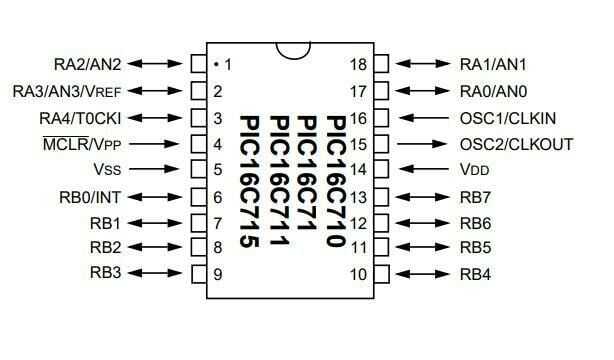

Number of Pins	18

PIC16C711 Datasheet
