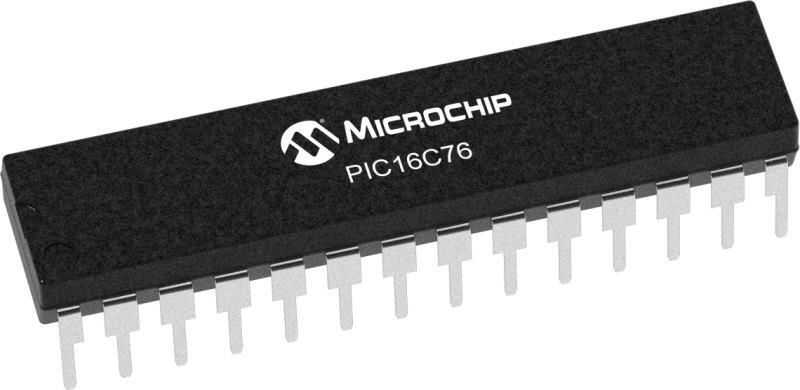

PIC16C76-04I/SP DIP-28 4MHz Microcontroller

PIC16C76-04/SP, 8-bit strong (200 nanosecond instruction execution) and easy to program (only 35 single-word instructions). architectural. This product offers all the advantages of the well-known mid-range x14 architecture with standardized features including 14 kB addressable program memory size, 368 bytes data memory size, 22 general-purpose I/O pins and 5-channel 8-bit analog digital (A/D) converter. This device operates at a maximum frequency of 4 MHz with a wide operating voltage of 4 to 6V.

Specifications

Product Code	PIC16C76
Program Memory Type	Flash
Program Memory Size	8 kB
Bus Width	8-Bit
Max Clock Frequency	4 MHz
Data RAM Size	368 B
I/O Count	22
Number of Timers	3
Operating Voltage Range (V)	4 - 6V
Number of Pins	28

PIC16C76 Datasheet
