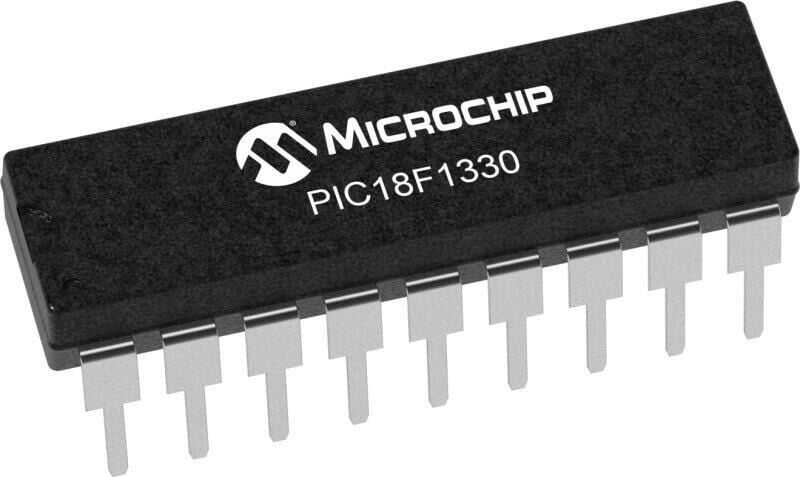

PIC18F1330-I/P DIP-18 40MHz Microcontroller
276,00
TL
+
VAT
331,20
TL
Notify Me When It Arrives
Notify Me When It Arrives
PIC18F1330-I/P DIP-18 40MHz Microcontroller
PIC18F1330-I/P, 8-bit strong (200 nanosecond command execution) and easy to program CMOS flash based Microcontroller is a basic PIC18 family with powerful PIC®(RISC) architecture. This product uses a 12-bit program word and provides just the right amount of features, including an 8-kB addressable program memory size, 256-byte data memory size, 16 general-purpose I/O pins, three comparators, and 4 channels of 10-bit analog. digital (A/D) converter. This device operates at a maximum operating voltage frequency of 40MHz wide from 2 to 5.5V.
Specifications
| Product Code | PIC18F1330 |
| Program Memory Type | Flash |
| Program Memory Size | 8 kB |
| Bus Width | 8-Bit |
| Max Clock Frequency | 40 MHz |
| Data RAM Size | 256B |
| I/O Count | 16 |
| Number of Timers | 2 |
| Operating Voltage Range (V) | 2 - 5.5V |
| Number of Pins | 18 |
