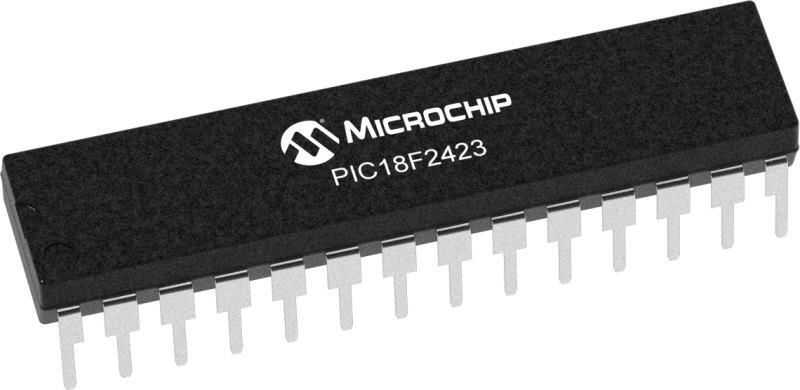

PIC18F2423-I/SP DIP-28 40MHz Microcontroller

PIC18F2423-I/SP is a high performance PIC18 family 8 -bit powerful (200 nanoseconds command execution) yet easy to program CMOS flash based Microcontroller combines powerful PIC®(RISC) architecture with up to 16 MIPS processing power. This product offers all the advantages of the well-known high-performance x16 architecture with standardized features including 16 kB addressable program memory size, 768 bytes data memory size, 25 general-purpose I/O pins, two comparators, and 10-channel 12-channel. bit analog to digital (A/D) converter. This device operates at a maximum operating voltage frequency of 40MHz wide from 2 to 5.5V.

Specifications

Product Code	PIC18F2423
Program Memory Type	Flash
Program Memory Size	16 kB
Bus Width	8-Bit
Max Clock Frequency	40 MHz
Data RAM Size	768B
I/O Count	25
Number of Timers	4
Operating Voltage Range (V)	2 - 5.5V
Number of Pins	28

PIC18F2423 Datasheet
