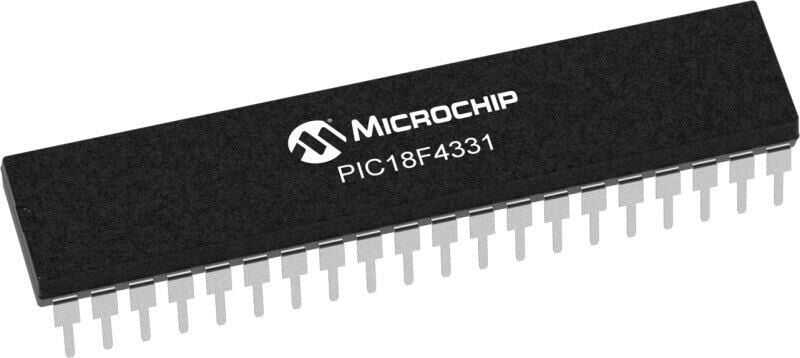

PIC18F4331-I/P DIP-40 40MHz Microcontroller

It offers the advantages of all PIC18 microcontrollers – namely high computational performance at an economical price with the addition of high-endurance advanced Flash program memory and a high-speed 10-bit A/D Converter. Along with these features, the PIC18F2331/2431/4331/4431 family offers design improvements that make these microcontrollers a logical choice for many high performance, power control and motor control applications.

Technical Specifications

Product Code	PIC18F4331
Program Memory Type	Flash
Program Memory Size	8kB
Data Width	8-Bit
Max Hours Frequency	40 MHz
Data RAM Size	768B
I/ Number O	36
Number of Timers	4
Operating Voltage Range (V)	2 - 5.5V

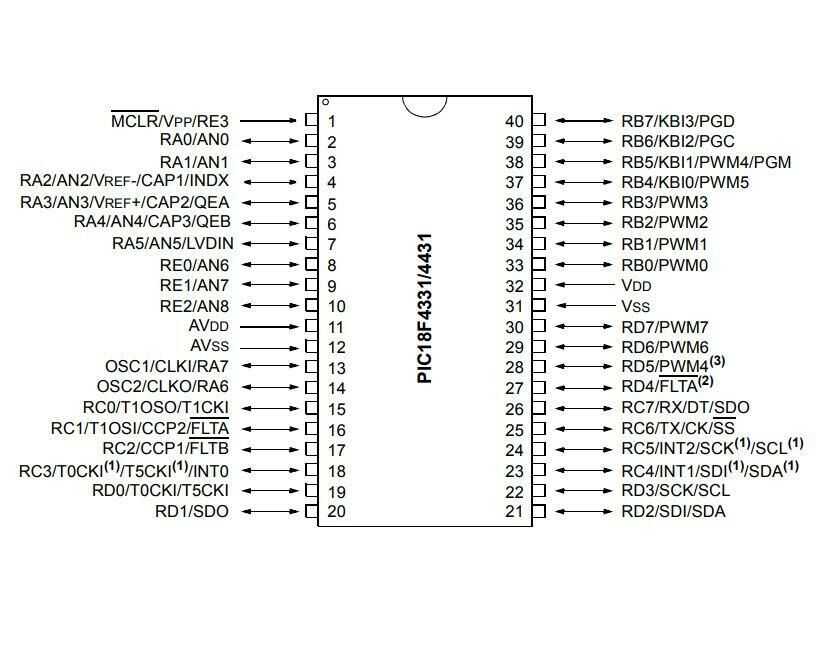

Number of Pins	40

PIC18F4331 Datasheet
