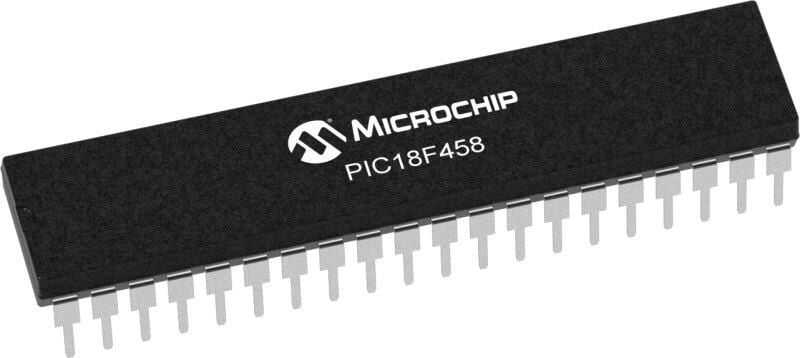

PIC18F458-I/P DIP-40 40MHz Microcontroller

PIC18F458-I/P, 8-bit strong (100 nanosecond instruction execution) is a high-performance PIC18 family, yet easy-to-program CMOS flash-based Microcontroller, combining powerful PIC®(RISC) architecture with up to 10 MIPS processing power. This product offers all the advantages of the well-known high-performance x16 architecture with standardized features including 32 kB addressable program memory size, 1536 bytes data memory size, 33 general-purpose I/O pins, two comparators, and 8-channel 10-channel. bit analog to digital (A/D) converter. This device operates at a maximum operating voltage frequency of 40MHz wide from 2 to 5.5V.

Specifications

Product Code	PIC18F458
Program Memory Type	Flash
Program Memory Size	32kB
Bus Width	8-Bit
Max Clock Frequency	40 MHz
Data RAM Size	1.5 kB
I/O Count	33
Number of Timers	4
Operating Voltage Range (V)	2 - 5.5V
Number of Pins	40

PIC18F458 Datasheet
