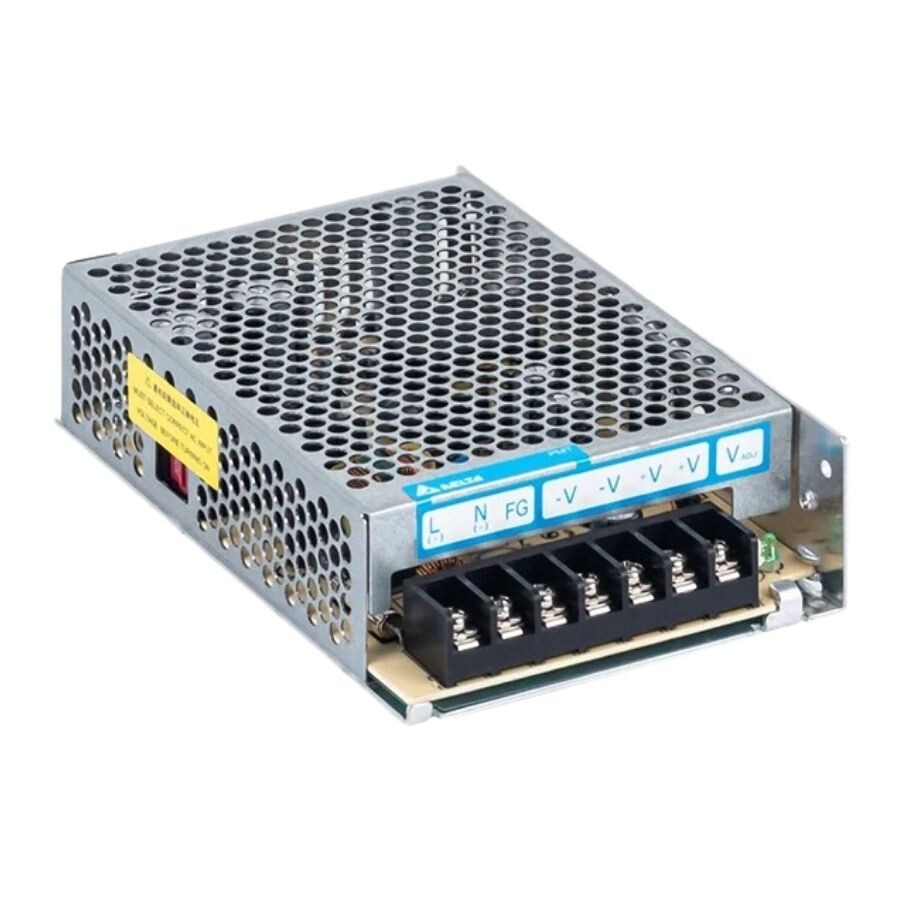

PMT-24V100W1AC 24V 4.5A Metal Case Power Supply
The new PMT series panel mount power supplies are the latest product from Delta, one of the world's largest power supply manufacturers and solution providers. The product offers a wide operating temperature range of -10°C to +70°C and can withstand shock and vibration requirements (in accordance with IEC 60068-2-27 and IEC 60068-2-6 respectively). It features overvoltage and overload protection. You can use it with your electronic devices up to 24V 4.5A.
Datasheet
Usage Guide
STP file
DXF File
Features
- Input Voltage: 200-240 Vac
- Input Frequency: 50-60 Hz
- Input Current: <1.20 A @ 230 Vac
- 100% Load Efficiency >86.0% @ 115 Vac and 230 Vac
- Maximum Power Consumption 0% load 0.46 W typ. @ 230 Vac
- Maximum Current (Cold Start) < 36 A @ 230 Vac
- Nominal Output Voltage 24 Vdc
- Factory Set Point Tolerance 24 Vdc ± 1%
- Output Voltage Setting Range 22.8-26.4 Vdc
- Output Current 4.50 A (max. 108 W)
- Output Power 108 W
- Dimensions: 158 x 97 x 38 mm
- Weight: 360g
Technical Drawing
