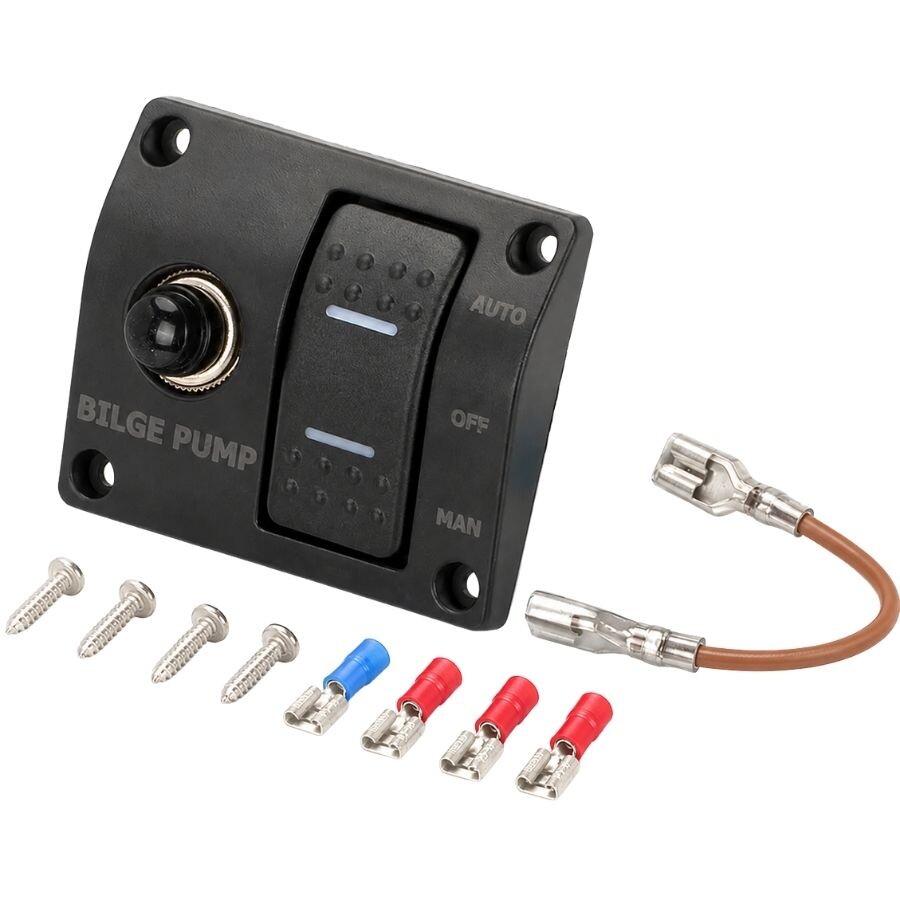

PN-AB2 3-Position Auto-OFF-Manual Bilge Pump Switch Panel
The PN-AB2 3-Position Auto-OFF-Manual Bilge Pump Switch Panel is designed for the manual or automatic control of bilge pumps in boat and marine electrical systems. Thanks to the MAN-OFF-AUTO switch on the panel, the pump can be operated manually, turned off completely, or set to automatic operation mode via a float switch.
In the AUTO position, the panel works in conjunction with bilge pump systems equipped with an automatic float switch. The float switch activates the pump when the water level rises, while the MANUAL position allows the user to operate the pump directly when needed.
Features
- Operating Voltage: 12V / 24V / 32V DC
- Current Capacity: 15A
- Switch Positions: MAN – OFF – AUTO
- Manual Position: Spring-return
- Automatic Operation: Compatible with bilge pump systems using float switches
- LED Indicator: Included
- Built-in Fuse Holder: Included
- Panel Material: Aluminum
- Housing Material: Plastic and metal
- Protection: Water, dust, and weather-resistant
