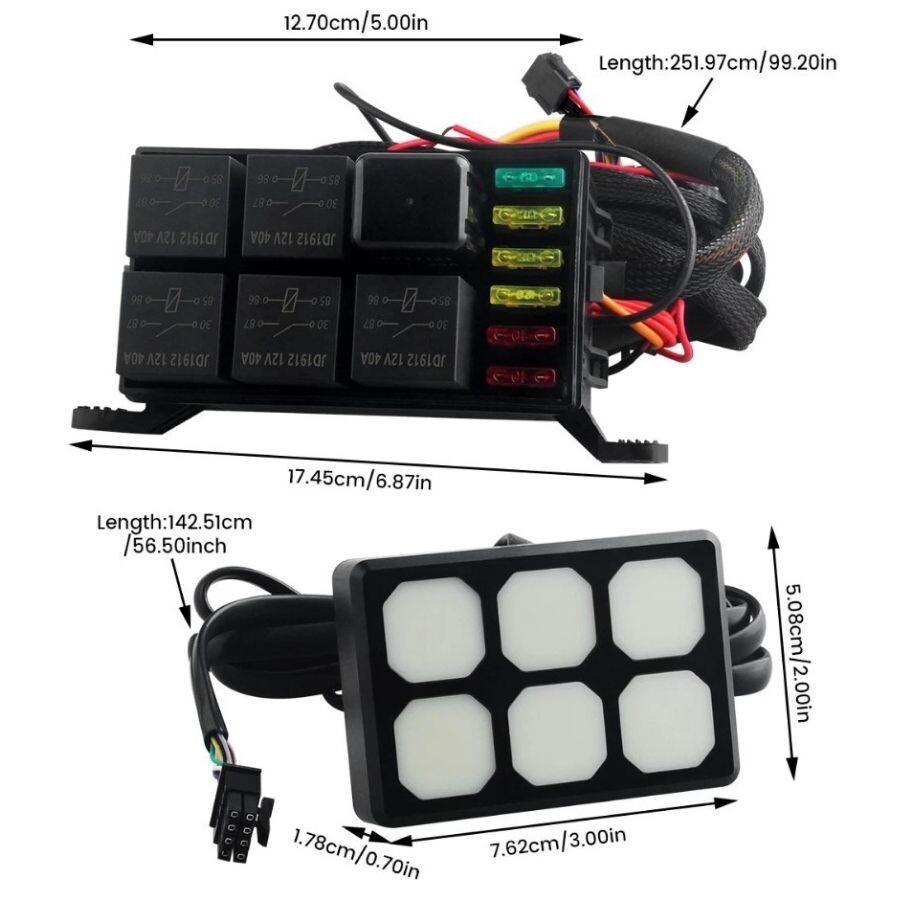

PN-SR5U6 6-Gang Switch Panel Set with Relay Control System

PN-SR5U6 6-Gang Switch Panel Set with Relay Control System

The PN-SR5U6 6-Gang Switch Panel Set with Relay Control System is designed to provide organized and convenient centralized control of auxiliary electrical equipment on vehicles. It enables the independent switching of accessories such as LED light bars, fog lights, work lights, horns, fans, compressors, and similar devices.

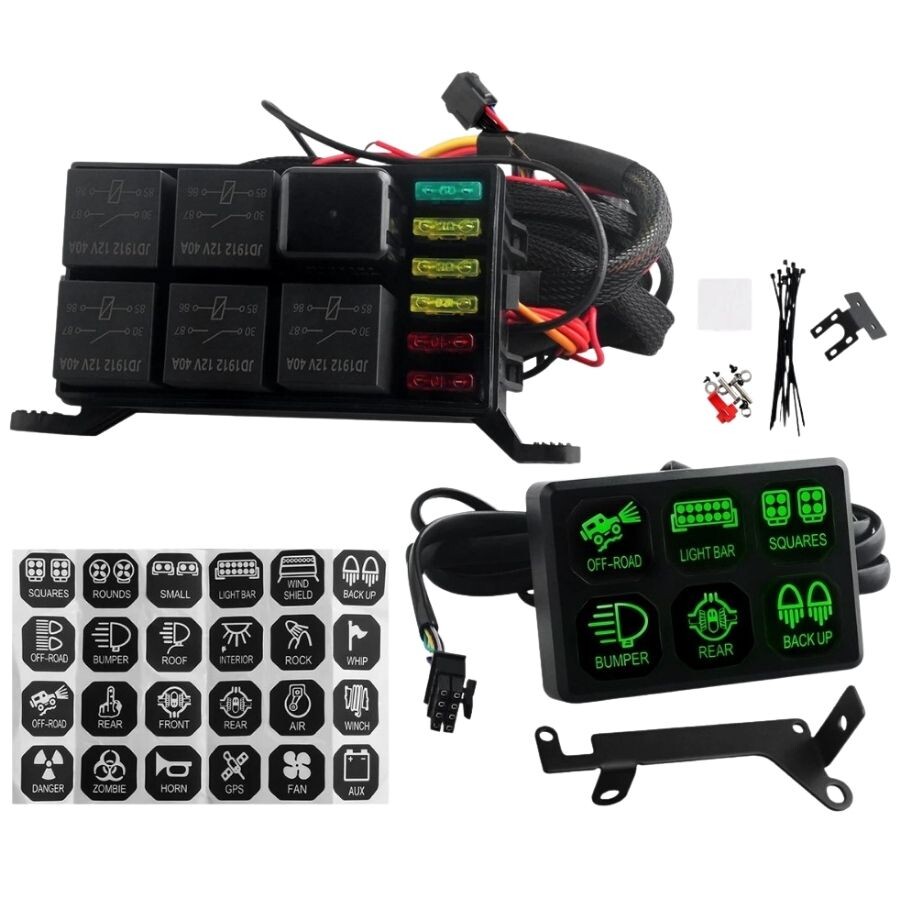

The panel features 6 independent control buttons. Each button can be assigned to a different piece of electrical equipment. With the approximately 50 function labels included in the package, the buttons can be labeled according to the connected equipment, making it easy to identify which button controls which device while driving.

Specifications

• Control Channels: 6
• Operating System: 12V-24V DC vehicle systems
• Input/Output Rating: 12V 60A / 24V 40A
• Control Type: LED-illuminated push-button
• Backlight Color: Green
• Active Circuit Indicator: Red
• Master On/Off Function: Yes
• Housing Material: ABS and aluminum
• Protection Features: Over-current, over-voltage, reverse polarity, and thermal protection

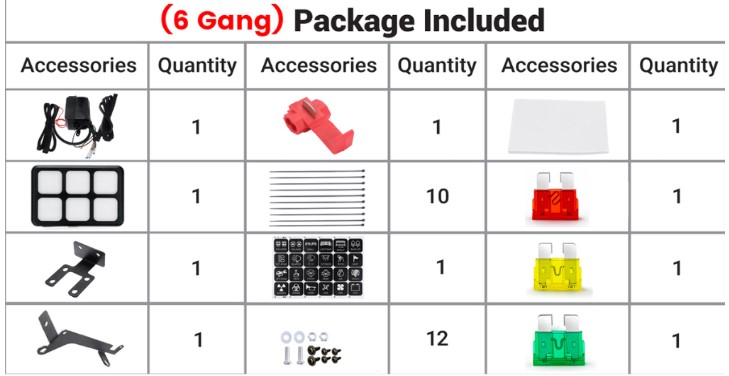

Package Contents
