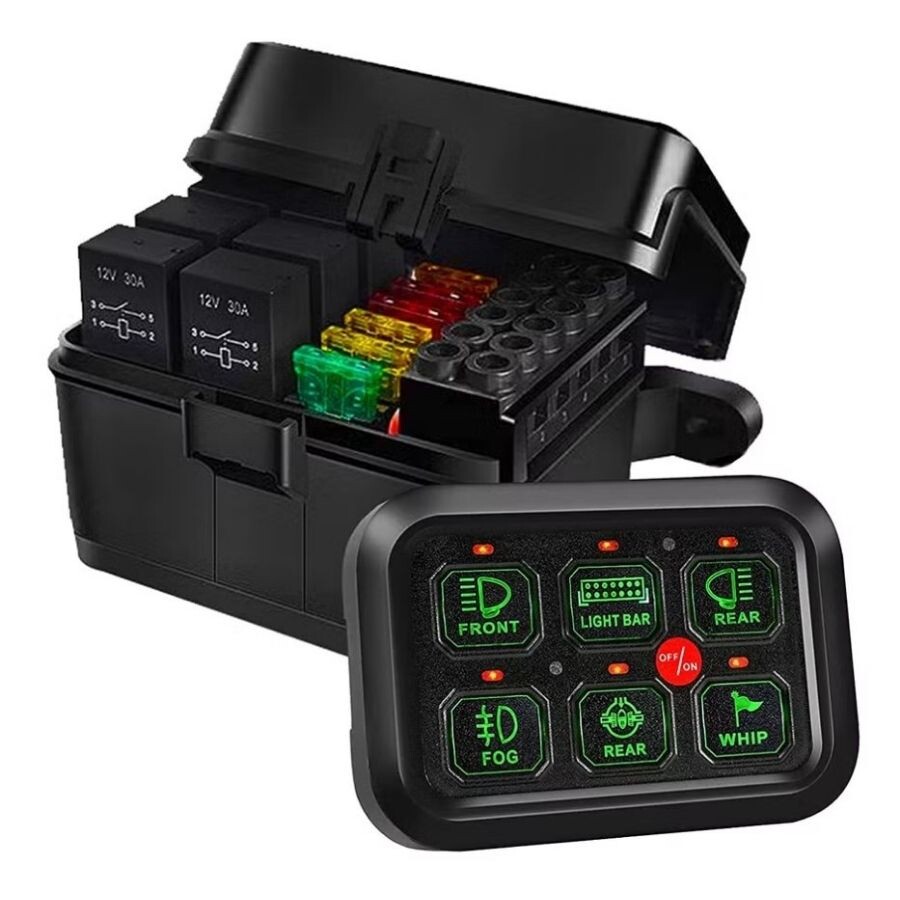

PN-SR6U6G 6-Gang Switch Panel Set with Relay Control System
The PN-SR6U6G 6-Gang Switch Panel Set with Relay Control System is designed to provide organized and convenient control of various vehicle electrical devices from a single location. Thanks to the panel's 6 independent control channels, auxiliary equipment such as lighting, water pumps, fans, horns, compressors, and similar devices can be switched on and off individually.
The system features a maximum total current capacity of 60A. Its built-in relay and fuse architecture enables centralized control of multiple auxiliary circuits. Additionally, protection features against overcurrent, overvoltage, reverse polarity, and overheating help enhance system safety.
Specifications
- Input Voltage: 12-24V DC
- Recommended Use: 12V vehicle and RV systems
- Maximum Total Current: 60A
- Maximum Power: Approx. 600W @ 12V
- Number of Channels: 6
- LED Illumination: Yes
- Automatic Dimming: Yes
- Relay / Power Control Module: Yes
- Fuse Protection: Yes
- Protection Rating: IP65
- Overcurrent Protection: Yes
- Overvoltage Protection: Yes
- Reverse Polarity Protection: Yes
- Over-temperature Protection: Yes
- Operating Temperature: Approx. -25°C to +80°C
- Dimensions:
- Relay Box: 114x74x92mm
- Control Box: 91x66x15mm
