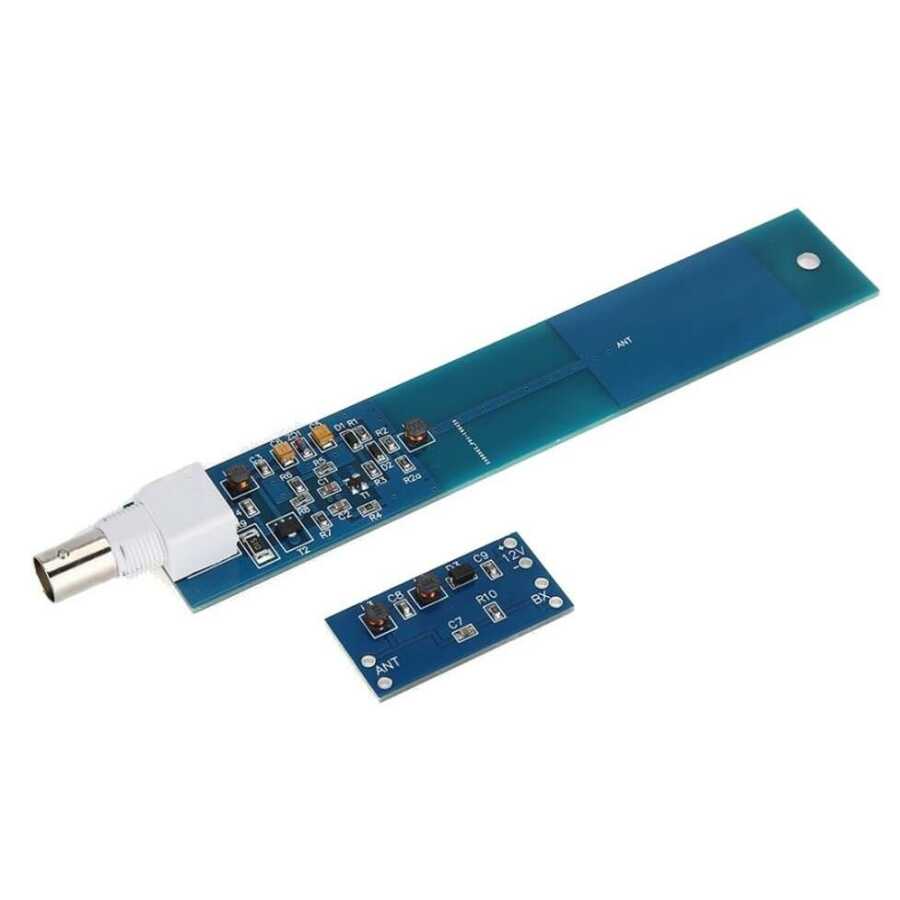

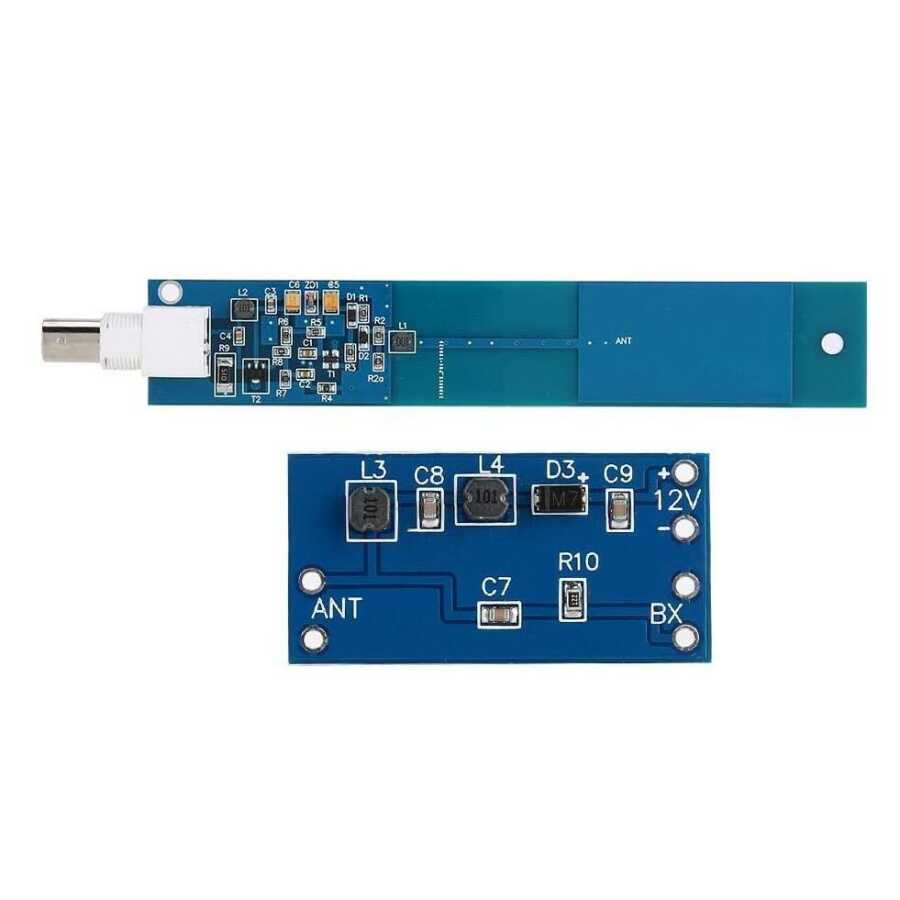

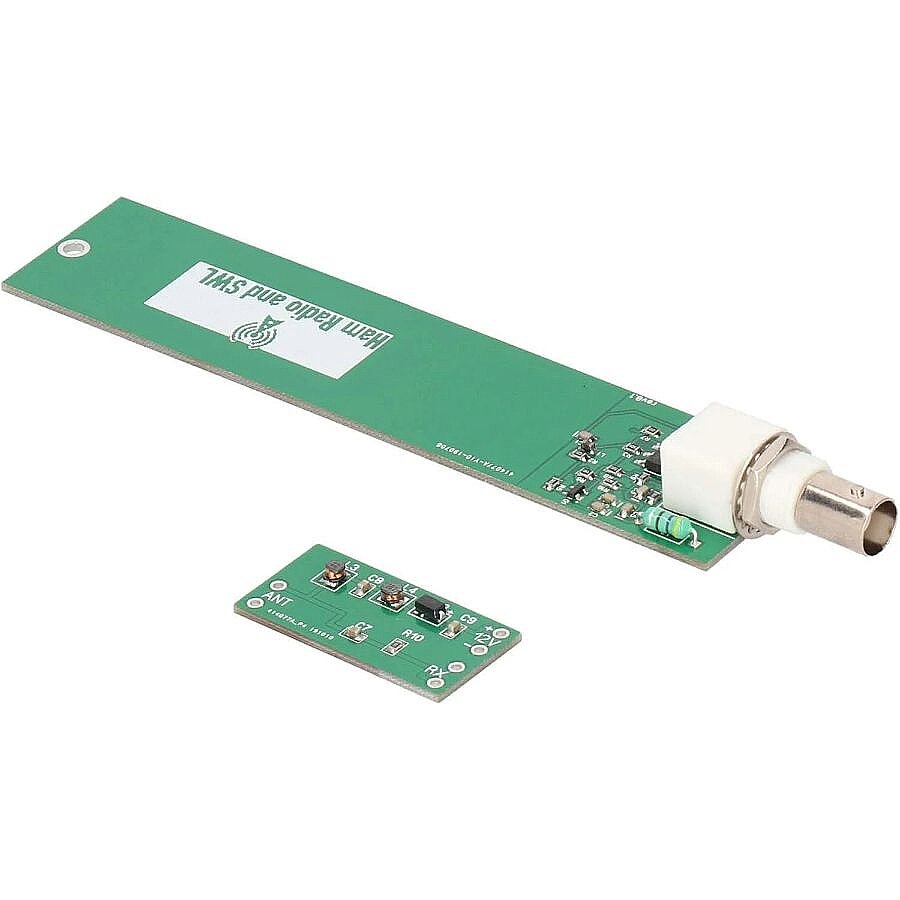

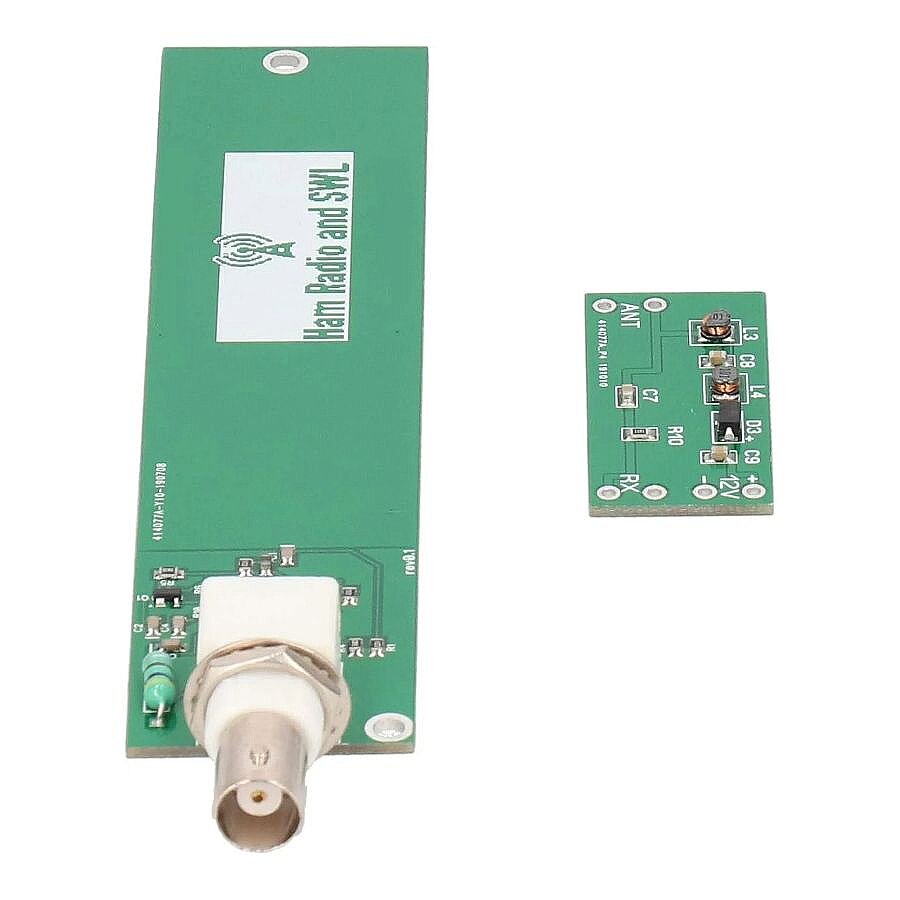

Portable Class A MiniWhip VLF LF HF Active Antenna Module

It is the new version using BF998 and BCX54 semiconductors.

True class A circuit, clean reception without IMD.

Coaxial connection

Broadband R/C connection to receiver, no transformer

Technical Specifications

Frequency range: 10 KHz - 30 MHz

Power: 12 - 15 volts at 150 mA

Quadratic output intercept: > + 70 dBm

Third-order output intercept: > + 30 dBm

Maximum output power: above - 15 dBm

PCB Size: 155 x 27mm

Connector : BNC

Feed line: 50 - 100 ohm coaxial cable up to 100 meters long

Note: Each antenna performs as well as its installation allows. Not just any active antenna will work well inside the house! It should be mounted outside and as high as possible. Place this Mini Whip antenna PCB in a suitable enclosure of your choice and mount it outside the home. You can use PVC pipe for casing. Do not use metal housing!

Portable Class A MiniWhip VLF LF HF Active Antenna Module
