Seeker-10 V2 1080P HD 10X Zoom UAV 3- Axis Gimbal Camera

SEEKER-10 V2 10X Optical Zoom Camera has 4 mega effective pixels, Supports 10X optical autofocus. It has a small size, light weight and compact structure. The 10x zoom camera offers 1080p FULL HD 30fps onboard video recording(H.264) and 1080p 60fps HDMI output for HD video transmission to the ground. SEEKER-10 V2 supports maximum 32G SD card.

SEEKER-10 V2 gimbal supports both PWM control, suitable for close-range remote control or remote data command control. It also supports serial command control. SEEKER-10 V2 can be applied in many areas such as military reconnaissance, police surveillance and evidence collection, disaster prevention, emergency monitoring and rescue.

Technical Specifications

Imager Sensor: 1/3" Exmor CMOS
Video Output: 1080P/60fps HDMI
Video Recording: 1080P/30 MOV
Focal Length: 10X optical focus zoom, 4.9-49 mm
Aperture: Φ12.0
Autofocus: less than 1 second
Wide Dynamic: up to 105dB
SD card: Max 32G, class 10, supports FAT32 format

Gimbal System:

Input voltage: 3S-4S
Static current: 240mA(@12v)
Dynamic current: 320mA(@12V)
Operating Temperature: -10 ℃ ~ +50 ℃

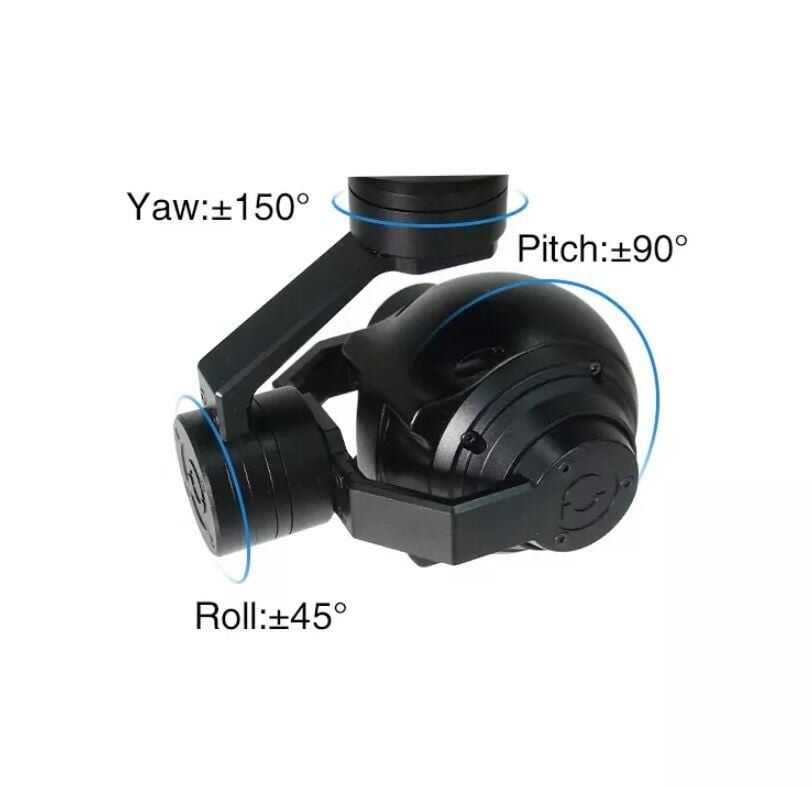

Control angle range: Pitch:±90° Roll:±45° Yaw:±150°
Control Sensitivity : Pitch & Roll: ±0.02°Yaw: ±0.03°

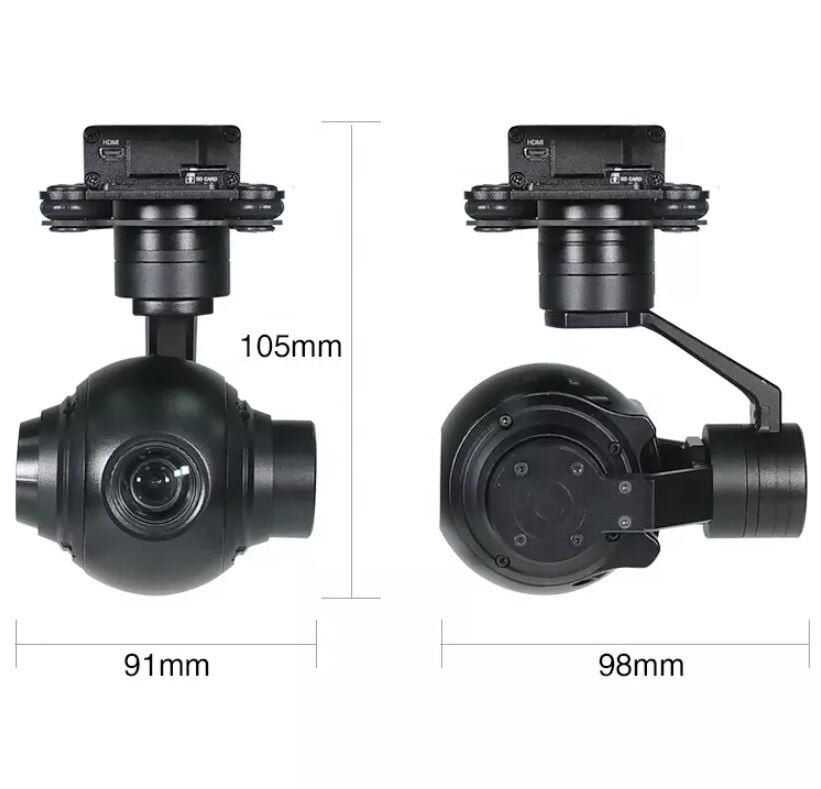

Dimension: 105x91x98mm
Weight: 400g
Control interface: PWM and serial command
