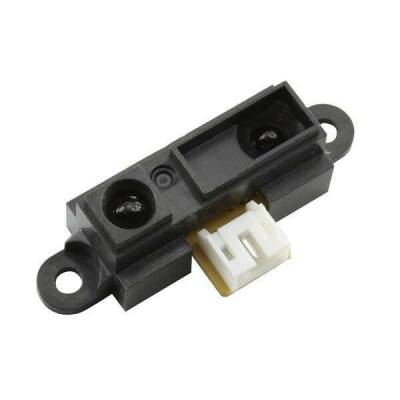

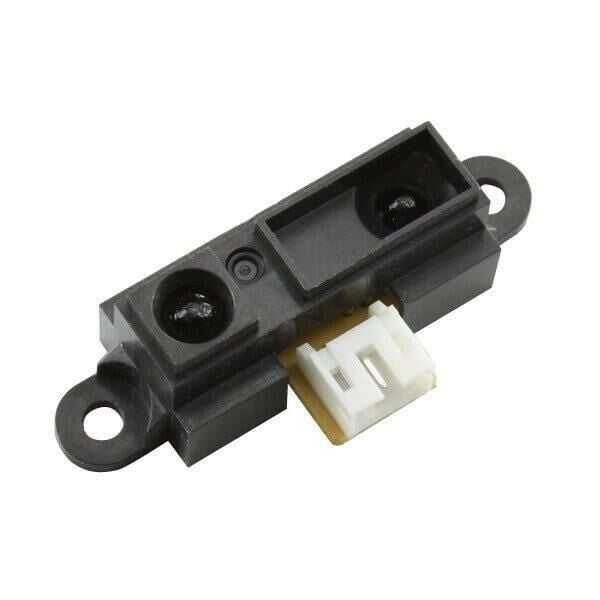

Sharp GP2Y0A41SK Distance Sensor; has a detection range of 4-30 cm. Thanks to its shorter measurement range, it provides high-resolution measurement results and provides successful results in detecting nearby objects. It gives analog voltage output according to the distance it measures.

Sensor Features:

Operating voltage: 4.5 V to 5.5 V

Average current consumption: 12 mA

Distance measuring range: 4 cm to 30 cm (1.5″ to 12″)

Output type: analog voltage

Output voltage difference over distance range: 2.3 V (typical)

Update time: 16.5 ± 4 ms

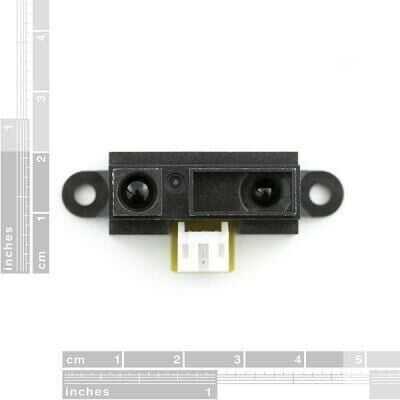

Size: 44.5 mm × 18.9 mm × 13.5 mm (1.75 mm ″ × 0.75 ″ × 0.53 ″)

Weight: 3.5 g (0.12 oz)

Arduino Wiring Diagram

Datasheet

Sharp GP2Y0A41SK 4-30cm Distance Sensor
