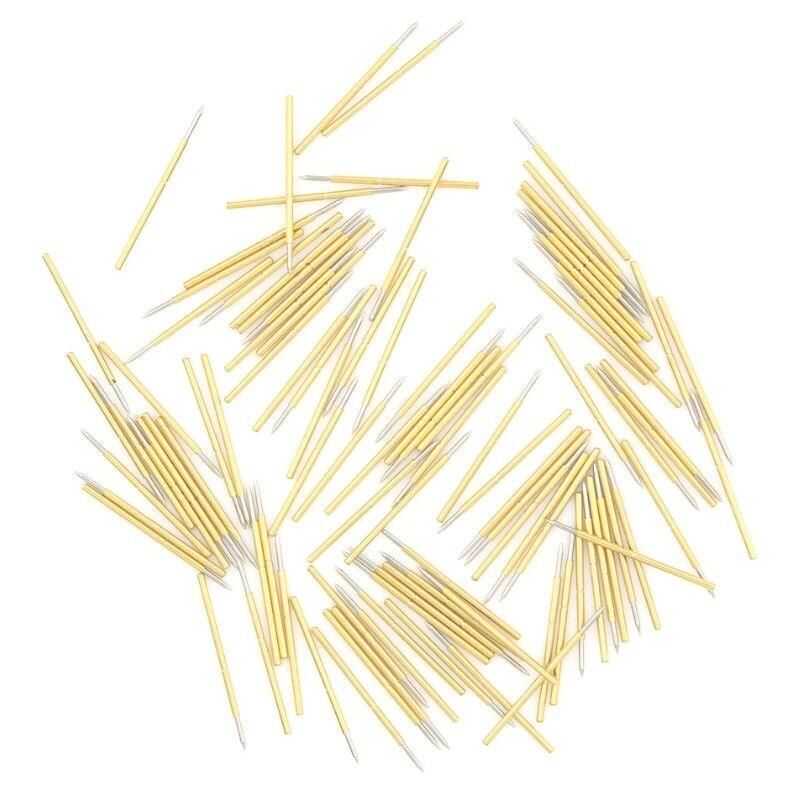

Spring Pogo P50-B1 Test Probe - 100 Pieces
Spring Pogo P50-B1 Test Probe allows you to test the electronic cards you will produce without soldering on them Allows. It can also be used in programming cards, saving the trouble of constantly unplugging the cards. Pins are spring loaded.
P50-B1 Features:
- Product Name: P50-B1-16mm
- Pin Center: 0.68mm
- Min Pressure Distance: 1.27mm
- Spring Pressure: 75g
- Full Stroke: 2.65mm
< LI>Maximum Current Rating: 3A- Piston: Heat Treated Beryllium Copper
- Barrel: Phosphor Bronze. Gold Plated
- Spring: stainless steel
