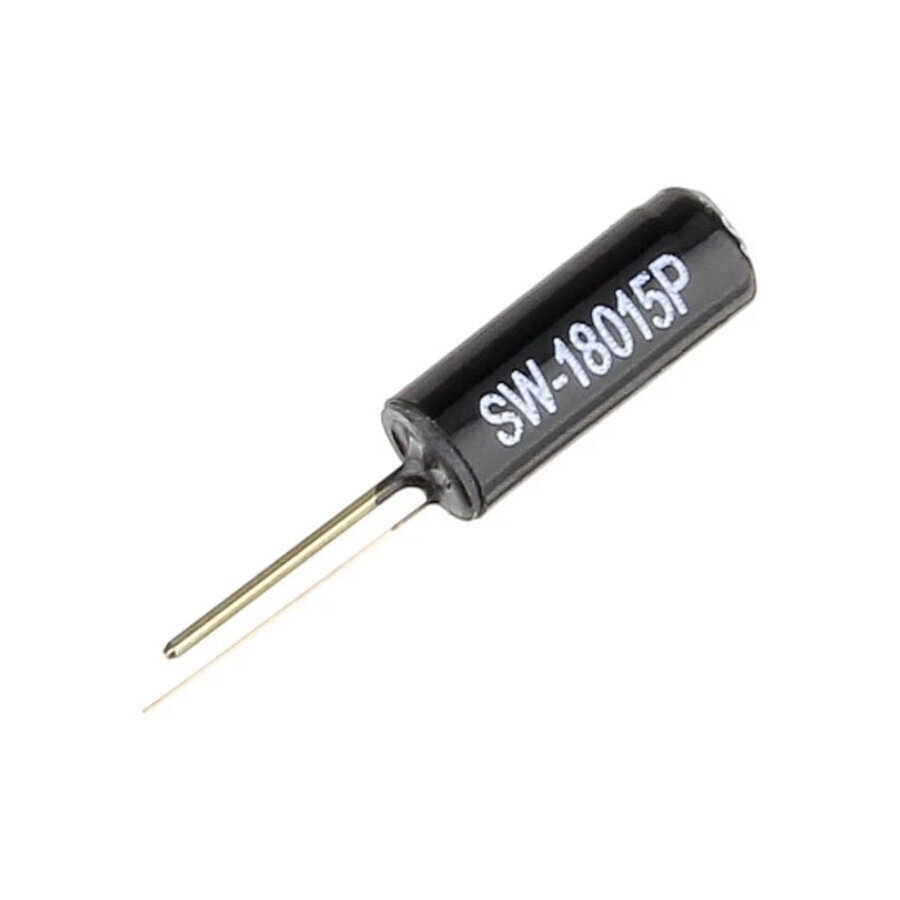

SW-18015P Vibration Sensor
This is a simple vibration switch. It is typically used in electronic applications, toys, alarm systems, home appliances, and smart home projects. SW18020 sensors are spring-type and are triggered regardless of the direction of vibration.
SW-18015P Vibration Sensor - Technical Specifications
- Operating Voltage: <12V
- Operating Current: <50mA
- Transmission Time: 2ms
- Closed Resistance: <30Ω
- Open Resistance: >10MΩ
- Operating Temperature Range: -40⁰C – 80⁰C
- Dimensions: 12x4.5mm
