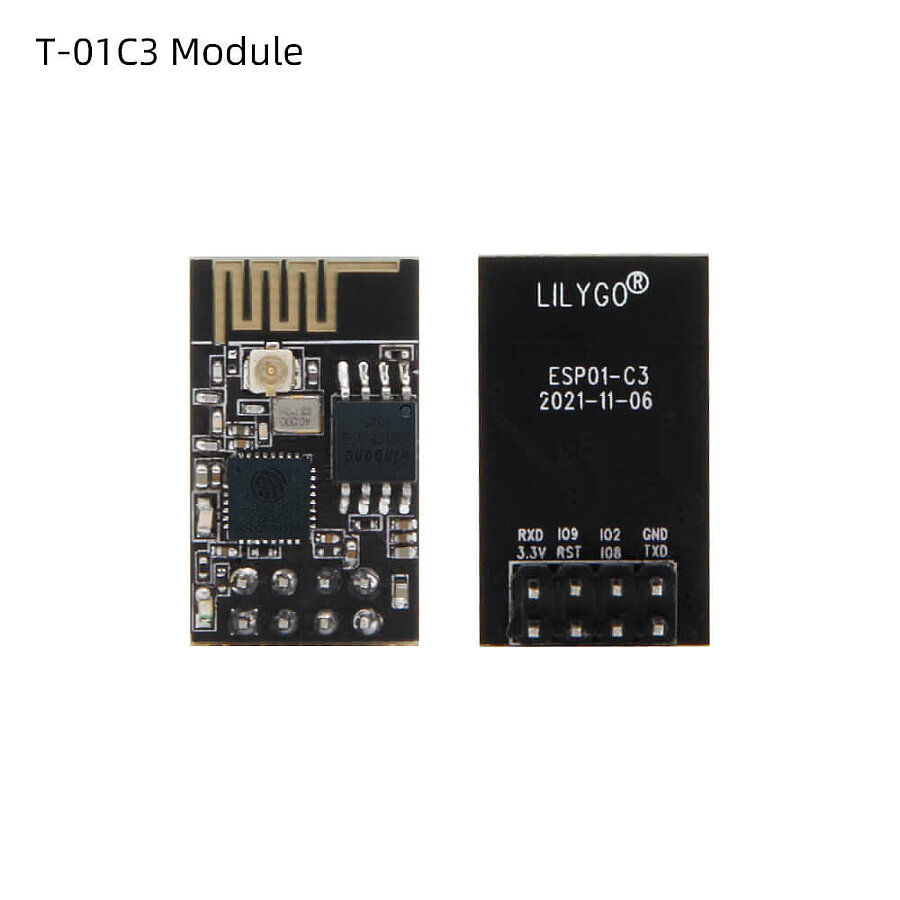

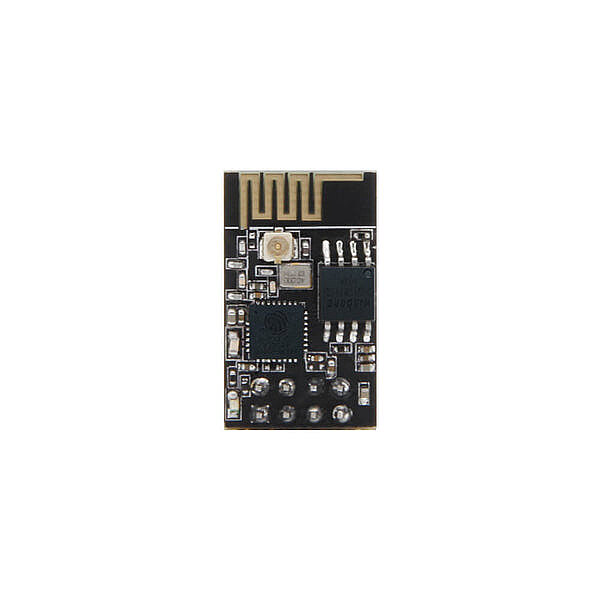

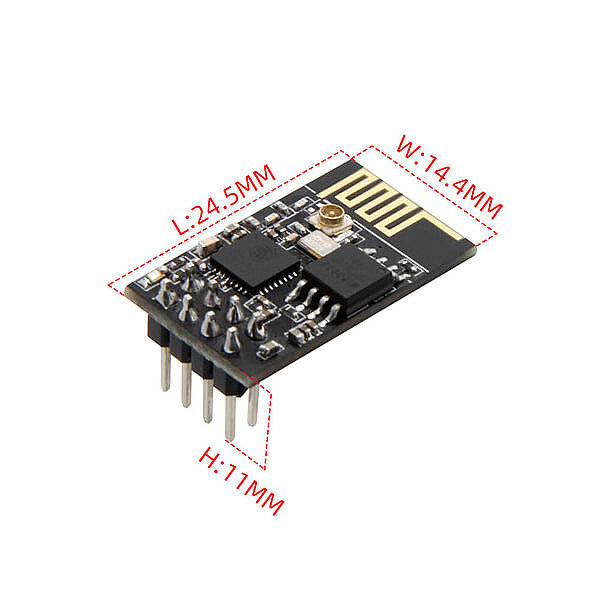

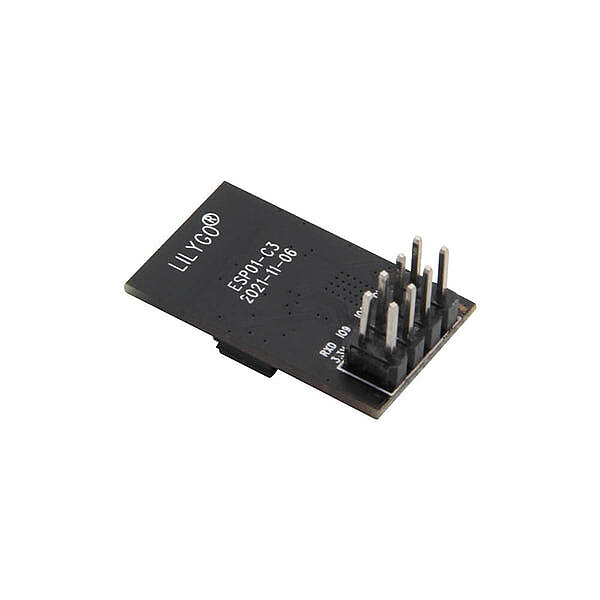

T-01 C3 ESP32-C3 Wi-Fi and Bluetooth LE Module

T-01 C3 ESP32-C3 Wi-Fi and Bluetooth LE Module

The T-01 C3 ESP32-C3 Wi-Fi and Bluetooth LE Module is an ESP32-C3-based Wi-Fi and Bluetooth development module designed with a compact ESP-01 style form factor. Despite its small size, it integrates a 32-bit RISC-V processor, 2.4GHz Wi-Fi, Bluetooth 5 Low Energy, and 4MB of Flash memory onto a single board.

The T-01C3 features 4MB of SPI Flash and does not include PSRAM. This configuration; It provides a suitable platform for IoT devices, wireless sensors, relay control, home automation, MQTT-based systems, and low-power wireless applications.

You can access the sample code and user manualhere.

Specifications

• SKU: H534

• Main MCU: ESP32-C3

• CPU Architecture: 32-bit RISC-V

• Number of Cores: 1

• Maximum CPU Frequency: 160MHz

• Flash Memory: 4MB

• SRAM: 400KB

• ROM: 384KB

• RTC SRAM: 8KB

• PSRAM: None

• Wi-Fi: IEEE 802.11 b/g/n

• Wi-Fi Frequency: 2.4GHz

• Bluetooth: Bluetooth 5

• Bluetooth Type: BLE / Low Energy

• Classic Bluetooth: None

• Supply Voltage: 3.3V DC

• GPIO Logic Level: 3.3V

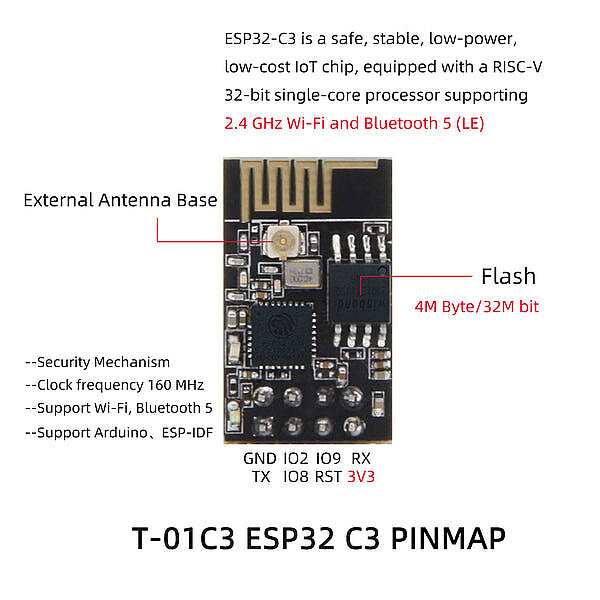

• Pin Configuration: 2×4

• Pin Pitch: 2.54mm

• Available External GPIO: 5
