T-Beam SUPREME Meshtastic UBLOX 868MHz SoftRF ESP32-S3 LoRa SX1262 Development Board
5.432,60
TL
+
VAT
6.519,12
TL
Notify Me When It Arrives
Notify Me When It Arrives
T-Beam SUPREME Meshtastic UBLOX 868MHz SoftRF ESP32-S3 LoRa SX1262 Development Board
The T-Beam SUPREME Meshtastic UBLOX 868MHz SoftRF ESP32-S3 LoRa SX1262 Development Board is a state-of-the-art ESP32-S3 Development Board specifically designed for radio transmission and tracking applications. It features a powerful ESP32-S3 dual-core processor, an advanced LoRa SX1262 module, U-Blox MAX-M10S-00B, and comprehensive GNSS support. These features make the LILYGO T-Beam SUPREME an exceptional choice for IoT developers seeking versatile, long-range, and low-power solutions.
Note: The SUPREME version includes both the main board and the expansion board. The CORE version only includes the motherboard and does not include an expansion board.
You can find other T-Beam models here.
Documents related to Meshtastic;
T-Beam Supreme Technical Specifications
| SKU | H659-Mesh |
| MCU | ESP32-S3FN8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth5 (LE) |
| Development | Arduino, PlatformlO-IDE, Micropython |
| Onboard functions | Boot (IO00) + Reset + Power Button |
| Flash | 8MB |
| PSRAM | 8MB |
| Six-axis IMU QMI8658 |

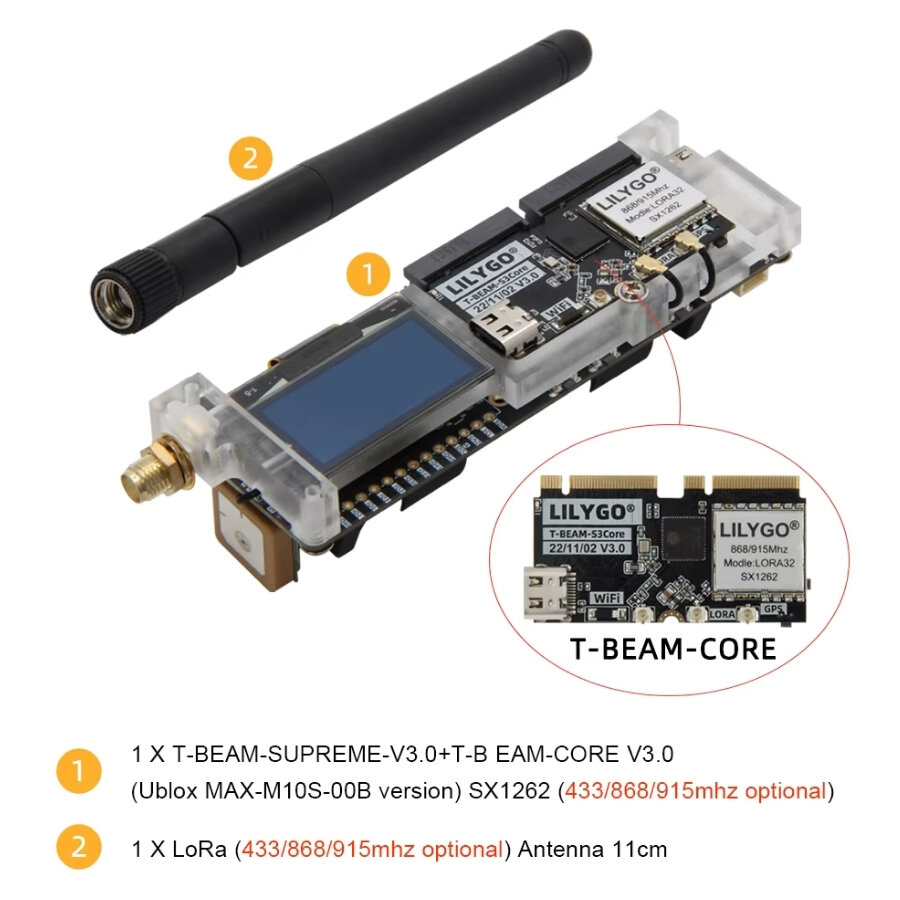

Package Content
- 1x T-Beam Supreme
- 1X Lora Antenna
Pinout
