T-Deck ESP32-S3 915MHz LoRa Development Module
4.659,80
TL
+
VAT
5.591,76
TL
Notify Me When It Arrives
Notify Me When It Arrives
T-Deck ESP32-S3 915MHz LoRa Development Module

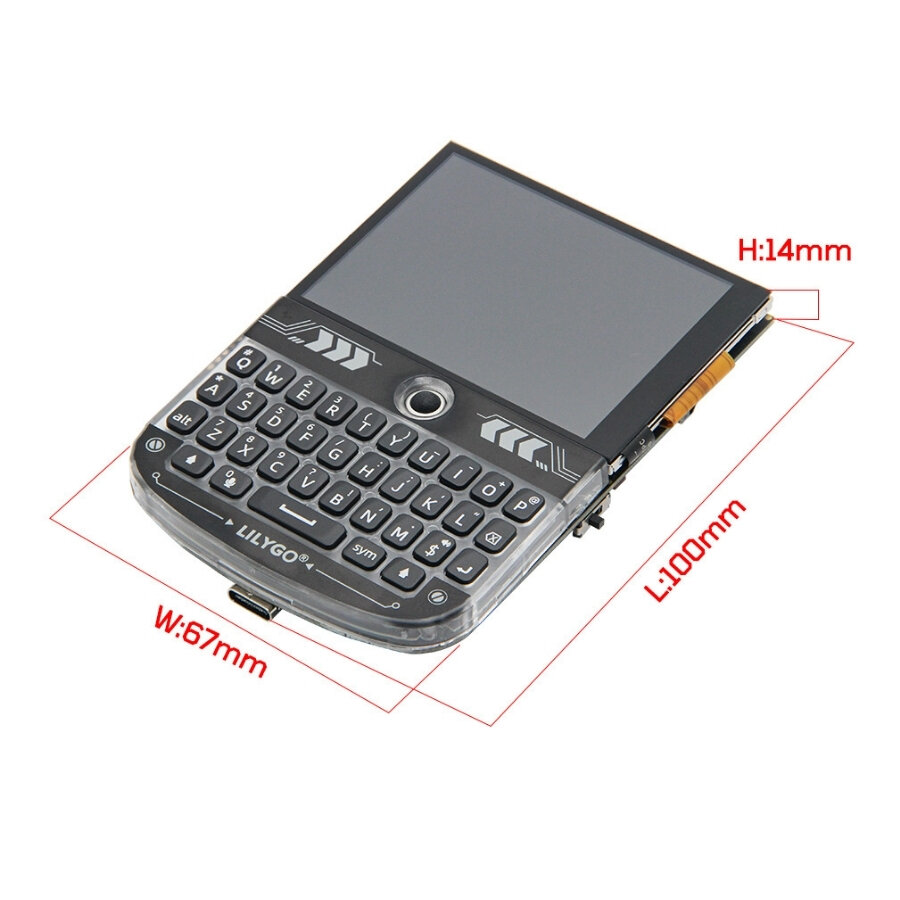

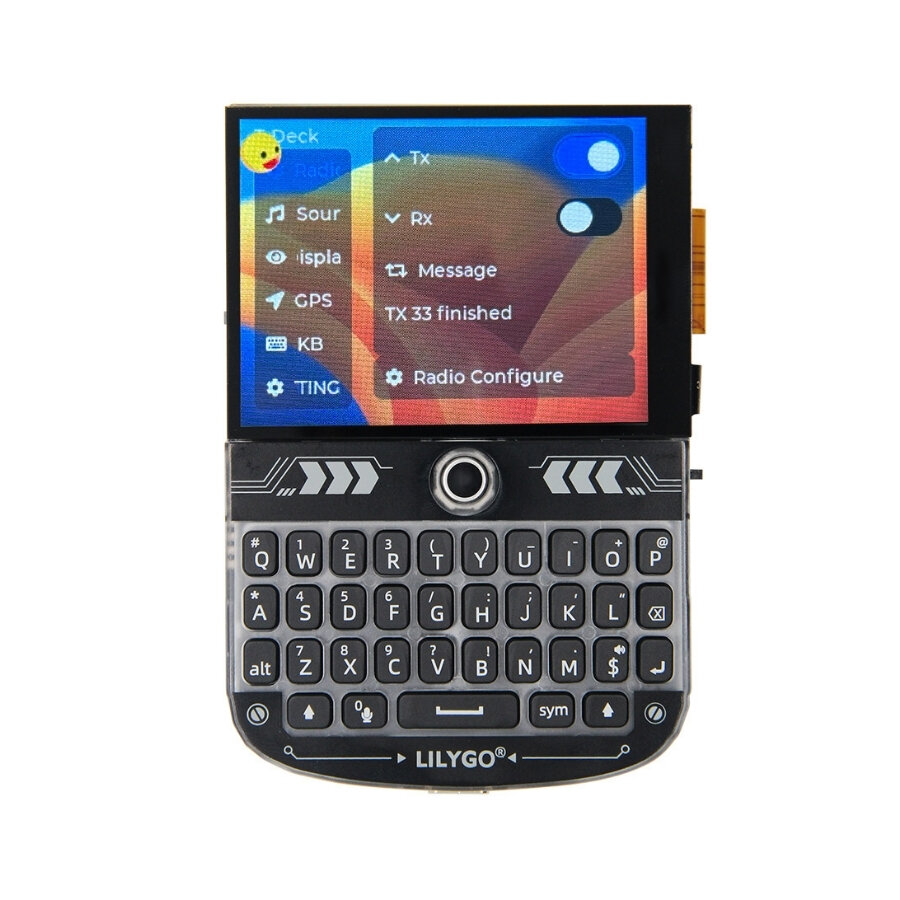

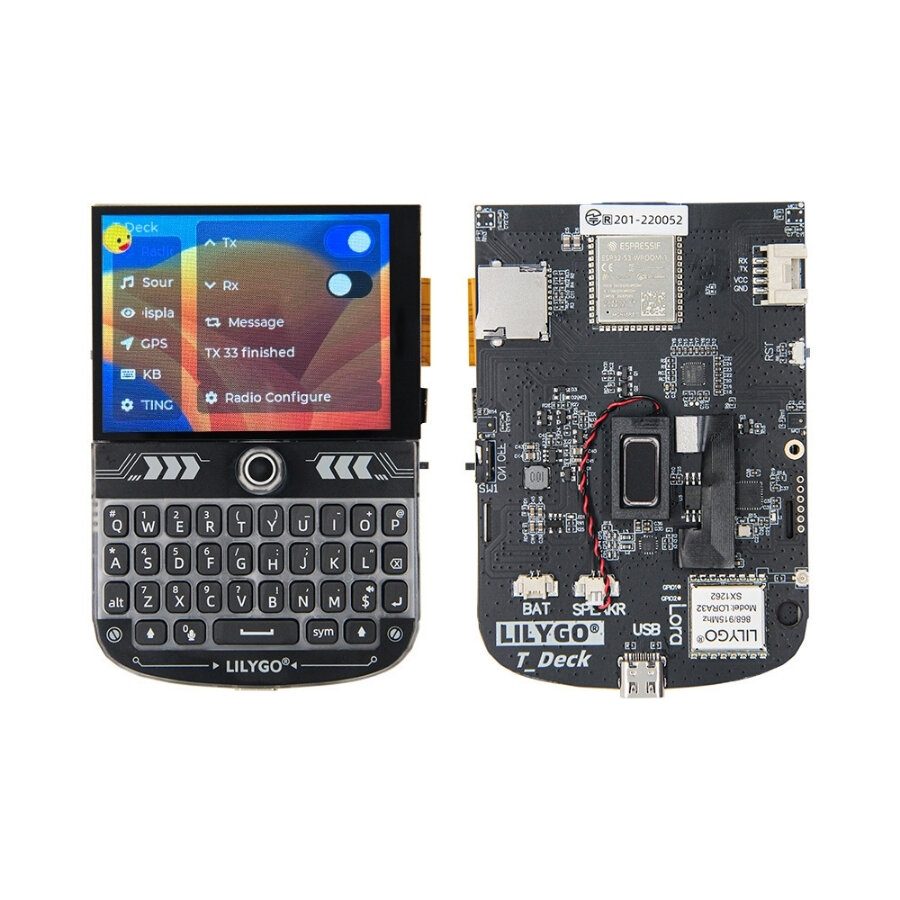

The T-Deck ESP32-S3 915MHz LoRa Development Module is a pocket-sized device featuring a 2.8-inch, 320 x 240 pixel IPS LCD screen, a mini keyboard, and an ESP32 dual-core processor. While not exactly a smartphone, you can use your programming knowledge to turn it into a standalone messaging device or coding software.
You can find other T-Deck models here.
You can find sample code and the user manual here.
T-Deck Plus Technical Features
| SKU | H642-A |
| MCU | ESP32-S3FN16R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth 5 (LE) |
| Development | Arduino, PlatformlO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Battery ADC PIN | IO04 |
| Onboard functions | Trackball,Microphone,Speaker |
| 2.8 inch ST7789 SPI Interface IPS LCD | Resolution: 320 x 240 Full viewing angle |
| SX1262 LoRa Transceiver | |
| Transmit power | +22dBm |
| Frequency | 915Mhz |
Package Content
- 1x T-Deck
- 1x FPC Antenna
- 1x Header (6P)
- 1x Power cable
Pinout
