T-Deck Plus Meshtastic ESP32-S3 915MHz LoRa Development Module
8.234,00
TL
+
VAT
9.880,80
TL
Notify Me When It Arrives
Notify Me When It Arrives

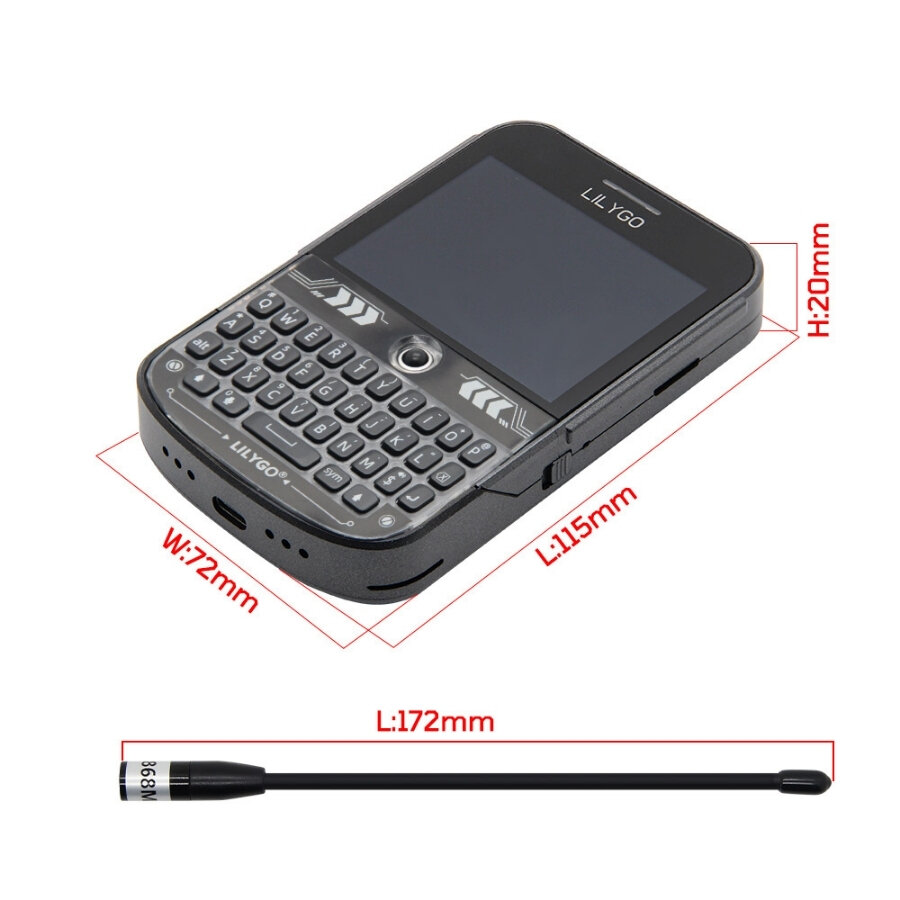

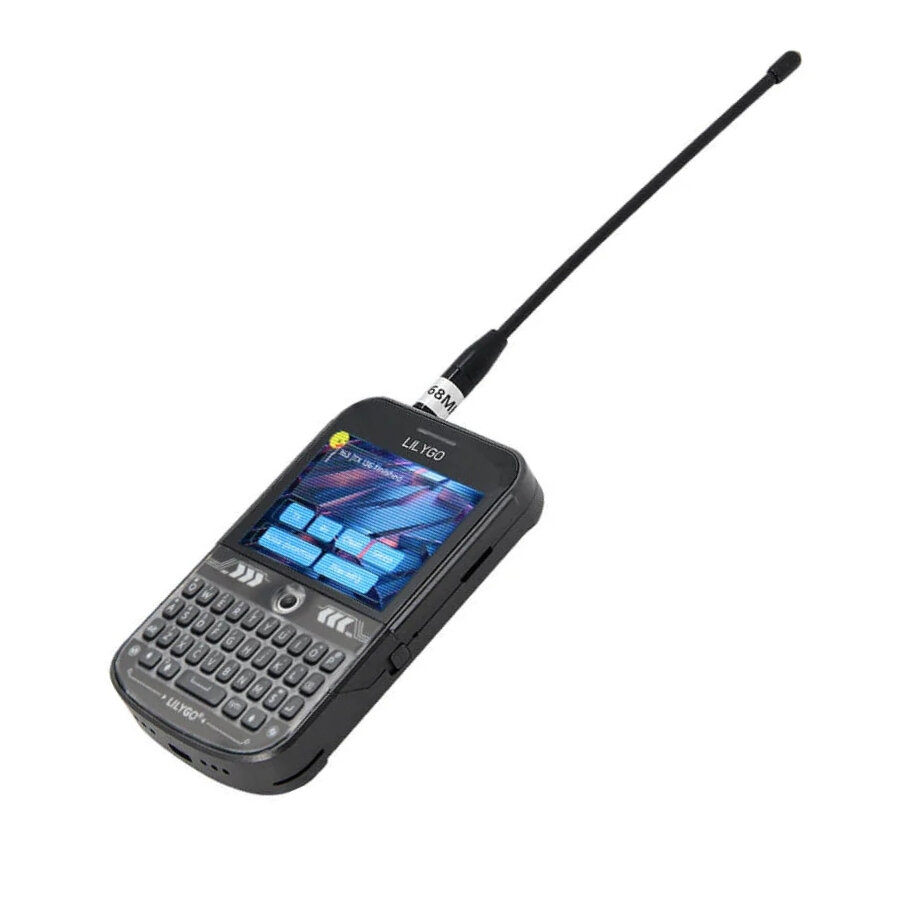

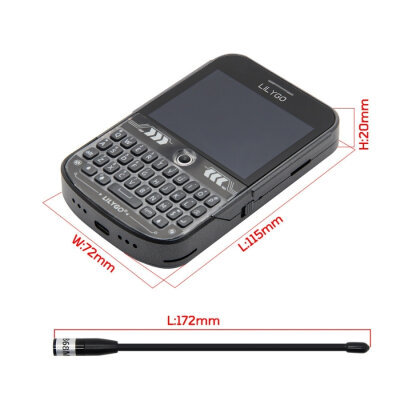

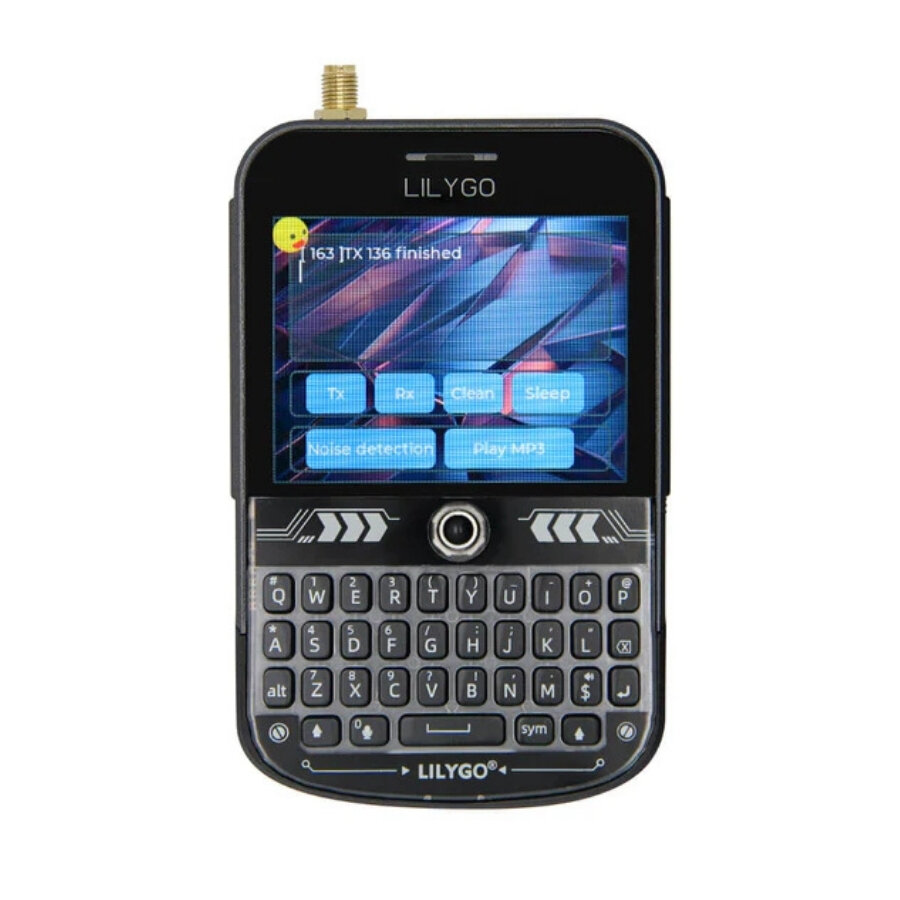

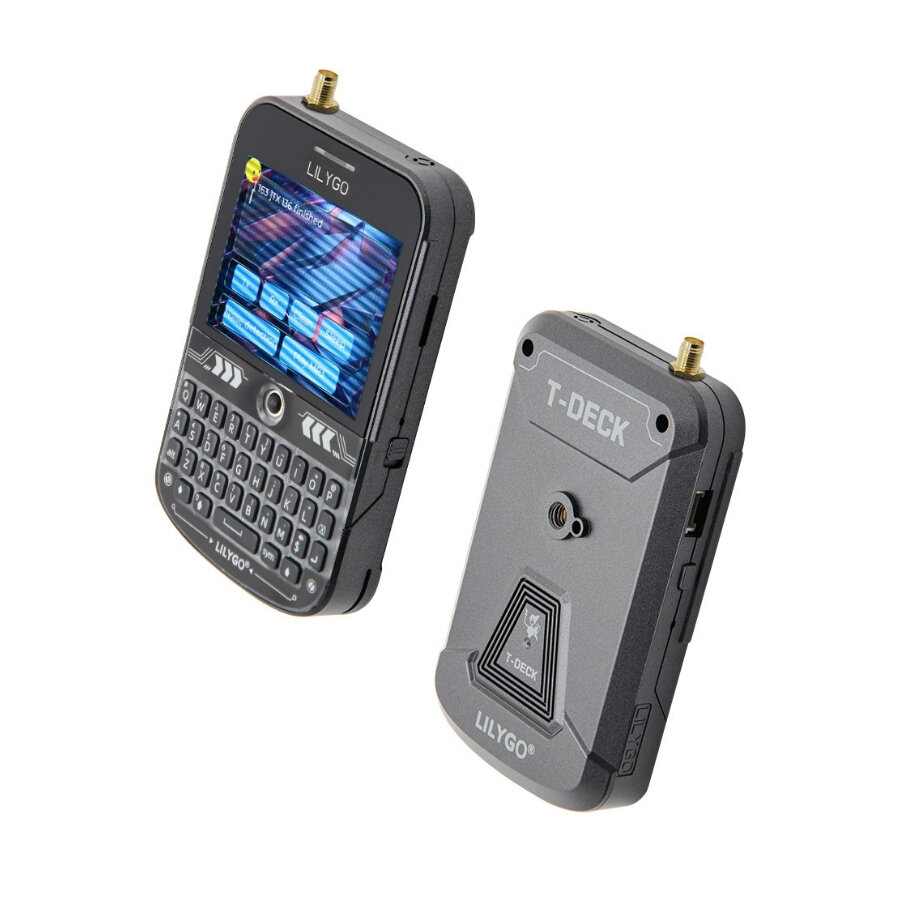

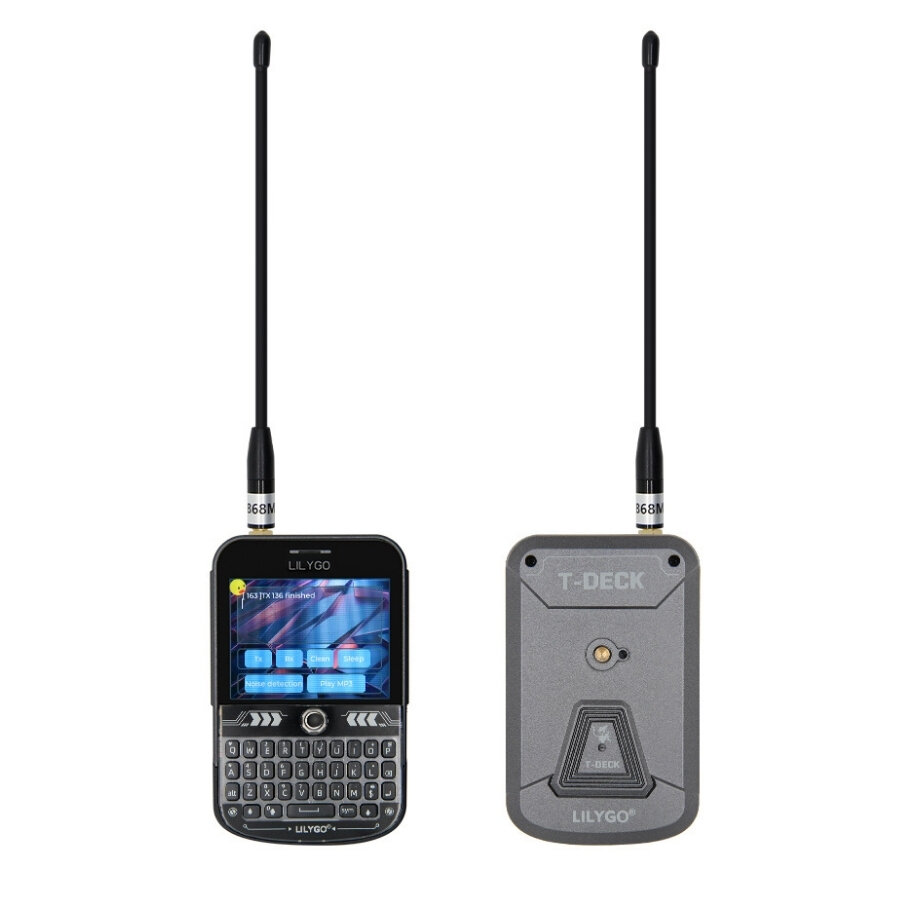

T-Deck Plus Meshtastic ESP32-S3 915MHz LoRa Development Module
The T-Deck Plus Meshtastic ESP32-S3 LoRa Development Module is an all-in-one IoT development kit designed for rapid prototyping of remote monitoring systems and interactive IoT applications. It features the ESP32-S3FN16R8 dual-core LX7 microprocessor. By combining multi-protocol wireless connectivity, precise positioning, long-range communication, and intuitive physical input, it offers a versatile solution for developers. It has a built-in 2000 mAh battery.
You can find other T-Deck Plus models here.
You can find sample code and user manual here.
T-Deck Plus Technical Specifications
| SKU | H737-03-Mesh |
| MCU | ESP32-S3FN16R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth 5 (LE) |
| Development | Arduino, PlatformlO-IDE, Micropython |
| Flash | 16MB |
| PSRAM | 8MB |
| Battery ADC PIN | IO04 |
| Onboard functions | GPS,TF Card,Microphone,Speaker |
| 2.8 inch ST7789 SPI Interface IPS LCD | Resolution: 320 x 240 Full viewing angle |
| SX1262 LoRa Transceiver | |
| Transmit power | +22dBm |
| Frequency | 915Mhz |
Package Content
- 1x T-Deck Plus
- 1x External Antenna
Pinout
