T-ECHO Meshtastic 433MHz LoRa SX1262 Wireless Module

T-ECHO Meshtastic 433MHz LoRa SX1262 Wireless Module

The T-ECHO Meshtastic 433MHz LoRa SX1262 Wireless Module is an advanced IoT development board offering enhanced Meshtastic compatibility, improved Bluetooth performance, and optimized low power consumption. Designed for robust wireless communication in harsh environments, the LILYGO T-ECHO integrates multiple high-performance components to support a wide range of IoT and remote sensing applications.

At the heart of the LILYGO T-ECHO is the nRF52840 Bluetooth 5 SoC, a powerful and energy-efficient chip supporting multi-protocol communication including Thread and Zigbee, making it ideal for mesh networks, smart home systems, and industrial IoT applications. This upgrade significantly improves Bluetooth connectivity, response speed, and interoperability with modern wireless ecosystems.

Continuing the LoRa functionality of the T-BEAM series, the LILYGO T-ECHO incorporates the LILYGO SX1262 wireless transceiver module based on the Semtech SX1262 LoRa RF chip. Thanks to the SX1262, it provides exceptionally long-range communication with a maximum output power of +22dBm and a reception sensitivity of -139dBm. The integrated TCXO 32 MHz crystal oscillator ensures high stability and sensitivity in both transmission and reception. With automatic transceiver switching and advanced LoRa spread spectrum technology, LILYGO T-ECHO offers robust anti-interference capabilities, ensuring secure and reliable data transmission over long distances.

To further enhance its use in environmental monitoring, the LILYGO T-ECHO BME280 variant includes the Bosch BME280 sensor, providing accurate measurements of temperature, humidity, and atmospheric pressure. This integration makes the device a complete solution for real-time environmental data collection; ideal for weather stations, agricultural monitoring, and remote sensing nodes.

In summary, LILYGO T-ECHO is a feature-rich, low-power wireless development platform that combines LoRa, Bluetooth 5, and environmental sensing on a compact and programmable board; It is perfect for developers who are developing long-range, low-power, and multi-protocol IoT systems.

You can find other T-ECHO models here.

Documents related to Meshtastic;

Github

InkHUD

T-Echo Hardware Buttons

You can find frequently asked questions about T-ECHO here.

T-ECHO Certificates

• FCC
• CE
• MIC

T-ECHO Technical Specifications

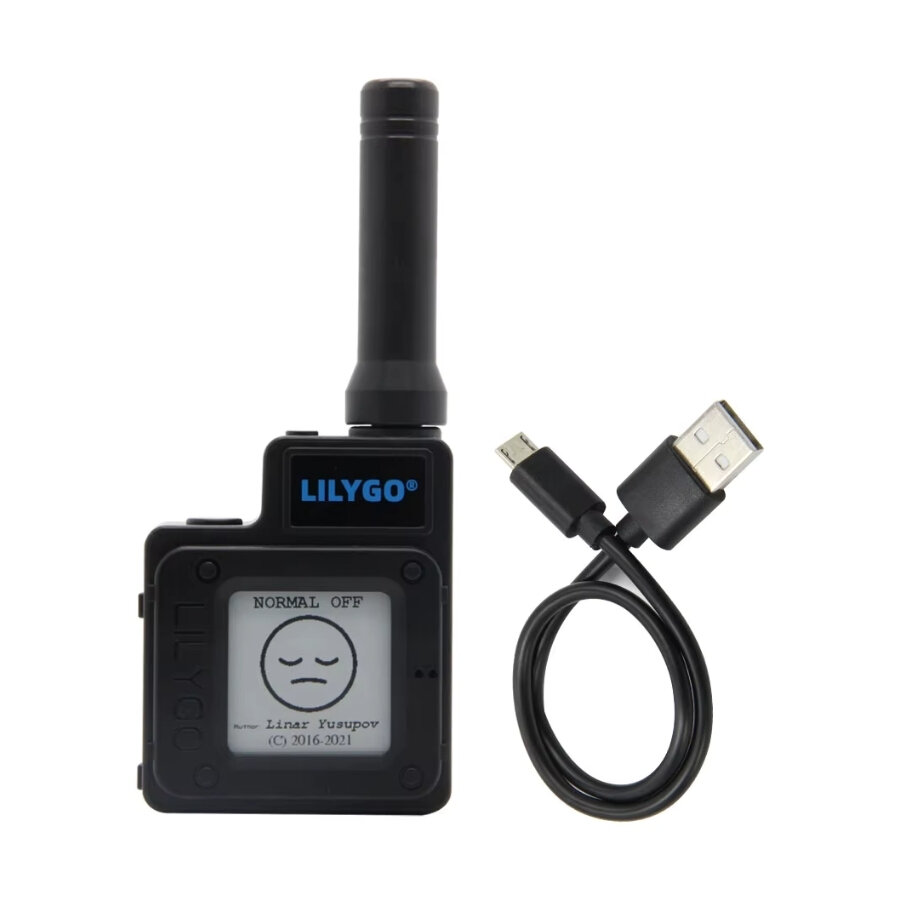

Package Content

• 1x T-ECHO
• 1X USB Cable

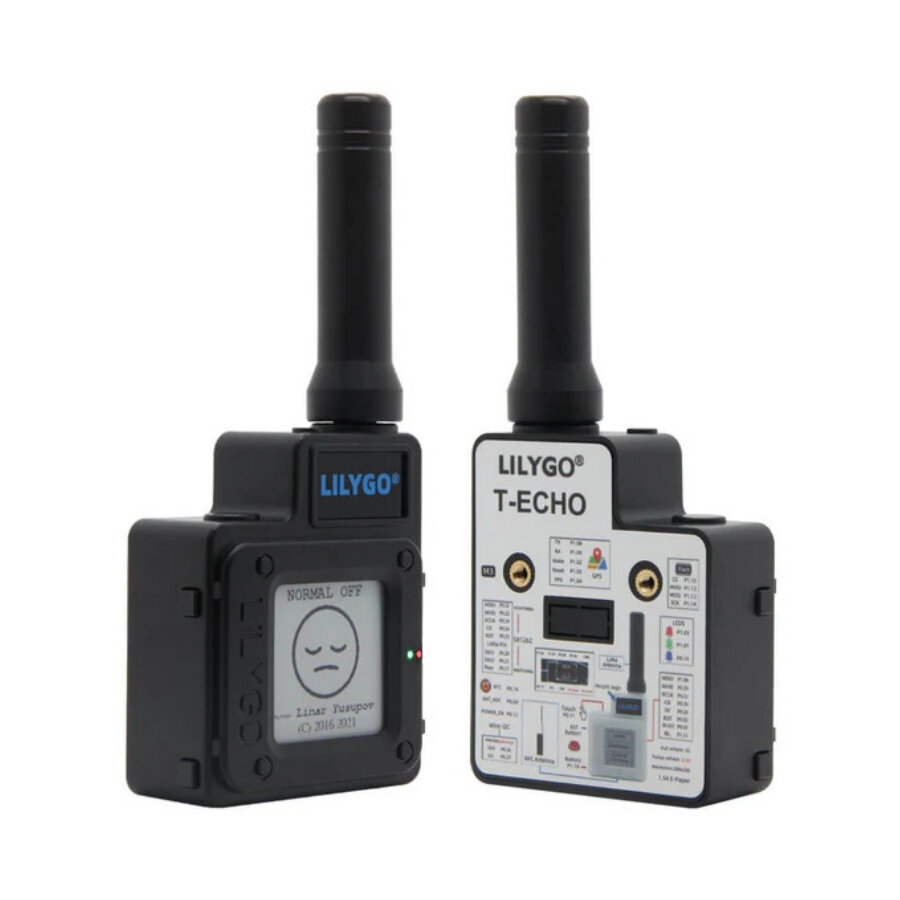

Pinout
