T-Embed CC1101 Plus ESP32-S3 Development Board - Black
5.598,20
TL
+
VAT
6.717,84
TL
Notify Me When It Arrives
Notify Me When It Arrives
T-Embed CC1101 Plus ESP32-S3 Development Board - Black
The T-Embed CC1101 Plus ESP32-S3 Development Board - Black is a feature-packed, all-in-one IoT development console designed to create advanced wireless communication systems, smart home controllers, and portable monitoring devices. It features an ESP32-S3 dual-core microprocessor. Integrated with multi-band RF transceivers, NFC, infrared, and a vibrant IPS LCD, this device combines long-range connectivity, interactive control, and rich expandability for professional developers and tech enthusiasts.
The CC1101 has a built-in Sub-GHz module based on the transceiver and radio antenna (maximum range is 50 meters).
Both the CC1101 chip and the antenna are designed to operate on frequencies in the 300-348 MHz, 387-464 MHz, and 779-928 MHz bands.You can find other T-Embed CC1101 models here.
You can find sample code and the user manual here.
T-Embed CC1101 Plus Technical Specifications
| SKU | K268-A |
| MCU | ESP32-S3 Dual-core LX7 microprocessor |
| Flash | 16MB |
| Programming Platform | Arduino-ide、ESP-IDF |
| RSRAM | 8MB |
| Onboard functions | Reset + Boot Button, IR Transmit & Receive |
| Bat voltage detection | IO04 |
| Wireless | Wi-Fi 802.11 b/g/n，BLE 5 |
| Support | Worldwide 2.4GHz ISM band operation |
1.9 inch ST7789V IPS color TFT LCD | |
| Interface | SPI |
| Drive Chip | ST7789 |
| Resolution | 170(H)RGBx 320(V) |

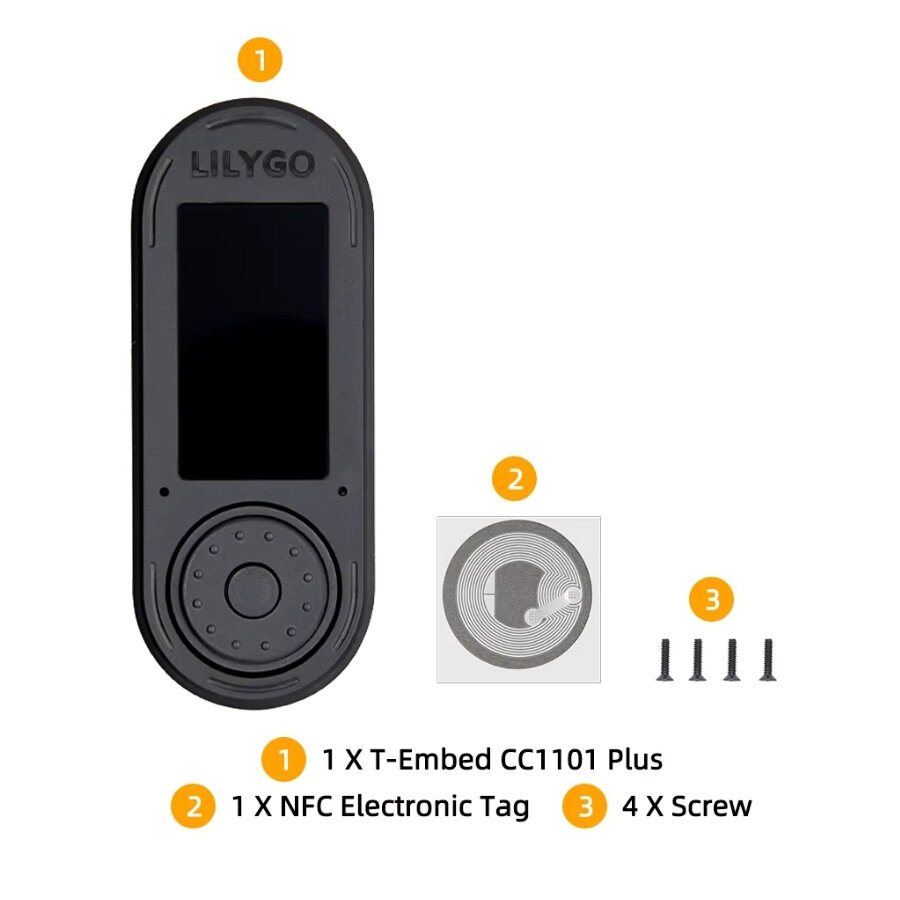

Package Content
- 1x T-Embed CC1101 Plus
- 1X NFC Electronics Tag
- 4x Screw
Pinout
