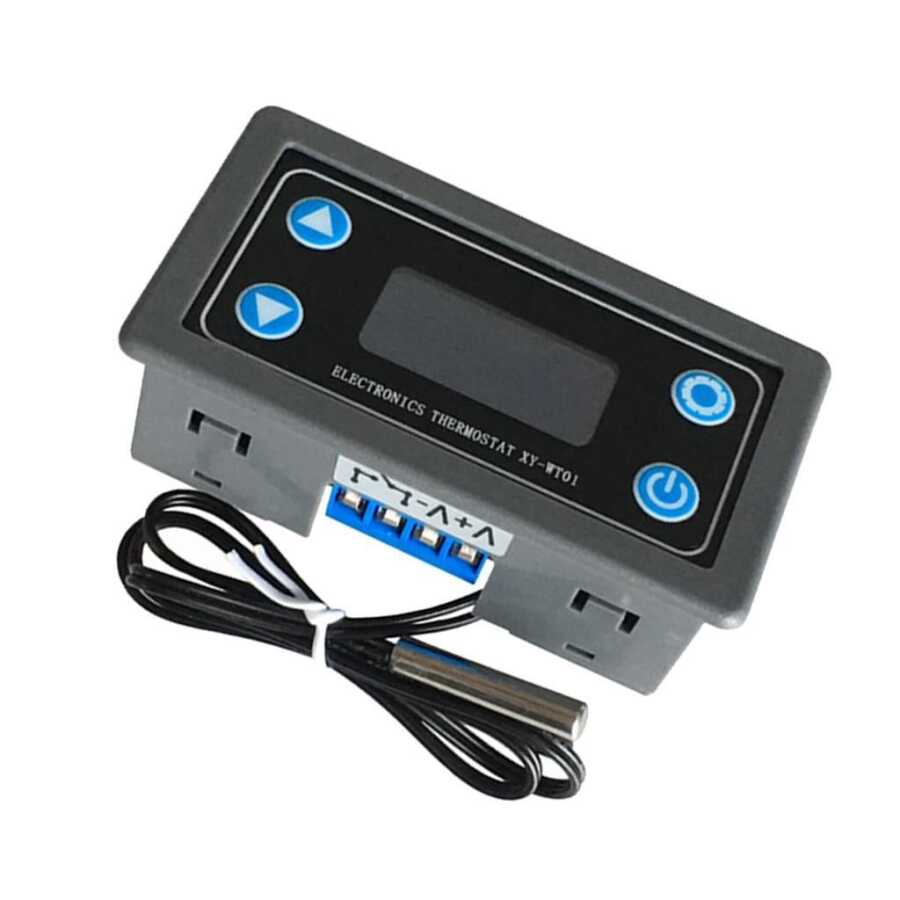

Temperature Controller - Digital Thermostat with Relay Output XY-WT01
Category:
Temperature and Humidity Adjustable Relay BoardsBrand:
MotorobitProduct code :
RLK.SCK.01.000005
489,50
TL
+
VAT
587,40
TL
Notify Me When It Arrives
489,50
TL
+
VAT
587,40
TL
Add to Favorite
RecommendCommentAlarm Price
Temperature Control Device - Digital Thermostat with Relay Output
You can use it in your smart home projects, incubation and temperature controlled operations. It is controlled and values are entered with the help of 4 buttons on the product.
Usage Video:
Features:
- LCD display
- Emergency stop function
- Real-time display temperature
- Automatically save parameters
- Support UART Set
- High temperature buzzer alarm
- Operating status indicator
- Wide delay start time range
Parameters:
- Product Number: XY-T01
- Operating Voltage: DC 6V-30V
- Control Load Current: 10A (Max)
- LCD refresh rate: 0.5 seconds
- Temperature Sensor: NTC-10K B3950
- Test Temperature: -50 ~ 110 ℃
- Control sensitivity: 0.1 ℃
- Sensor length: 0.5 meter
- Sensor probe specifications : 4 * 30mm Stainless steel
- Physical size: 68 * 42 * 21mm
Operating Modes of the Product
Heating mode " H":
When the detected temperature is lower than or equal to the set temperature - hysteresis temperature, the relay opens and the heating device starts to work;
When the detected temperature is equal to or greater than the set temperature, the relay is disconnected and the heating device stops working;
Cooling mode "C" :
When the detected temperature is equal to or greater than the set temperature + hysteresis temperature, the relay opens and the cooling equipment starts to work;
When the detected temperature is lower than or equal to the set temperature, the relay is disconnected and the cooling equipment stops working;
High temperature alarm function ALA:
Starting temperature, stop temperature, temperature correction etc. Parameters such as can be set from within the UART;
When the actual temperature is equal to or greater than the alarm temperature, the system turns on the sound and light alarm and press any key to stop the sound and light;
Delayed start OPH:
When a normal heating or cooling operation is completed, the system starts timing T. However, only after T greater than or equal to KOH, the system can perform the next heating or cooling operation;
Temperature correction function OFE (-10.0 ~ 10.0 degrees Celsius):
The system may operate for a long time and deviations may occur. This function is corrected by actual temperature = measured temperature + calibration value;
Parameter remote reading / setting:
Temperature real-time reporting:
If the temperature reporting function is enabled, product detection It transmits the detected temperature to the terminal via UART at 1 s intervals;
Relay active (default on):
If the relay is closed, the relay remains closed;
Restore factory settings:
STOP at the same time , press SET 3S or more to restore factory settings.
