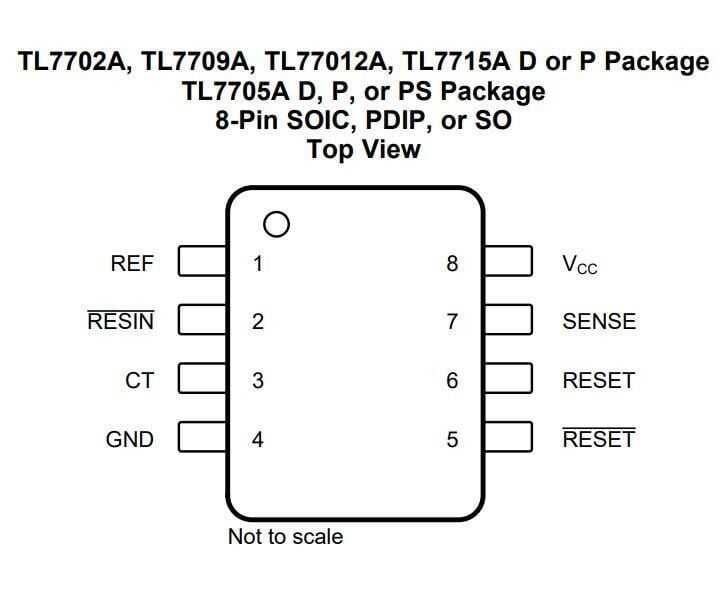

TL7705 DIP8 Integrated

TL7705 is a single-supply Voltage Supervisor with programmable time delay for 5V systems. They are specifically designed for use as reset controllers in microcomputer and microprocessor systems. The supply voltage controller monitors the supply for low voltage conditions at the SENSE input. During power-up, the RESET output becomes active (low) when VCC reaches a value approaching 3.6V. At this point (assuming SENSE is on VIT+), the delay timer function activates a time delay, after which the RESET and RESET outputs are disabled (high and low respectively). When a low voltage condition occurs during normal operation, RESET and RESET are activated.
