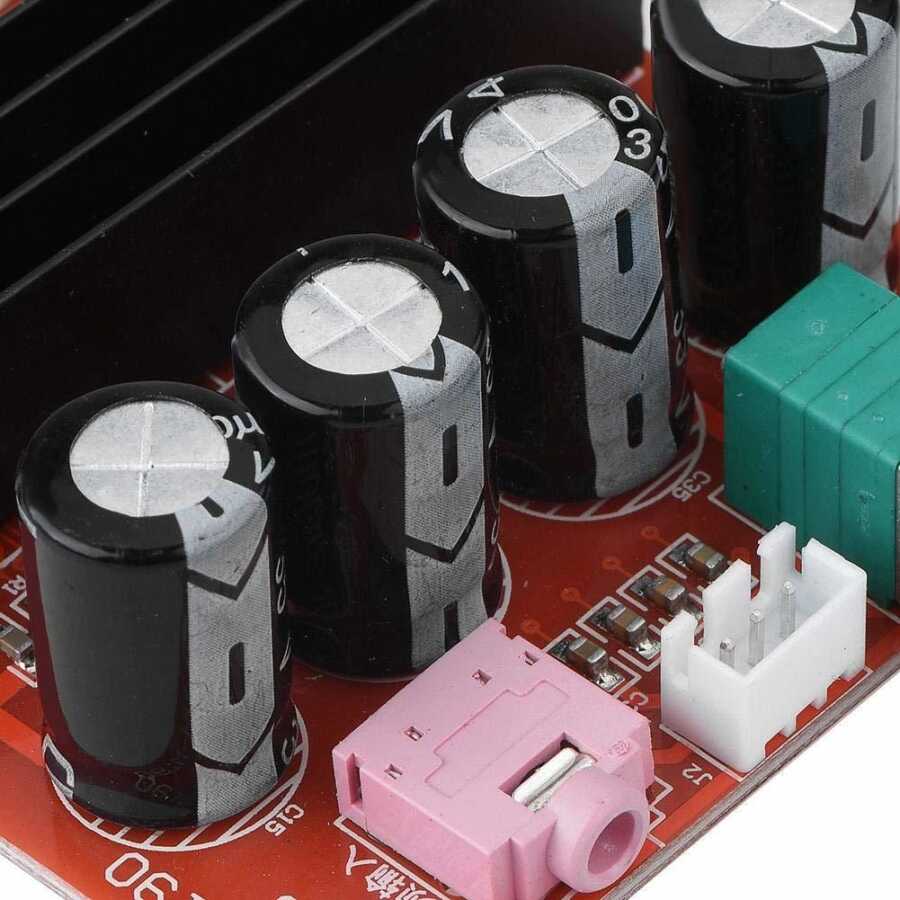

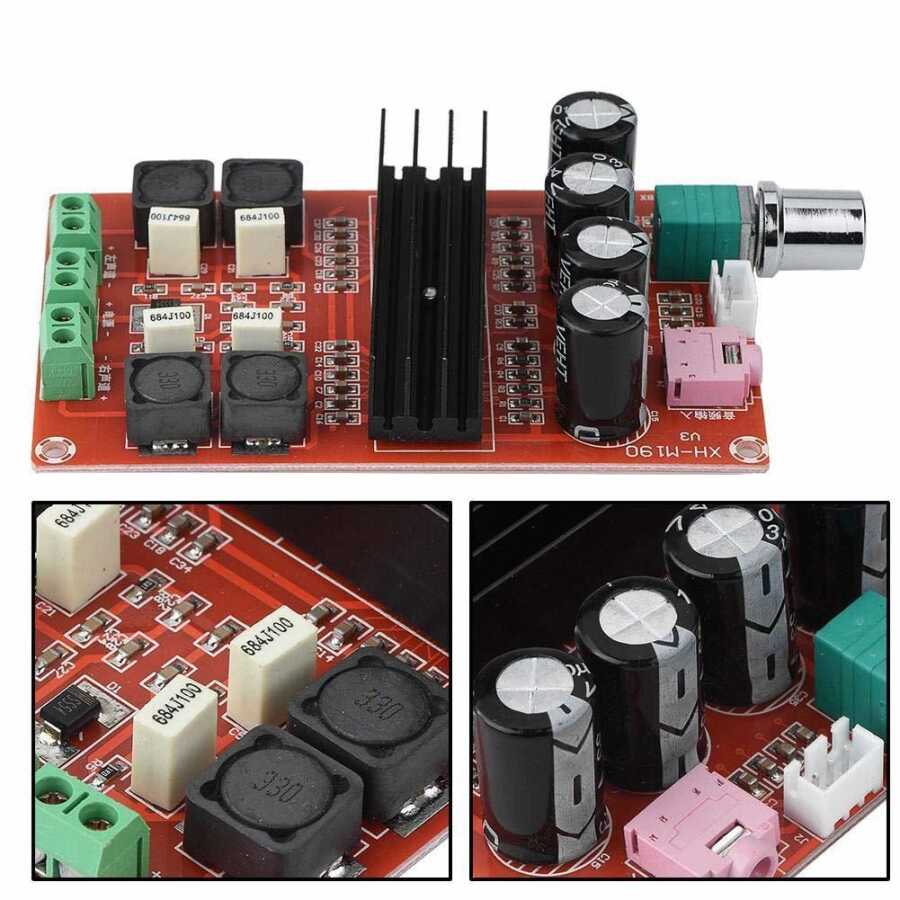

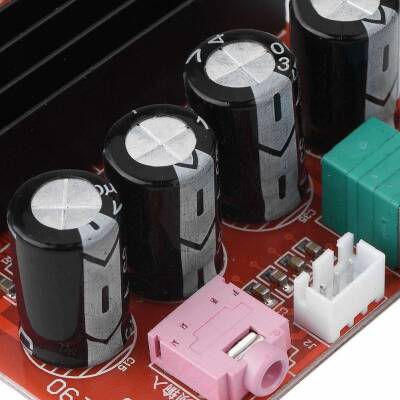

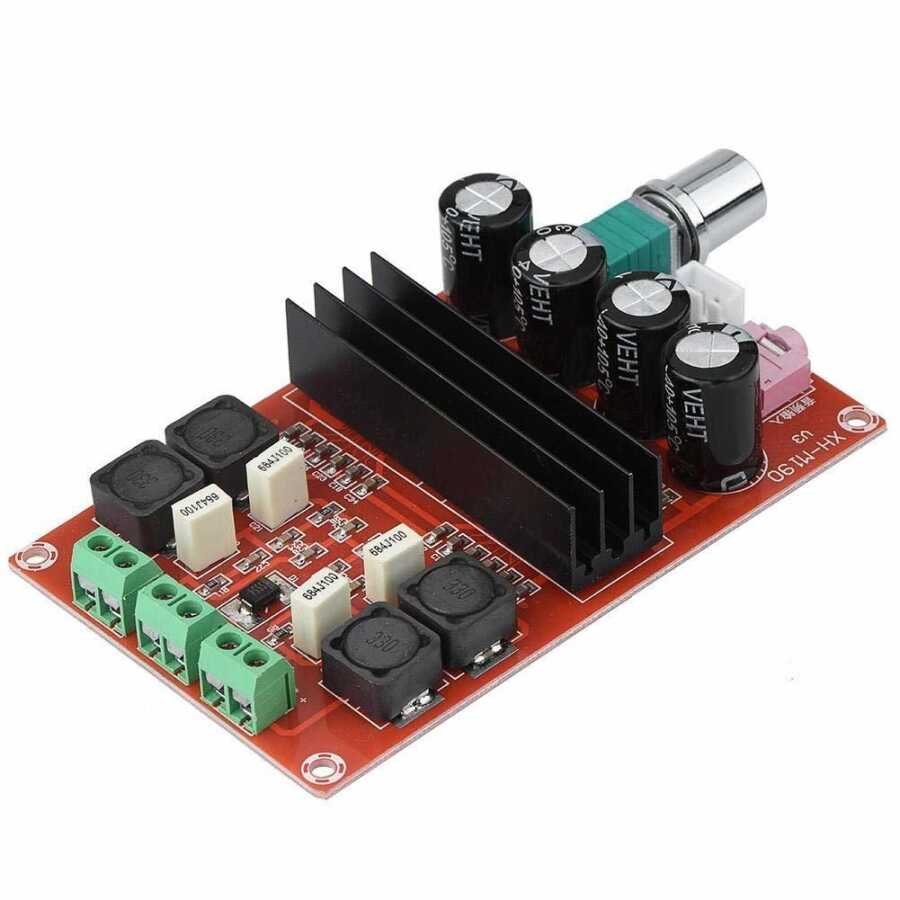

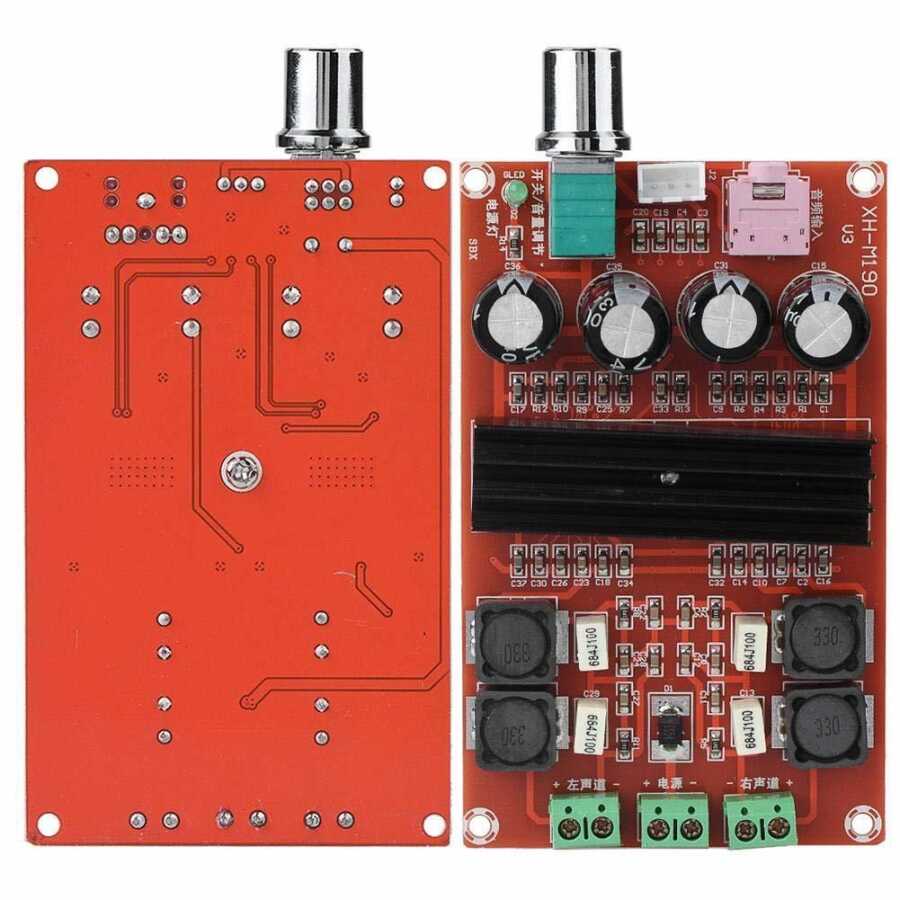

TPA3116D2 2*100W Dual Channel Stereo Digital Amplifier

  TPA3116D2 2*100W Dual Channel Stereo Digital Amplifier

 This amp circuit, which you can supply with a source between 12-24V, allows you to get a quality sound output with high power. It can be used with 2 speakers with a maximum power of 100W.

• TPA3116 stereo audio power amplifier chip
• Sound quality is very good, strong amplification power.
• Dual channel 2*100 W, high efficiency and low heat.
• Supported by DC, 12-24 V, wide input voltage.
• Applicable speaker impedance: 4-8 ohms.
• Plug in the power supply and ensure that the speaker box, Enjoy pure digital music!



Technical Specifications:

• Supply Voltage: DC 12-24 V
• Chip: TPA3116
• Channel type: Two-channel Stereo Output
• Power: 2*100 W
• Input Impedance: 51 K*2
• Output Match: 4-8 ohms
• Audio Output: Terminals
• Frequency Response Range: 14-100 KHz
• SNR: 100dB
• PCB Board Size: 105 * 65 * 23mm / 4.13 * 2.56 * 0.9 inches (L * W * H)
• Weight: 81 g / 8.01 oz
• Package Size: 13.5 * 11 * 5 cm / 5.31 * 4.33 * 1.97in (L * W * H)
• Packing weight: 140g / 4.94 oz Notice: This amplifier is powered by DC power installed (DC12-24V), better use high performance power switch. Do not use a transformer!
