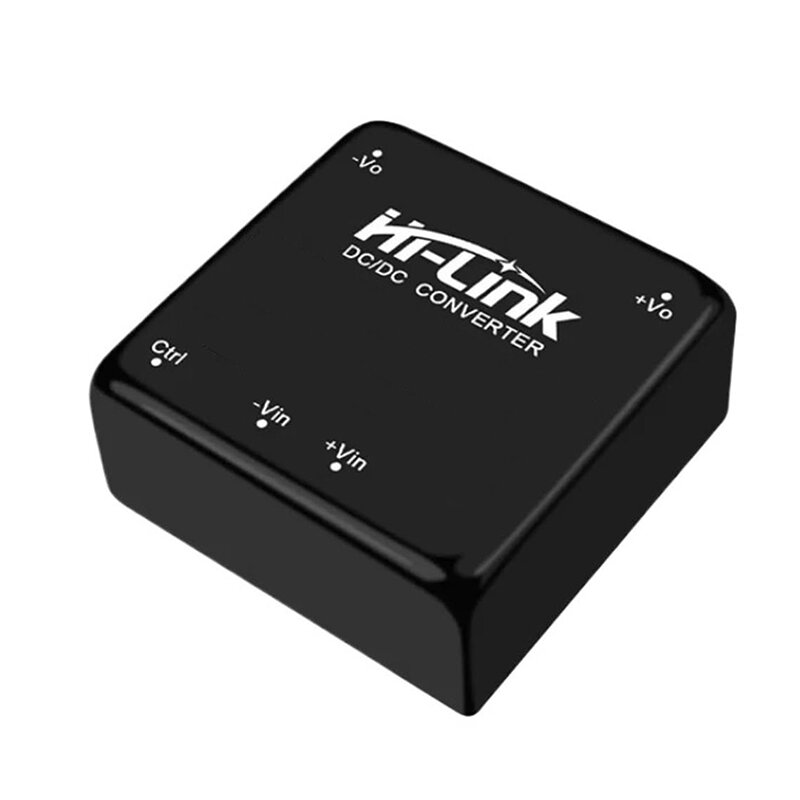

Name: URB2424YMD-10WR3 DC-DC 10W 9-36V Input / 24V Output Voltage Converter
Brand: Hi-Link
SKU: KOM.TFO.10.000104
Price: 778.82 TRY
Availability: InStock

URB2424YMD-10WR3 DC-DC 10W 9-36V Input / 24V Output Voltage Converter

Hi-Link Dc-Dc voltage converter is a voltage converter used to fix the input voltage within a certain voltage range. These types of voltage converters are used when we want to reduce, raise or stabilize the input voltage.

The input and output voltages of the product are stated in the product name and technical specifications. Please select the product by checking the input and output voltage values.

Transmission efficiency is 91%. It has short circuit protection. Wide supply voltage range (4:1).

It has a long-lasting design. Very low power consumption when idle (0.036W)

Technical Specifications

Input Voltage: 9 - 36VDC
Maximum Input Current: ≤0.4
Output Voltage: 24VDC
Recommended Output Current: 416 mA
Output Power: 10W
Isolation Voltage: 1500V
Operating Temperature Range: -40° ~ +85°C
Package Type: SIP
Dimension: 25.4mm x 25.4mm x 11.7mm

URA24XXYMD-SEMA

Typical Circuit Connection

URA48XXYMD-DEVRE
