VHM-000 Lithium Battery - Battery Charge Control Circuit 6-60V
VHM-000 battery and battery charge control module protects your 6-60v rechargeable products from overload. It is a card that protects you from charging and discharging. The continuous charging current of this circuit, which is very simple to use, is 8A and the control current is 30A.

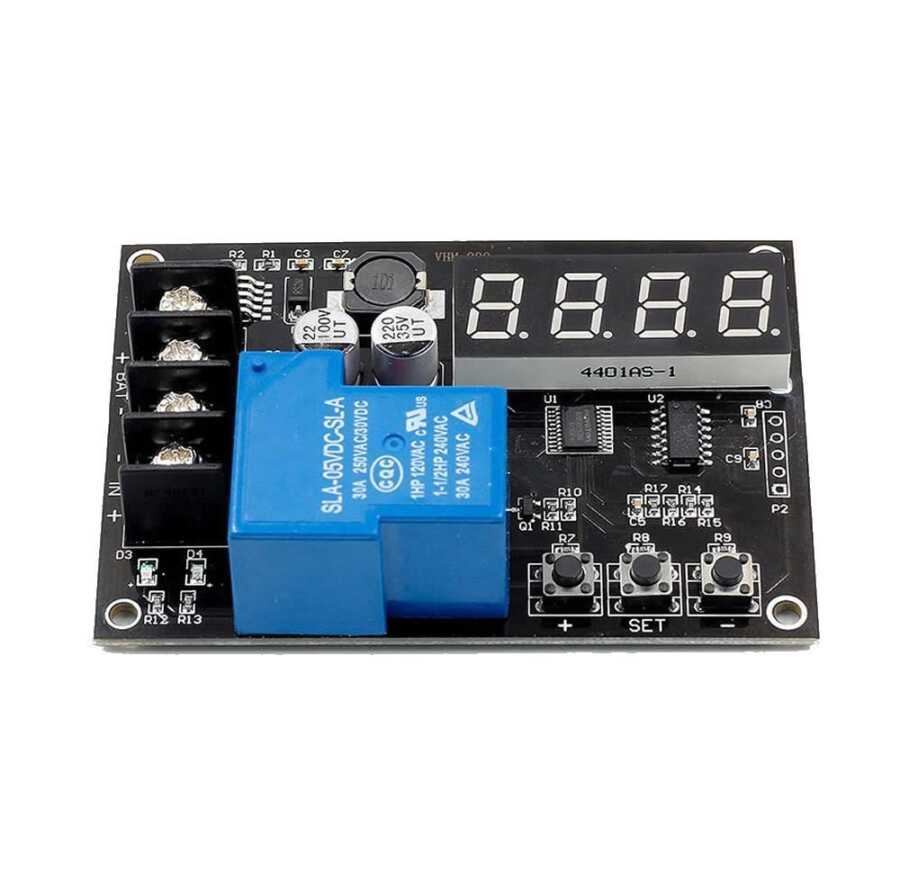

It is controlled with three buttons on the product.
+ determines the upper voltage limit. After pressing the + key, the upper voltage value is set by pressing the set key.
The lower voltage limit is determined with -. - After pressing the key, the lower voltage value is set by pressing the set key.
Technical Specifications:
- Model: VHM-000< /LI>
- Control voltage: DC 6-60 V
- Control current: max 30A
- Continuous Charging Current: 8A
- Voltage tolerance: +/ -0.1 V
- Application range: 6-60 V battery

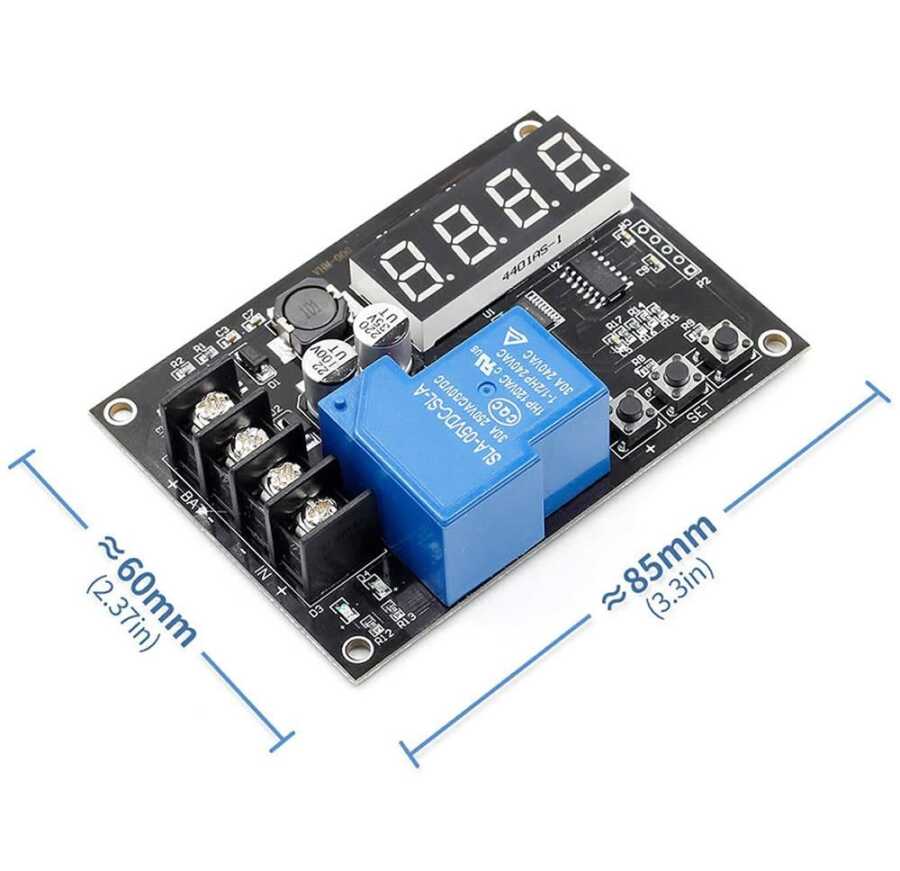

- Dimension: 84*60*23mm
