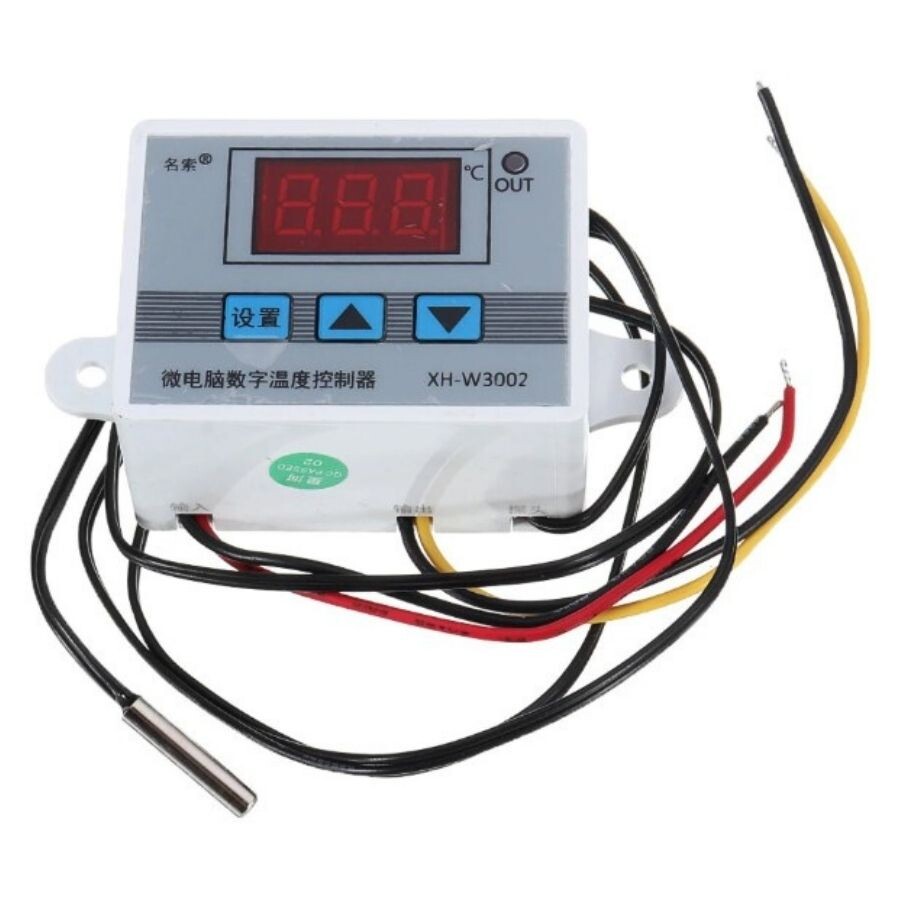

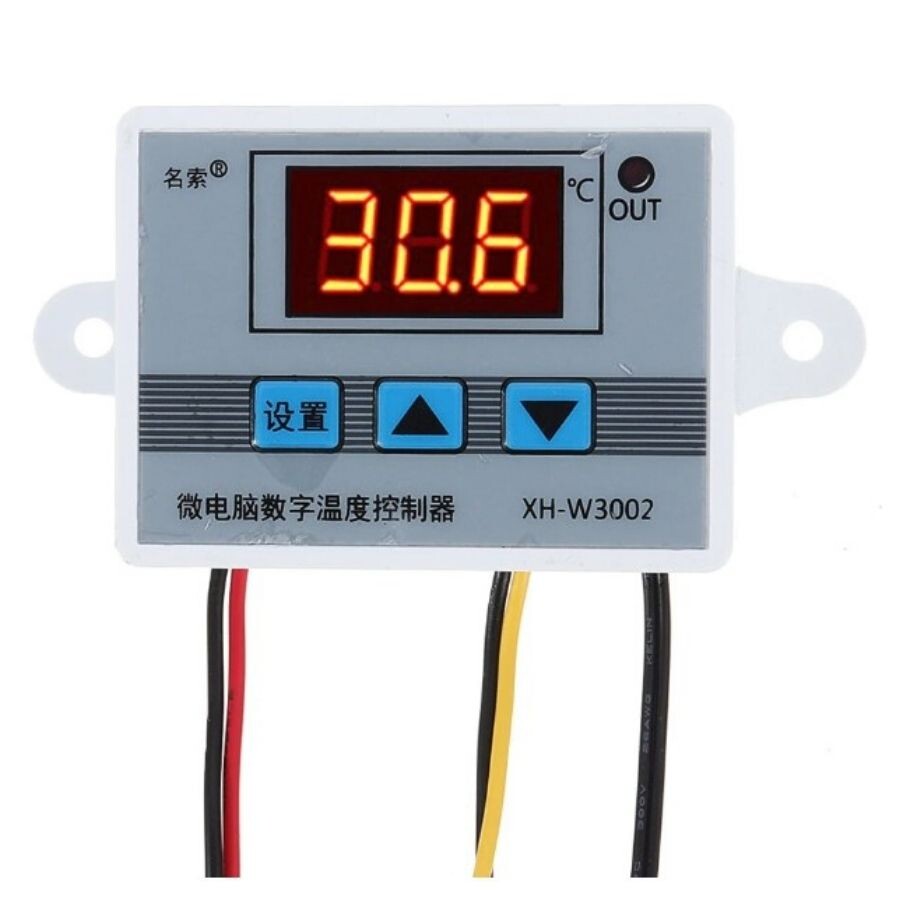

W3002 24V DC Digital Thermostat
The W3002 24V DC Digital Thermostat is a high-precision temperature measurement and control device. It offers a high temperature control accuracy of 0.1℃. The temperature control range is between -50℃ and 110℃. It includes a 1M probe made of waterproof and corrosion-resistant stainless steel. It has 4 different modes. You can find the model descriptions below.
Features
- Product model: XH-W3002
- Temperature range: -50~110°C
- Temperature control range: -50~110°C
- Temperature measurement accuracy: +-0.2 °C
- Temperature control Accuracy: +-0.1 °C
- Temperature sensor: NTC10K (B3950) 1 meter waterproof probe
- Supply voltage: DC12V
- Output power: DC24V: 240W

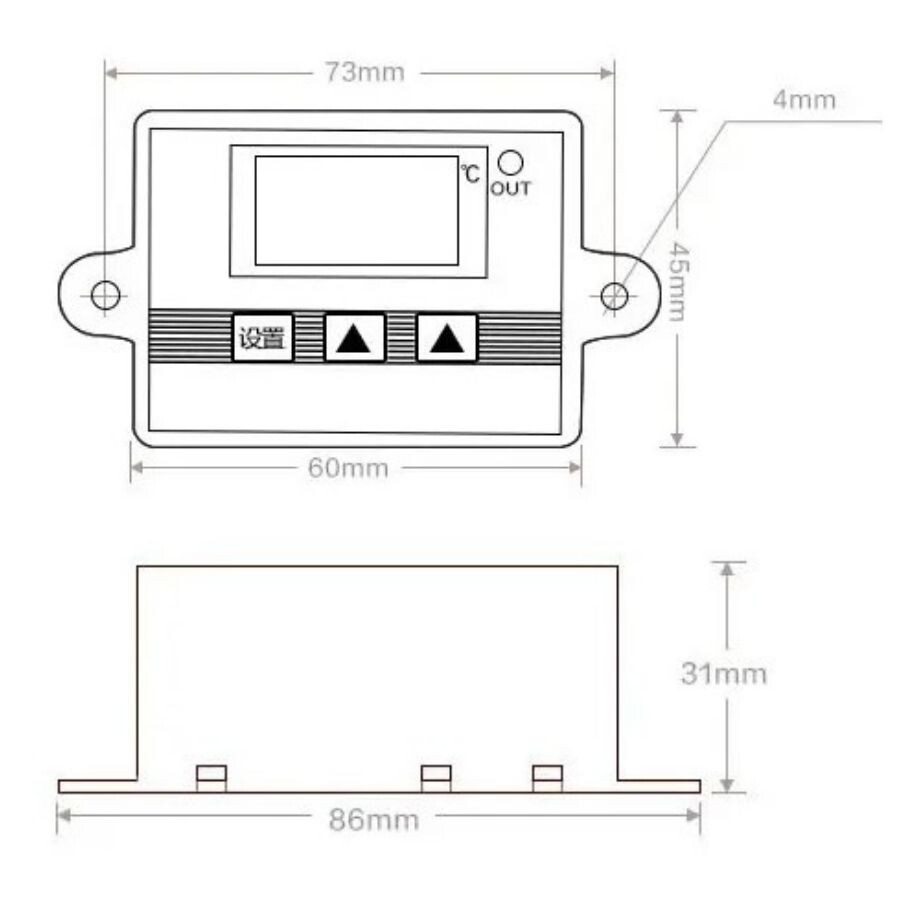

- Dimensions: 60 x 45 x 31mm
XH-W3002 Usage
| Code | Code description | Interval setting | Factory setting |
| P0 | Initial temperature | -50~110°C | 25 |
| P1 | Stationary temperature | -50~110°C | 40 |
| P2 | Temperature correction | -10~10°C | 0°C |
| P3 | Delayed start | 0-10 minutes | 0 |
Connection Diagram
