W3230 Thermostat 24V Temperature Controller with Relay Output
Product code :
RLK.SCK.01.000016
172,00
TL
+
VAT
206,40
TL
Notify Me When It Arrives
172,00
TL
+
VAT
206,40
TL
Add to Favorite
10+
RecommendCommentAlarm Price
W3230 Thermostat 24V Temperature Controller with Relay Output

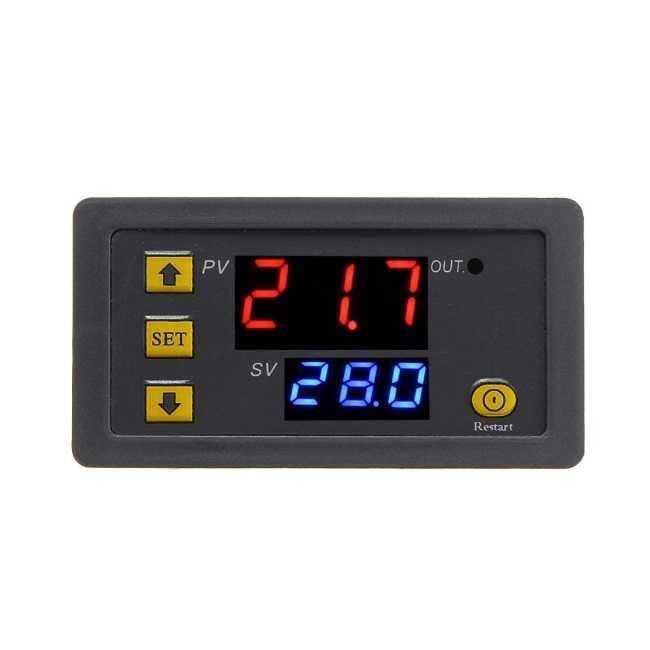

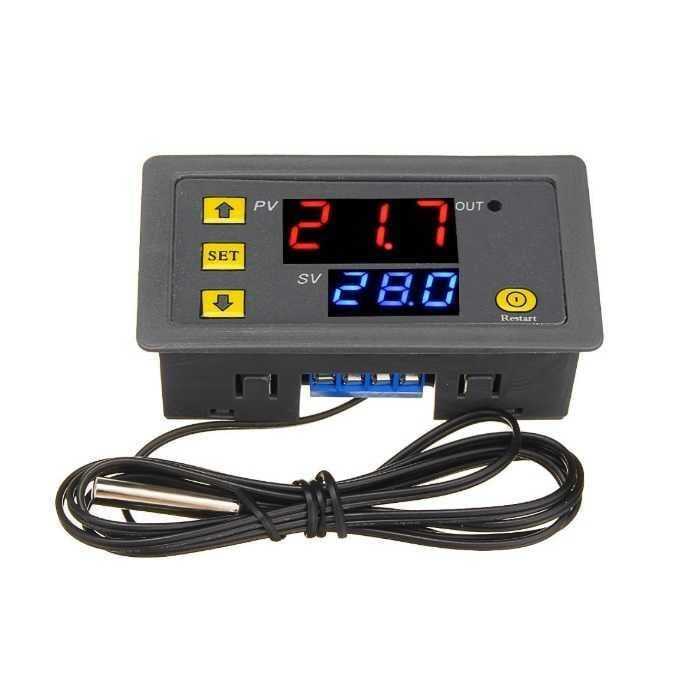

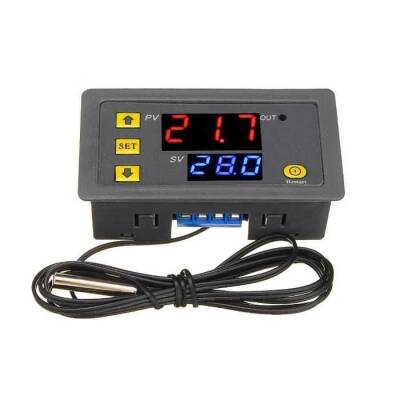

This module, which measures the temperature value in the environment thanks to the ntc on it and turns the relay on or off with the temperature data obtained, can be used in your smart home projects, incubators. You can use it in temperature controlled processes. It is controlled and values are entered using 4 buttons on the product.
Specifications:
- Operating Voltage: 24VDC
- Temperature control range:-55°C-120°C
- Resolution rate: 0.1°C (-9.9-99.9); 1°C (other range)
- Display color: red/blue
- Sensor: NTC10K waterproof sensor
- Output: relay contact capacity 10A/220V/ 20A 12 V

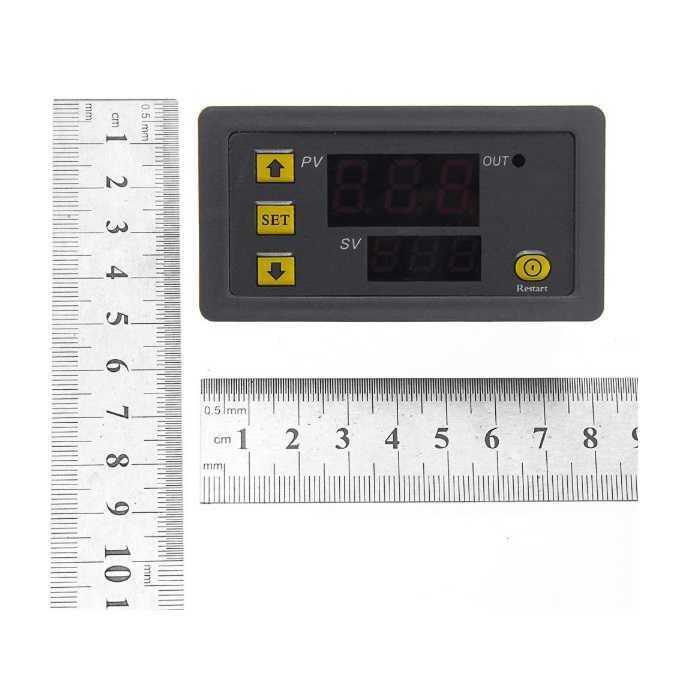

- Size: 79mm * 43mm * 26mm
