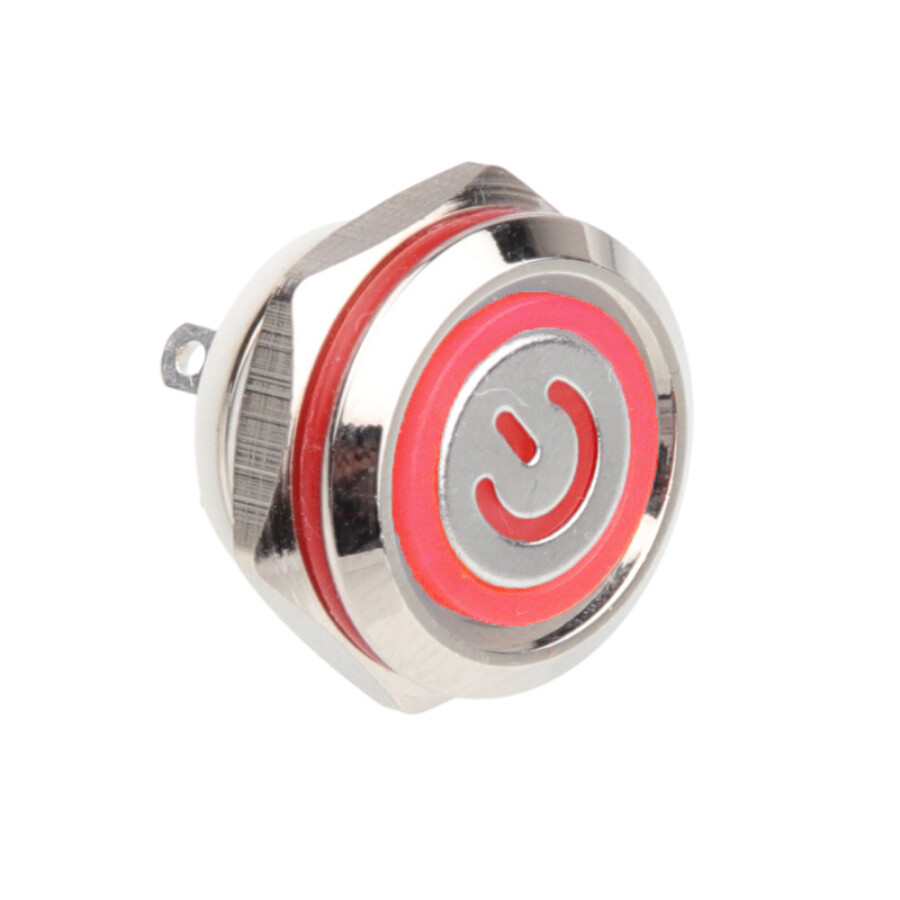

WD12C1-Pin-P1-EC 12mm Flat Spring Illuminated Metal Button - Red

12mm metal button is a product with IP67 water resistance that you can use in various industrial applications, electronic projects, mass production projects. It is made of stainless steel. The product is sent with a sealing gasket.

Because it is stainless steel and has IP 67 protection, metal buttons are suitable for outdoor and indoor use. They are preferred in places where long-lasting use is desired due to these features. In addition, they have a much longer service life than plastic button types in terms of button press structure. It has a life of 100,000 presses.

Technical Specifications:

Operating Method: Spring
Mounting Diameter: 16mm
Material: Stainless Steel
Protection Level: IP67
Voltage: 3-36V
Current: 50mA
Switch Contacts: 1NO
Electrical Working Life: >50,000
Pressing Life: 100,000
Wiring: 26AWG
Operating Temperature: -30 °C ~ 85 °C

For more detailed information, you can access the detailed technical documentation of the product by clicking on the link below.

Special symbols and logos are produced for you. For special productions, you can send an e-mail to info@motorobit.com.

Datasheet
