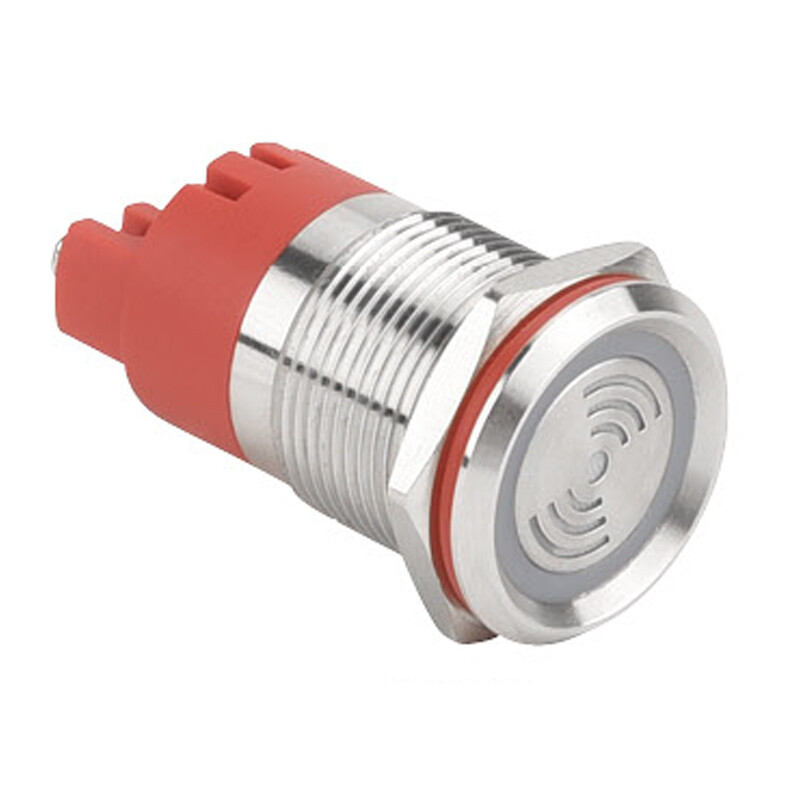

WD19F-P0-S220VR LX 19mm Fixed Sound Illuminated Metal Buzzer - 220V

This 19mm metal buzzer is IP67 waterproof and dustproof, suitable for use in various industrial applications, electronics projects, and mass production projects. It is made of stainless steel and ships with a sealing gasket.

Because it is stainless steel and has an IP67 protection rating, the metal buzzer is suitable for both indoor and outdoor use. These features make them preferred in locations where long-lasting use is desired.

Metal Buzzer Types

Metal buzzer types are divided into two types, Intermittent and Constant, depending on their usage.

Intermittent beeps produce a periodic beep when voltage is applied, and a red light is illuminated.
Fixed beeps produce a continuous beep and a red light is illuminated.

Another factor to consider when choosing a product is the operating voltage. 12V, 24V, and 220V types are available.

These details required when selecting a product are clearly stated in the product name. Please pay attention before purchasing.

Technical Specifications:

Operating Mode: Constant Sound
Mounting Diameter: 19mm
Operating Voltage: 220V AC
Operating Current: 15~35mA
Audio Output: 80~100dB
Frequency: 2300±300Hz
Material: Stainless Steel
Cable Connection Type: Screw
Protection Level: IP67
Electrical Lifespan: >40000h
Operating Temperature: -30 °C ~ 85 °C

For more detailed information, you can access the product's detailed technical documentation by clicking the link below.

Production is made with your own special symbols and logos. For special production orders, please send an e-mail to info@motorobit.com.

Datasheet
