WDQV-104J-P5 100nF 0.1uF 100V 5mm Drop-Type Polyester Capacitor
Product code :
KOM.KND.03.000169
2,15
TL
+
VAT
2,58
TL
Notify Me When It Arrives
2,15
TL
+
VAT
2,58
TL
Add to Favorite
10+
RecommendCommentAlarm Price

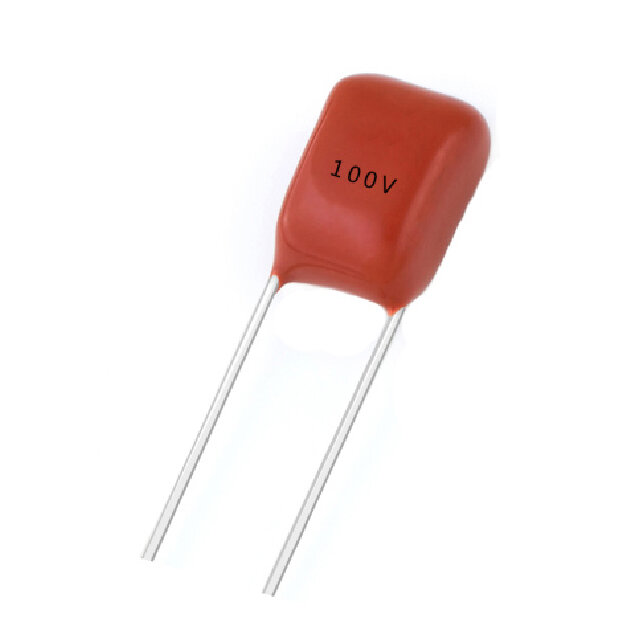

WDQV-104J-P5 100nF 0.1uF 100V 5mm Drop-Type Polyester Capacitor
A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field. 100V 0.1uF 5% polyester capacitor.
Applications
Blocking, bypassing, filtering, and timing
High-frequency coupling and decoupling of fast digital circuits
Noise suppression in low-voltage applications
High-impact load
High-temperature operation
Technical Specifications
| Capacitor Type | Polyester Capacitor |
| Manufacturer Product Code | W222A104JD5L00A00A |
| Reference Standard | GB/T 7332 (IEC 60384-2) |
| Climatic Category | 55/105/21 |
| Value | 0.1uF (100nF) |
| Max. Operating Voltage | 100V |
| Leg Spacing | 5mm |
| Voltage Proof | 1.4UR (5s) |
| Dissipation Factor | < 1.0% (20°C, 1kHz) |
| Tolerance | %5 |
| Operating Temperature Range | -55°C ~ 105°C |
