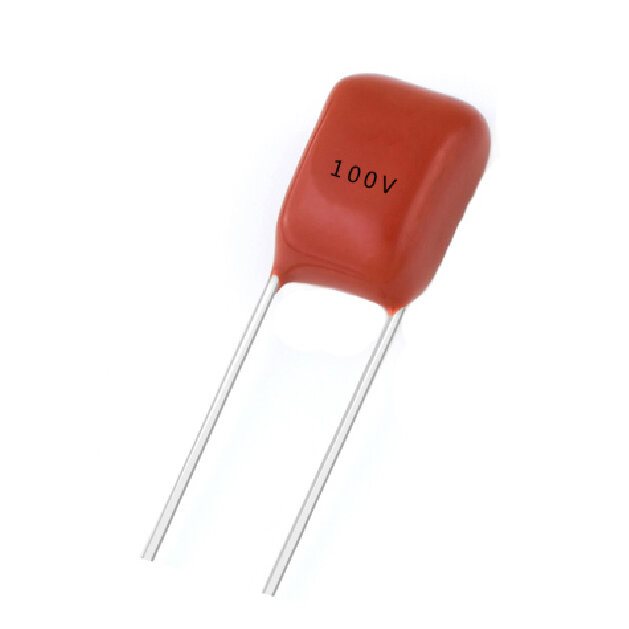

WDQV-332J-P5 3.3nF 100V 5mm Drop-Type Polyester Capacitor
Product code :
KOM.KND.03.000167
1,72
TL
+
VAT
2,06
TL
Notify Me When It Arrives
1,72
TL
+
VAT
2,06
TL
Add to Favorite
10+
RecommendCommentAlarm Price
WDQV-332J-P5 3.3nF 100V 5mm Drop-Type Polyester Capacitor
A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field. 100V 3.3nF 5% polyester capacitor.
Applications
Blocking, bypassing, filtering, and timing
High Frequency coupling and decoupling of fast digital circuits
Noise suppression in low voltage applications
High pulse load
High temperature operation
Technical Specifications
| Capacitor Type | Polyester Capacitor |
| Manufacturer Product Code | W222A332JD5L00A00A |
| Reference Standard | GB/T 7332 (IEC 60384-2) |
| Climatic Category | 55/105/21 |
| Value | 3.3nF |
| Max. Operating Voltage | 100V |
| Leg Spacing | 5mm |
| Voltage Proof | 1.4UR (5s) |
| Dissipation Factor | < 1.0% (20°C, 1kHz) |
| Tolerance | %5 |
| Operating Temperature Range | -55°C ~ 105°C |
