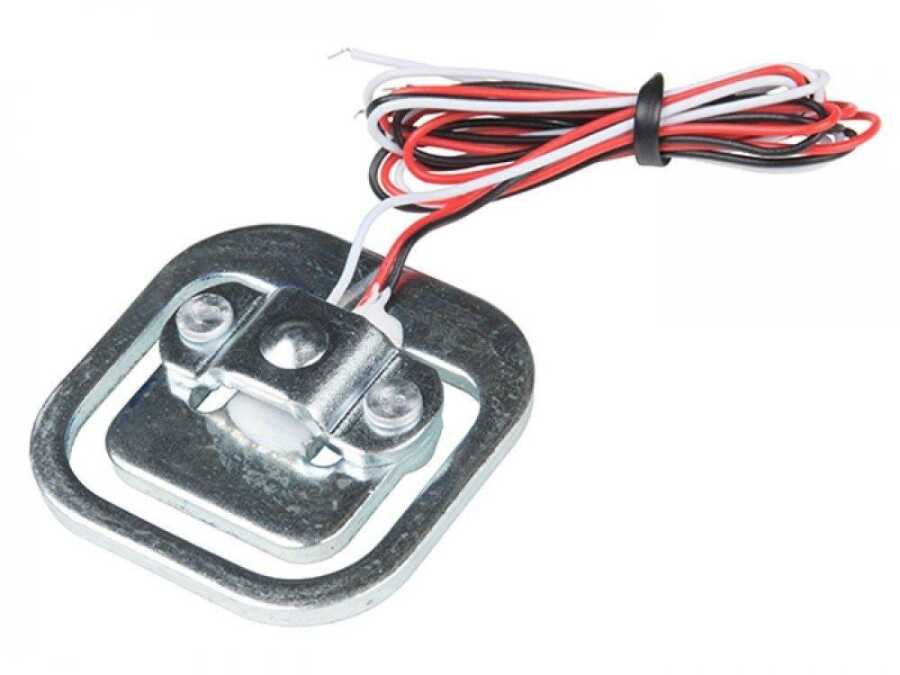

Weight Sensor 50 kg - Loadcell

 Weight Sensor 50 kg - Loadcell

It is a semi-bridged weight sensor that you can use for general purposes in your Arduino or Raspberry Pi projects. It can use more than one sensor to increase its capacity.

To see the types of weight sensors, click .

Technical Specifications:

• Dimension: 34x34x8mm
• Capacity: 50 kg
• Margin of error: 0.2%
• Data precision: 1±0.15 mv/v
• Linearity margin of error: 0.2%
• Repeatability : 0.1%
• Drop: 0.2%
• Diffusion (%F.S/3min): 0.1
• Zero Drift (%F.S/1min): 0.1
• Input Resistance (Ω): 1000±10
• Output Resistance (Ω): 1000±10
• Trigger Voltage (V): 5~10
